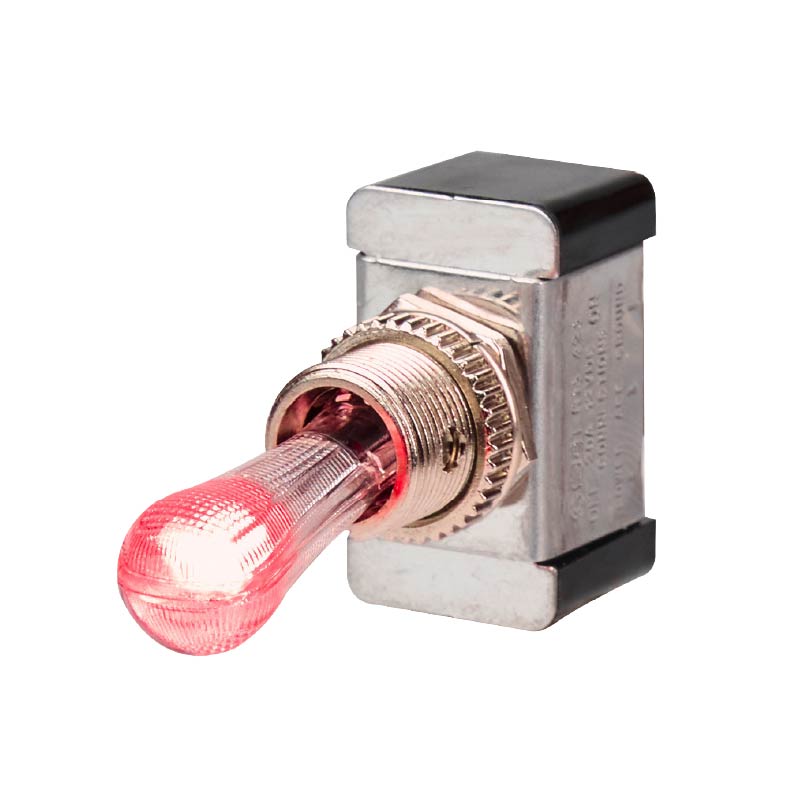

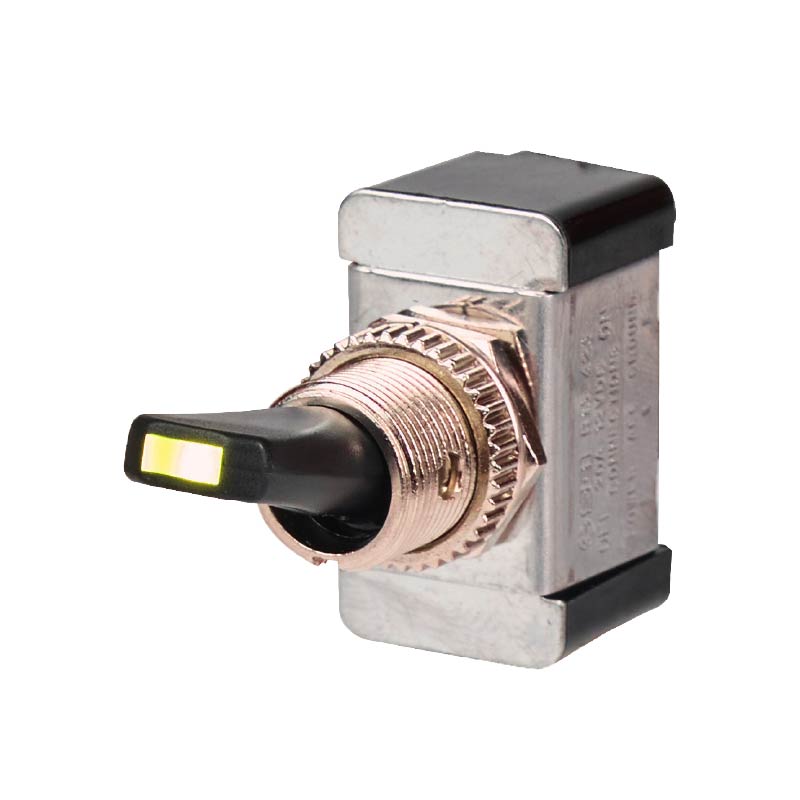

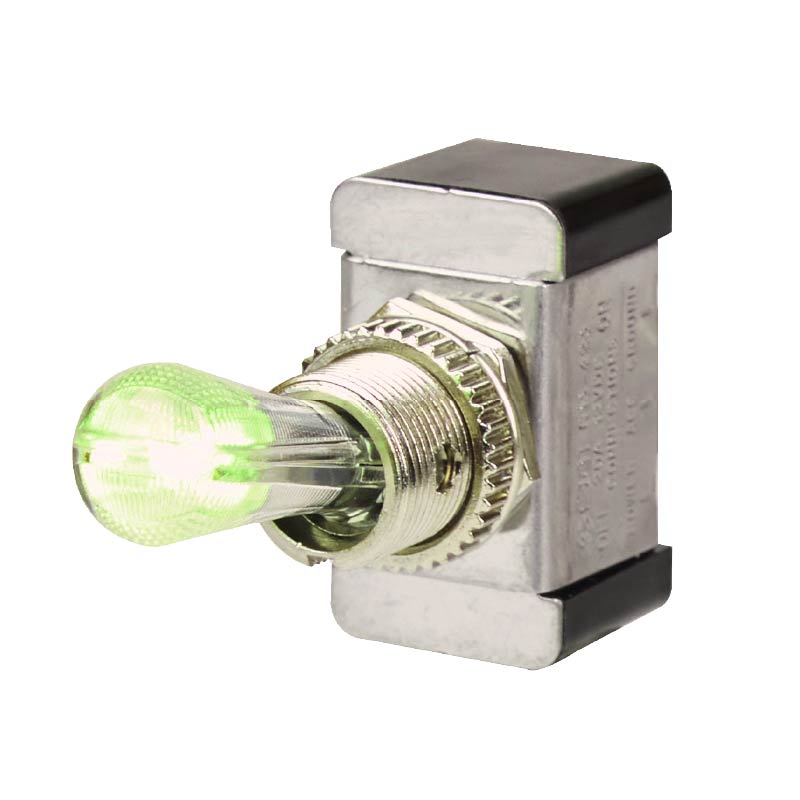

R13-423 illuminated ON ~ OFF toggle switches available with red and green LED or Green LED for ON and no illumination for OFF. The flat lever style baton or rounded style baton shapes offer a precise lever action and a clear switch position at a glance. Ideal for use in both industrial and Automotive applications including RVs, specialist vehicles and marine. Terminated with 6.3 x 0.8mm Quick connection and supplied with a Knurled dress ring, hexagonal nut and spring washer.

  • Rated up to 30A 12VDC, 15A 24VDC
  • contact resistance 50m ohm max
  • Panel cut-out 12mm diameter
  • Supplied with Keyway
  • Choice of Red and Green or Green LED illumination
  • Either full lever or end of lever illumination
  • Operating temperature -20~85°C
  • Available with Quick Connect 6.3 x 0.8 mm
  • Insulation resistance 1500V 1 minute

20A 12VDC/10A 24vDC

12 mm

3P SPST, ON-OFF, 4P DPDT ON-OFF-ON

Quick connect 6.3 x 0.8mm

Specialist Vehicle - Markets at Lucid Electronics

Ideal for automotive

Enquire Now / Request a SampleView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Contact resistance
Insulation resistance
Dielectric strength
Circuit
Lever Type
Terminal Type
Operating Temprature
Datasheet
R13-423-L1 20A 12VDC / 10A 24VDC 3P S.P.S.T. ON-OFF 50m ohm maximum DC 500V 100M ohm minimum AC 1500V 1 Minute On~Green illumination, Off~ Red illumination Plastic with tip illumination Q.C. 6.3 x 0.8 mm -25°C~85°C pdf
R13-423-L1 20A 12VDC / 10A 24VDC 3P S.P.S.T. ON-OFF 50m ohm maximum DC 500V 100M ohm minimum AC 1500V 1 Minute On~ Green illumination, Off ~ None Plastic with tip illumination Q.C. 6.3 x 0.8 mm -25°C~85°C

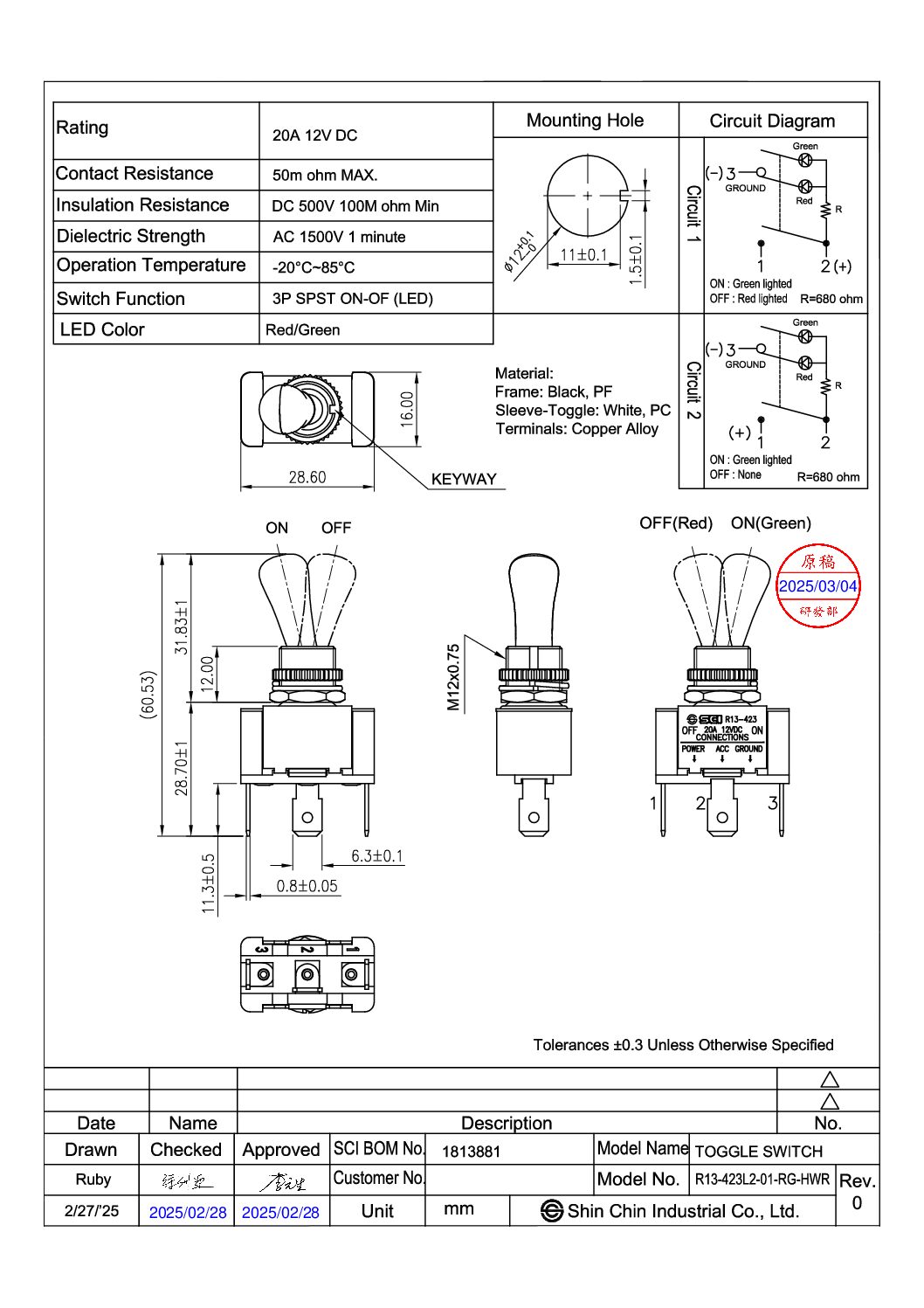

R13-423-L2 20A 12VDC / 10A 24VDC 3P S.P.S.T. ON-OFF 50m ohm maximum DC 500V 100M ohm minimum AC 1500V 1 Minute On~ Green illumination, Off ~ Red Illumination Plastic with full lever illumination Q.C. 6.3 x 0.8 mm -25°C~85°C pdf
R13-423-L2 20A 12VDC / 10A 24VDC 3P S.P.S.T. ON-OFF 50m ohm maximum DC 500V 100M ohm minimum AC 1500V 1 Minute On~ Green illumination, Off ~ None Plastic with full lever illumination Q.C. 6.3 x 0.8 mm -25°C~85°C

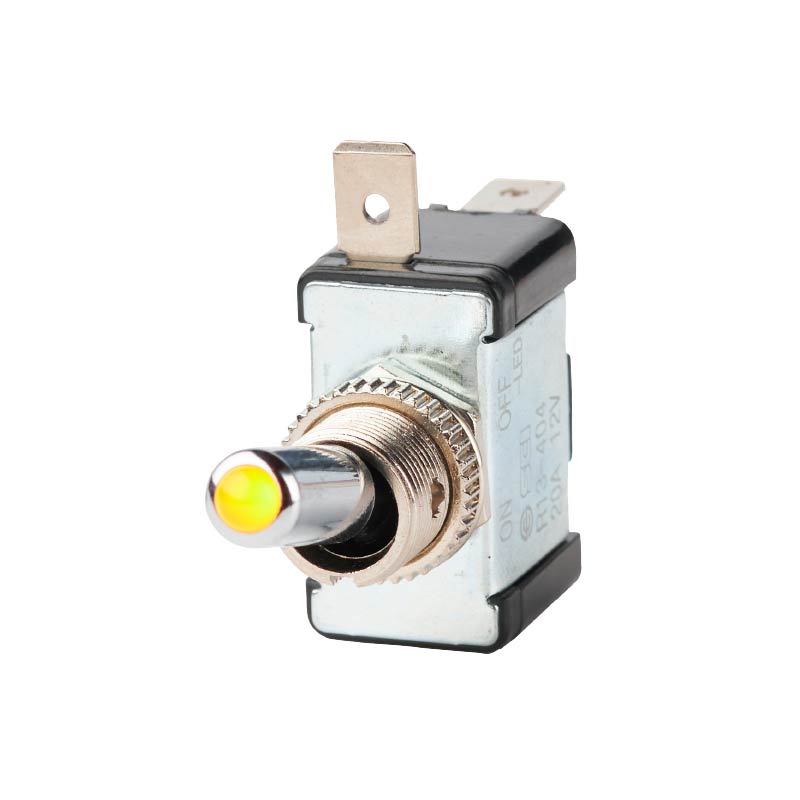

R13-404AL2-01-HWR 30A 12VDC / 15A 24VDC 3P S.P.S.T. ON-OFF (LED Dependent) 50m ohm maximum DC 500V 100M ohm minimum AC 1500V 1 Minute On~ Green illumination, Off ~ None Aluminium with illumination Q.C. 6.3 x 0.8 mm -25°C~85°C pdf
R13-404DL2-01-HWR 20A 12VDC / 10A 24VDC 4P S.P.D.T. ON-OFF-ON 50m ohm maximum DC 500V 100M ohm minimum AC 1500V 1 Minute On~ Green illumination, Off - None, On Red illumination Aluminium with illumination Q.C. 6.3 x 0.8 mm -25°C~85°C pdf
Electrical Rating up to 30A 12VDC
Dielectric strength AC1500V 1 minute
Function Off-On
Poles / Positions 3P SPST
Termination Quick Connect 6.3 x 0.8 mm
Panel cut-out 12 mm
LED colours Red / Green
Contact resistance 50m ohm max
Insulation resistance DC500V 100M ohm Min
Accessories Spring Washer, Knurled Nut, Hexagonal Nut

Specifications subject to change without notice.
