R3-76 10 Way ATO / ATC (Standard) Fuse Blocks
Blade style fuse blocks for use with ATO / ATC standard size fuses featuring a clear protective cover designed to protect the fuses from dust and moisture. Configured in a 10 way block with Red LED indicators to highlight where a fuse has failed and needs to be replaced. The fuse block can handle a maximum of 100A and a maximum of 30A per circuit.
- Choice of fuse block layout
- Torque Rating allows fuses to be held firmly in place
- Maximum input of 100A
- Dust and moisture protection cover
- Ten ATO/ ATC (standard) blade fuse capacity
- Operating temperature -35°C to +85°C
30A maximum per circuit
Moisture and dustproof cover
Input wiring 4-6AWG
Output wiring 10-16AWG
-30°C to +85°C
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Fuse specification
|
Number of Fuse connection points
|
Input Wire Size
|
Output Wire size
|
LED Indication
|
Dimensions
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|

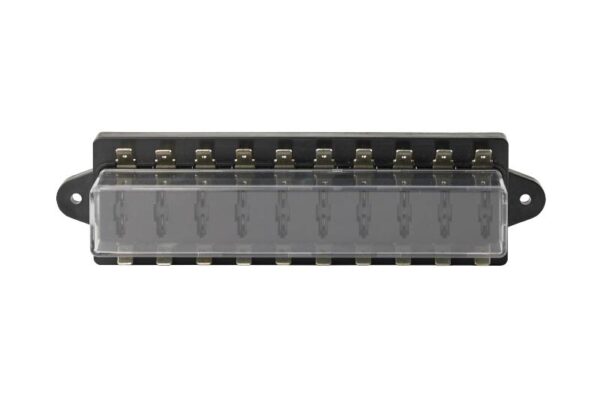

| R3-76D | 32VDC | ATC (Standard) | 10 way strip horizontal | 10 AWG | 10 AWG | Red LED | 201 x 52.2 x 40.5mm | |

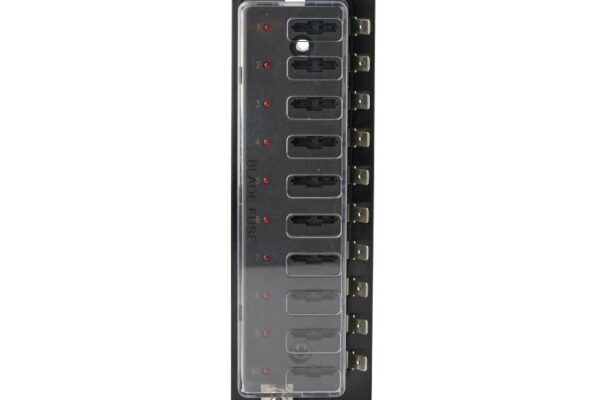

| R3-76C | 32VDC | ATC / ATO (Standard) | 10 way strip vertical | 4-6 AWG | 12-16 AWG | Red LED | 164 x 62.5 x 40.5mm | LC-JBM201 Datasheet |

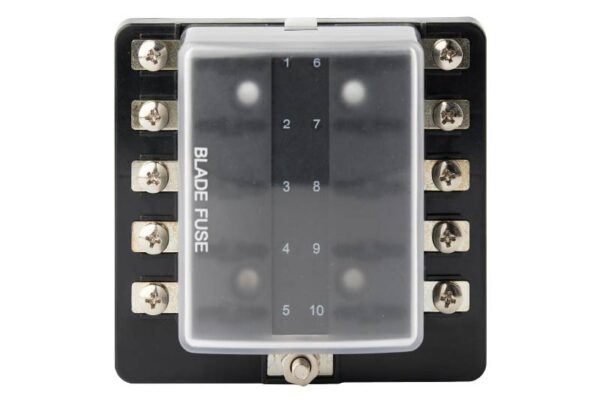

| R3-76-07 | 32VDC | ATC / ATO (Standard) | 10 way block (2x5) | 4-6 AWG | 12-16 AWG | Red LED | LC-JBM201 Datasheet | |

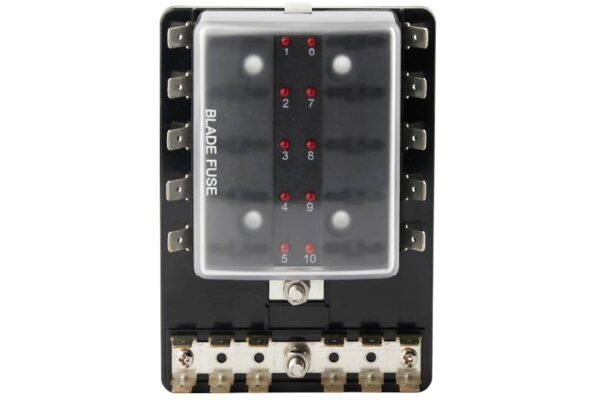

| R3-76B-01 | 32VDC | ATC / ATO (Standard) | 10 way block (2x5) | 4-6 AWG | 12-16AWG | Red LED | LC-JBM201 Datasheet | |

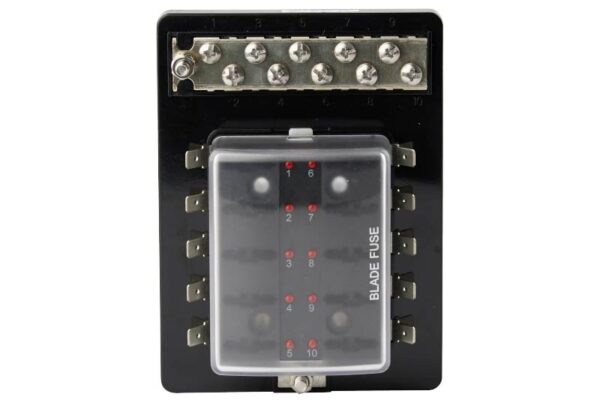

| R3-76B-01-07 | 32VDC | ATC / ATO (Standard) | 10 way block (2x5) | 4-6 AWG | 12-16 AWG | Red LED | 103.3x138.3x40.5mm | LC-JBM201 Datasheet |
| Input terminals | M5 threaded studs (100A Max) |
| Output terminal rating | 30A |
| Input wire | 4-6 AWG |
| Output Wire | 10-16AWG |
| Torque Rating | 2.25nM (20in-lb) Max |
| Temperature Rating | -35°C to +85°C |
| Rated Voltage | 32VDC |
Specifications subject to change without notice.
