SLM15 Self Locking Connectors

Home - Connectivity - Circular Connectors - SLM15 Self Locking Connectors

IP68 Quick Connect / Release Plug & Sockets

The compact SL series IP68 self locking connectors feature a quick push to lock, and twist to release design for rapid installation. They come in plug and socket configurations for inline cable and panel mounting, are waterproof, dustproof and UV-resistant for demanding industrial and outdoor environments.

They are well suited for use in lighting, agricultural, renewable energy, robotics, automation, industrial and applications.

The wider product family also includes M19, M23, M25 and screwless connection types cable to cable and cable to panel.

  • 2 to 4 pin Gold plated contacts for power and signal applications
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • Screw and solder options up to 10A / 450V
  • Cable range 2.5mm to 7mm for up to 1sqmm wire
  • PA66 UV resistant Nylon with locking ring
  • Supplied as mating pairs for value and convenience
  • Cable, rear panel and flange mount types
  • Quick push to connect, twist to release - Anti-vibration
  • UL, TUV, CE approvals

15.7mm Panel Cutout

IP66/67/68 Rated

IP68 Mated / IP65 Dustcap

2 – 4 Pins

10A

450V

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Pins
Connection Type
Female Part
Male Part
Dust Cap
Wire Size mmsq
Current Rating
Voltage Rating
Datasheet

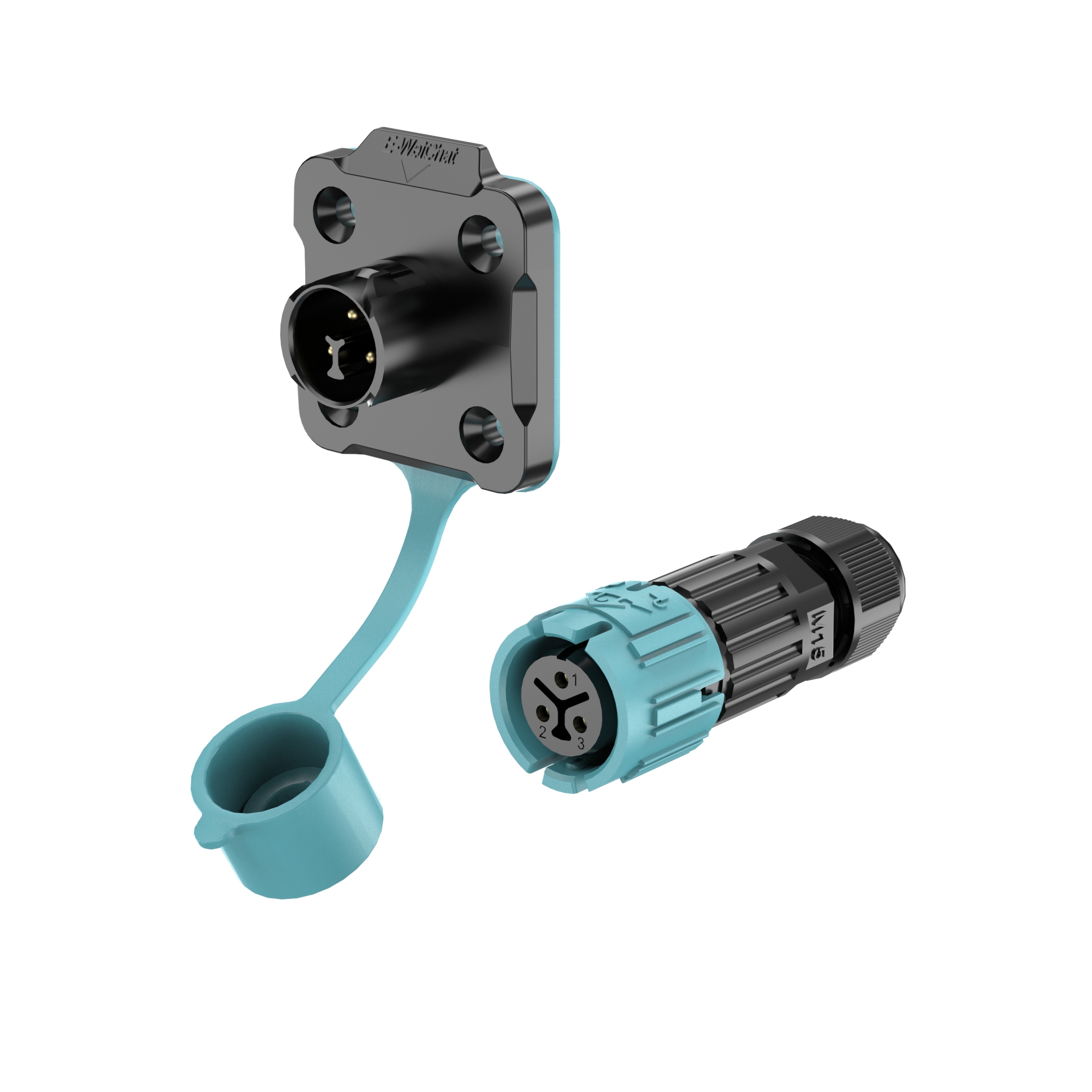

SLM15-xxPF-SC-0 2 - 3 Screw Flange Cable Yes 0.5 - 1.5 10A 450V
SLM15-xxPF-SC-1 2 - 3 Screw Cable Flange Yes 0.5 - 1.5 10A 450V
SLM15-xxPF-SO-0 2 - 3 Screw Flange Cable Yes 0.5 - 1.5 10A 450V
SLM15-xxPF-SO-1 2 - 3 Screw Cable Flange Yes 0.5 - 1.5 10A 450V

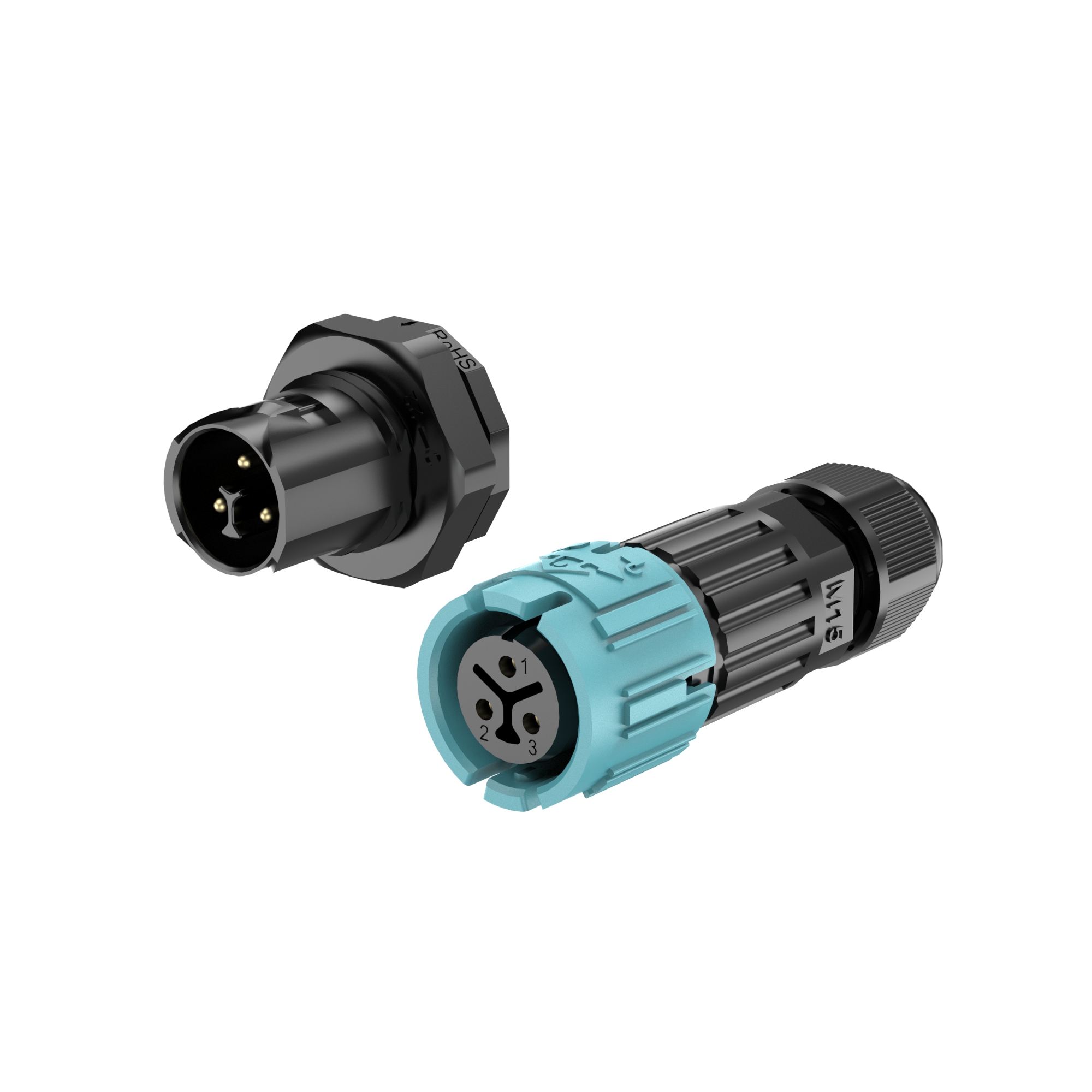

SLM15-xxPR-SC-0 2 - 3 Screw Front Panel Cable Yes 0.5 - 1.5 10A 450V
SLM15-xxPR-SC-1 2 - 3 Screw Cable Front panel Yes 0.5 - 1.5 10A 450V
SLM15-xxPR-SO-0 2 - 3 Solder Front Panel Cable Yes 0.5 - 1.5 10A 450V
SLM15-xxPR-SO-1 2 - 3 Solder Cable Front Panel Yes 0.5 - 1.5 10A 450V
SLM15-xxPC-SC-0 2 - 3 Screw Cable Cable No 0.5 - 1.5 10A 450V
SLM15-xxPC-SO-1 2 - 3 Solder Cable Cable No 0.5 - 1.5 10A 450V
SLM15-04PF-SO-0 4 Solder Flange Cable Yes 0.5 - 1.5 10A 450V
SLM15-04PF-SO-1 4 Solder Cable Flange Yes 0.5 - 1.5 10A 450V
SLM15-04PR-SO-0 4 Solder Front Panel Cable Yes 0.5 - 1.5 10A 450V
SLM15-04PR-SO-1 4 Solder Cable Front Panel Yes 0.5 - 1.5 10A 450V
SLM15-04PC-SO-0 4 Solder Cable Cable No 0.5 - 1.5 10A 450V
Unit of supply Male & Female pair (Panel / Flange mount includes silicon dust cap)
IP Rating IP68 to 1M/2hr (IP65 panel with dust cap)
Number of Pins 2 to 4
Connection Type Screw (2 & 3 pin) or Solder
Current Rating 10A
Rated Voltage 450V
Wire Size 1.5mmsq
Min - Max Cable Diameter (mm) 2.5 - 7.0
Temperature Range -40°C to +105°C
Mating cycles 1500
Material PA66 Nylon Flame and UV retardant
Panel Cutout 15.7mm

Specifications subject to change without notice.
