LP12 IP68 Connectors

Home - Connectivity - Circular Connectors - LP12 IP68 Connectors

Quick Connect / Release Plug & Sockets

The compact LP12 connectors (part of the LP series) feature a high-precision, key-way pluggable design with integrated self-locking push-lock and quick release mechanism. Supplied in a variety of PBT plastic and Zinc alloy metal housings, they are rated IP68 waterproof along with UV-resistant properties.

Supporting power or signal transmission they are ideal for demanding environments and well suited for use in aviation, communications, renewable energy, medical, robotics, automation, industrial appliances, LED displays and many more applications.

The wider product family includes additional sizes LP16, LP20, LP24 and LP28 with higher electrical ratings, alongside firbre optic, HDMI, RJ45 and USB-A/USB-C connection options.
  • 2 to 8 pin Gold plated contacts for power and signal applications
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • PBT Plastic / Zinc Allow & PBT Plastic / Zinc Alloy versions available
  • PBT material is UV resistant and Flame Retardant
  • Also available in White colour housings
  • Supplied as mating pairs for value and convenience
  • Screw and solder options up to 5A / 125V

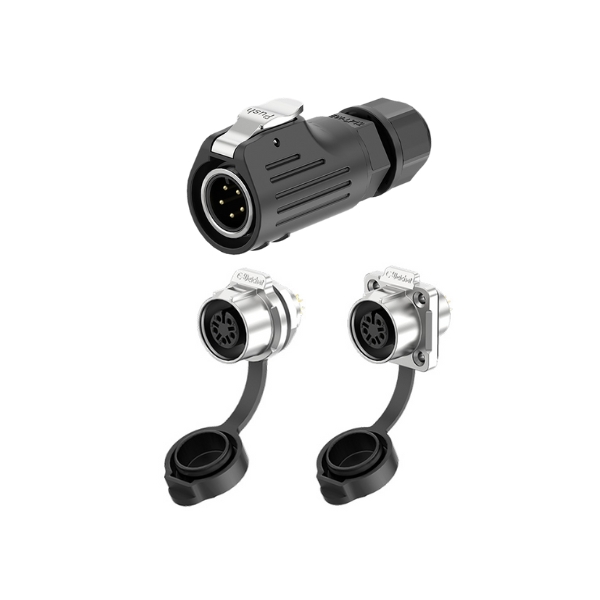

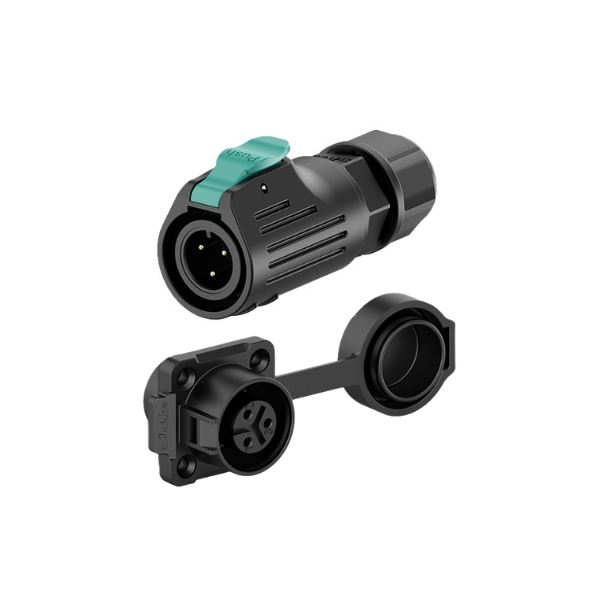

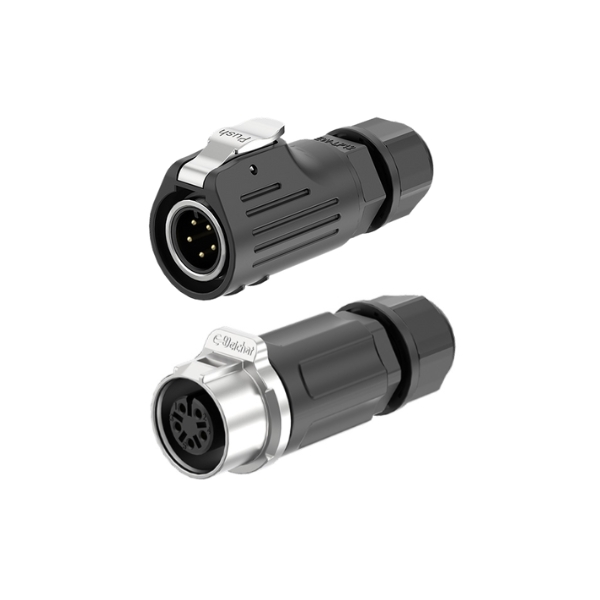

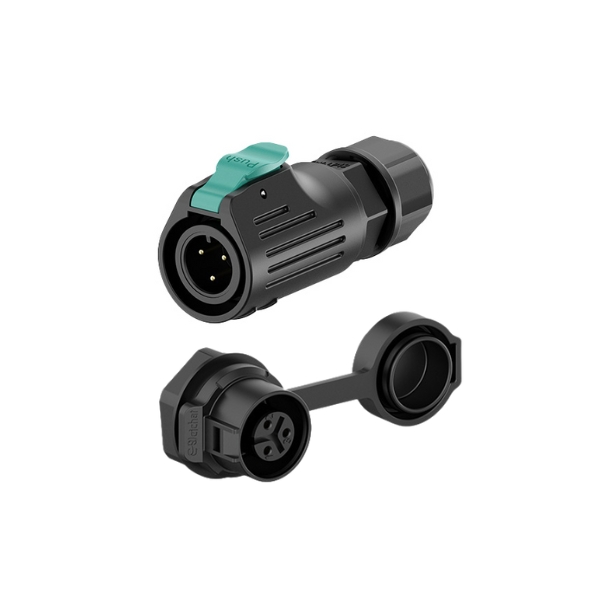

  • Cable, panel and flange mount types
  • Cable range 5mm to 7mm
  • Quick connect, push fit, press to release - Anti-vibration
  • Panel cut out 12mm with maximum connector diameter 23.2mm
  • UL, cUL, TUV, CE approvals

12mm Panel Cutout

IP66/67/68 Rated

IP68 Mated / IP65 Dustcap

2 – 8 Pins

5A 2 – 7 pin / 3A 7 – 8 pin

125V 2 – 6 pin / 100V 7 – 8 pin

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Pins
Connection Type
Female Part
Male Part
Dust Cap
Material
Current Rating
Voltage Rating
Datasheet
LP12-xxPC-SC-PL-0 2 - 3 Screw Cable Cable No PBT 5A 125V
LP12-xxPC-SC-ZP-0 2 - 3 Screw Cable Cable No PBT & Zinc Alloy 5A 125V
LP12-xxPC-SC-ZZ-0 2 - 3 Screw Cable Cable No Zinc Alloy 5A 125V
LP12-xxPF-SC-PL-0 2 - 3 Screw Flange Cable Yes PBT 5A 125V
LP12-xxPF-SC-PL-1 2 - 3 Screw Cable Flange Yes PBT 5A 125V
LP12-xxPF-SC-ZP-0 2 - 3 Screw Flange Cable Yes PBT & Zinc Alloy 5A 125V
LP12-xxPF-SC-ZP-1 2 - 3 Screw Cable Flange Yes PBT & Zinc Alloy 5A 125V
LP12-xxPF-SC-ZZ-0 2 - 3 Screw Flange Cable Yes Zinc Alloy 5A 125V
LP12-xxPF-SC-ZZ-1 2 - 3 Screw Cable Flange Yes Zinc Alloy 5A 125V
LP12-xxPP-SC-PL-0 2 - 3 Screw Panel Cable Yes PBT 5A 125V
LP12-xxPP-SC-PL-1 2 - 3 Screw Cable Panel Yes PBT 5A 125V
LP12-xxPP-SC-ZP-0 2 - 3 Screw Panel Cable Yes PBT & Zinc Alloy 5A 125V
LP12-xxPP-SC-ZP-1 2 - 3 Screw Cable Panel Yes PBT & Zinc Alloy 5A 125V
LP12-xxPP-SC-ZZ-0 2 - 3 Screw Panel Cable Yes Zinc Alloy 5A 125V
LP12-xxPP-SC-ZZ-1 2 - 3 Screw Cable Panel Yes Zinc Alloy 5A 125V
LP12-xxPC-SO-PL-0 2 - 6 Solder Cable Cable No PBT 5A 125V
LP12-xxPC-SO-ZP-0 2 - 6 Solder Cable Cable No PBT & Zinc Alloy 5A 125V
LP12-xxPC-SO-ZZ-0 2 - 6 Solder Cable Cable No Zinc Alloy 5A 125V
LP12-xxPF-SO-PL-0 2 - 6 Solder Flange Cable Yes PBT 5A 125V
LP12-xxPF-SO-PL-1 2 - 6 Solder Cable Flange Yes PBT 5A 125V
LP12-xxPF-SO-ZP-0 2 - 6 Solder Flange Cable Yes PBT & Zinc Alloy 5A 125V
LP12-xxPF-SO-ZP-1 2 - 6 Solder Cable Flange Yes PBT & Zinc Alloy 5A 125V
LP12-xxPF-SO-ZZ-0 2 - 6 Solder Flange Cable Yes Zinc Alloy 5A 125V
LP12-xxPF-SO-ZZ-1 2 - 6 Solder Cable Flange Yes Zinc Alloy 5A 125V
LP12-xxPP-SO-PL-0 2 - 6 Solder Panel Cable Yes PBT 5A 125V
LP12-xxPP-SO-PL-1 2 - 6 Solder Cable Panel Yes PBT 5A 125V
LP12-xxPP-SO-ZP-0 2 - 6 Solder Panel Cable Yes PBT & Zinc Alloy 5A 125V
LP12-xxPP-SO-ZP-1 2 - 6 Solder Cable Panel Yes PBT & Zinc Alloy 5A 125V
LP12-xxPP-SO-ZZ-0 2 - 6 Solder Panel Cable Yes Zinc Alloy 5A 125V
LP12-xxPP-SO-ZZ-1 2 - 6 Solder Cable Panel Yes Zinc Alloy 5A 125V
LP12-xxPC-SO-PL-0 7 - 8 Solder Cable Cable No PBT 3A 100V
LP12-xxPC-SO-ZP-0 7 - 8 Solder Cable Cable No PBT & Zinc Alloy 3A 100V
LP12-xxPC-SO-ZZ-0 7 - 8 Solder Cable Cable No Zinc Alloy 3A 100V
LP12-xxPF-SO-PL-0 7 - 8 Solder Flange Cable Yes PBT 3A 100V
LP12-xxPF-SO-PL-1 7 - 8 Solder Cable Flange Yes PBT 3A 100V
LP12-xxPF-SO-ZP-0 7 - 8 Solder Flange Cable Yes PBT & Zinc Alloy 3A 100V
LP12-xxPF-SO-ZP-1 7 - 8 Solder Cable Flange Yes PBT & Zinc Alloy 3A 100V
LP12-xxPF-SO-ZZ-0 7 - 8 Solder Flange Cable Yes Zinc Alloy 3A 100V
LP12-xxPF-SO-ZZ-1 7 - 8 Solder Cable Flange Yes Zinc Alloy 3A 100V
LP12-xxPP-SO-PL-0 7 - 8 Solder Panel Cable Yes PBT 3A 100V
LP12-xxPP-SO-PL-1 7 - 8 Solder Cable Panel Yes PBT 3A 100V
LP12-xxPP-SO-ZP-0 7 - 8 Solder Panel Cable Yes PBT & Zinc Alloy 3A 100V
LP12-xxPP-SO-ZP-1 7 - 8 Solder Cable Panel Yes PBT & Zinc Alloy 3A 100V
LP12-xxPF-SO-ZZ-0 7 - 8 Solder Panel Cable Yes Zinc Alloy 3A 100V
LP12-xxPF-SO-ZZ-1 7 - 8 Solder Cable Panel Yes Zinc Alloy 3A 100V
Characteristics
Unit of supply Male & Female pair (Panel / Flange mount includes silicon dust cap)
IP Rating IP68 to 1M/2hr (IP65 panel with dust cap)
Number of Pins 2 to 8
Connection Type Screw (2 & 3 pin) or Solder
Current Rating 5A (2 to 6 pin) / 3A (7 to 8 pin)
Rated Voltage 125V (2 to 6 pin) / 125V (7 to 8 pin)
Wire Size 0.5mmsq (2 to 6 pin) / 0.35mmsq (7 to 8 pin)
Min - Max Cable Diameter (mm) 5.0 - 7.0
Temperature Range -40°C to +85°C
Mating cycles >1900
Material PBT plastic (Flame and UV retardant) / Zinc alloy
Panel Cutout 12mm

Specifications subject to change without notice.
