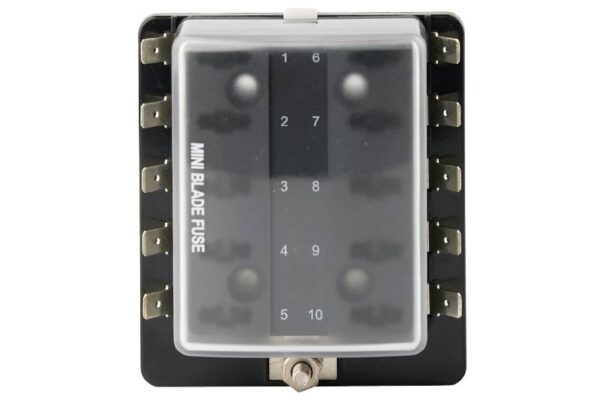

R3-76 10 way Mini Fuse Block

Home - Connectivity - Automotive - R3-76 10 way Mini Fuse Block

Marine and Automotive Mini blade type fuse blocks

Blade style fuse blocks for use with Mini size fuses featuring a clear and protective cover designed to protect the fuses from dust and moisture. Configured in a 10 way block with Red LED indicators to highlight where a fuse has failed and needs to be replaced. The fuse block can handle a maximum of 100A and a maximum of 30A per circuit. It has 6.4mm quick connect for the outlet terminals and 10-32 threaded studs to give greater strength and contact area for the input terminals.

  • 10 Mini blade fuse capacity
  • Torque Rating allows fuses to be held firmly in place
  • Maximum input of 100A
  • Dust and moisture protection cover
  • 30A maximum capacity per circuit.
  • Operating temperature -20°C to +85°C

30A maximum per circuit

IP66/67/68 Rated

Moisture and dustproof cover

Input wiring 4-6AWG

Output wiring 10-16AWG

-30°C to +85°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage
Fuse specification
Number of Fuse connection points
Input Wire Size
Output Wire size
LED Indication
Dimensions
Datasheet
R3-79-01-1 32VDC Mini 10 way Block (2x5) 4-6 AWG 12-16 AWG Red LED 85x80x64mm
Input terminals M5 threaded studs (100A Max)
Output terminal rating 30A
Input wire 4-6 AWG
Output Wire 10-16AWG
Torque Rating 2.25nM (20in-lb) Max
Temperature Rating -35°C to +85°C
Rated Voltage 32VDC

Specifications subject to change without notice.
