SLM19 Self Locking Connectors

Home - Connectivity - Circular Connectors - SLM19 Self Locking Connectors

IP68 Quick Connect / Release Plug & Sockets

The compact SL series IP68 self locking connectors feature a quick push to lock, and twist to release design for rapid installation. They come in plug and socket configurations for inline cable and panel mounting, are waterproof, dustproof and UV-resistant for demanding indsutrial and outdoor environments.

They are well suited for use in lighting, agricultural, renewable energy, robotics, automation, industrial and applications.

The wider product family also includes M15, M23, M25 and screwless connection types cable to cable and cable to panel.

  • 2 to 5 pin Gold plated contacts for power and signal applications
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • Screw and solder options up to 20A / 450V
  • PA66 UV resistant Nylon with locking ring
  • Supplied as mating pairs for value and convenience
  • Cable, front panel, rear panel and flange mount types
  • Cable range 3.5mm to 10mm for up to 2.5sqmm wire
  • Quick push to connect, twist to release - Anti-vibration
  • UL, TUV, CE approvals

20.4mm  / 16.4mm Panel Cutout

IP66/67/68 Rated

IP68 Mated / IP65 Dustcap

2 – 5 Pins

20A (2-3 pin) / 16A (4-5 pin)

450V

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Pins
Connection Type
Female Part
Male Part
Dust Cap
Wire Size mmsq
Current Rating
Voltage Rating
Datasheet

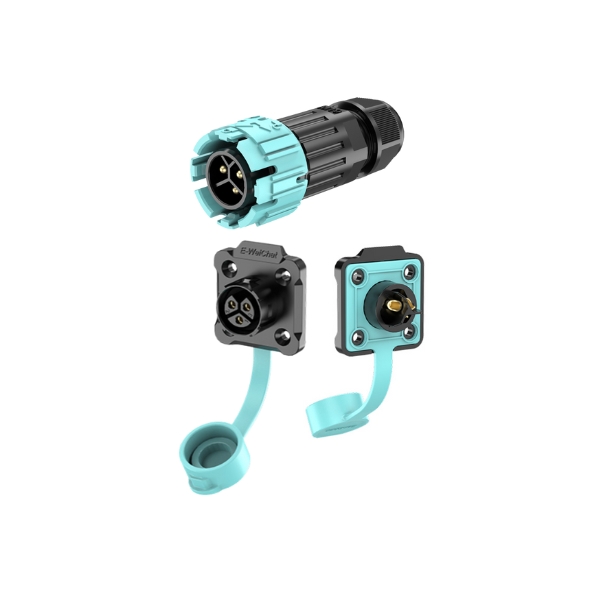

SLM19-xxPF-SC-0 2 - 3 Screw Flange Cable Yes 0.5 - 2.5 20A 450V
SLM19-xxPF-SC-1 2 - 3 Screw Cable Flange Yes 0.5 - 2.5 20A 450V
SLM19-xxPF-SO-0 2 - 3 Solder Flange Cable Yes 0.5 - 2.5 20A 450V
SLM19-xxPF-SO-1 2 - 3 Solder Cable Flange Yes 0.5 - 2.5 20A 450V
SLM19-xxPR-SC-0 2 - 3 Screw Front Panel Cable Yes 0.5 - 2.5 20A 450V
SLM19-xxPR-SC-1 2 - 3 Screw Cable Front Panel Yes 0.5 - 2.5 20A 450V
SLM19-xxPR-SO-0 2 - 3 Solder Front Panel Cable Yes 0.5 - 2.5 20A 450V
SLM19-xxPR-SO-1 2 - 3 Solder Cable Front Panel Yes 0.5 - 2.5 20A 450V
SLM19-xxPP-SC-0 2 - 3 Screw Rear Panel Cable Yes 0.5 - 2.5 20A 450V
SLM19-xxPP-SC-1 2 - 3 Solder Cable Rear Panel Yes 0.5 - 2.5 20A 450V
SLM19-xxPP-SO-0 2 - 3 Solder Rear Panel Cable Yes 0.5 - 2.5 20A 450V
SLM19-xxPP-SO-1 2 - 3 Solder Cable Rear panel Yes 0.5 - 2.5 20A 450V
SLM19-xxPC-SC-0 2 - 3 Screw Cable Cable No 0.5 - 2.5 20A 450V
SLM19-xxPC-SO-0 2 - 3 Solder Cable Cable No 0.5 - 2.5 20A 450V
SLM19-xxPF-SO-0 4 - 5 Solder Flange Cable Yes 0.5 - 1.5 16A 450V
SLM19-xxPF-SO-1 4 - 5 Solder Cable Flange Yes 0.5 - 1.5 16A 450V
SLM19-xxPR-SO-0 4 - 5 Solder Front Panel Cable Yes 0.5 - 1.5 16A 450V
SLM19-xxPR-SO-1 4 - 5 Solder Cable Front Panel Yes 0.5 - 1.5 16A 450V
SLM19-xxPP-SO-0 4 - 5 Solder Rear Panel Cable Yes 0.5 - 1.5 16A 450V
SLM19-xxPP-SO-1 4 - 5 Solder Cable Rear Panel Yes 0.5 - 1.5 16A 450V
SLM19-xxPC-SO-0 4 - 5 Solder Cable Cable No 0.5 - 1.5 16A 450V
Unit of supply Male & Female pair (Panel / Flange mount includes silicon dust cap)
IP Rating IP68 to 1M/2hr (IP65 panel with dust cap)
Number of Pins 2 to 5
Connection Type Screw (2 & 3 pin) or Solder
Current Rating 20A (2 & 3 pin) / 16A (4 & 5 pin)
Rated Voltage 450V
Wire Size 2.5mmsq (2 & 3 pin) / 1.5mmsq (4 & 5 pin)
Min - Max Cable Diameter (mm) 3.5 - 10.0
Temperature Range -40°C to +105°C
Mating cycles 1500
Material PA66 Nylon Flame and UV retardant
Panel Cutout 16.4mm / 20.4mm

Specifications subject to change without notice.
