IP68 Junction Box Enclosures

Rugged, hinged, waterproof junction boxes for outdoor installations
  • UV resistant PA66 nylon material
  • IP68 rated with silicon sealing gasket
  • Robust 4mm - 5mm thick walls
  • 2 to 6 cable entries for cables with 3.5mm to 12mm diameter
  • Hinged lid constructed with insulated metal pin
  • 4 pole screw terminal block for 6mmsq wires rated up to 450V / 40A
  • Operating temperature -40°C to +105°C
Read More

LP12 IP68 Connectors

Compact waterproof connectors for power and signal up to 5A
  • 2 to 8 pin Gold plated contacts for power and signal applications
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • PBT Plastic / Zinc Allow & PBT Plastic / Zinc Alloy versions available
  • PBT material is UV resistant and Flame Retardant
  • Also available in White colour housings
  • Supplied as mating pairs for value and convenience
  • Screw and solder options up to 5A / 125V
  • Cable, panel and flange mount types
  • Cable range 5mm to 7mm
  • Quick connect, push fit, press to release - Anti-vibration
  • Panel cut out 12mm with maximum connector diameter 23.2mm
  • UL, cUL, TUV, CE approvals
Read More

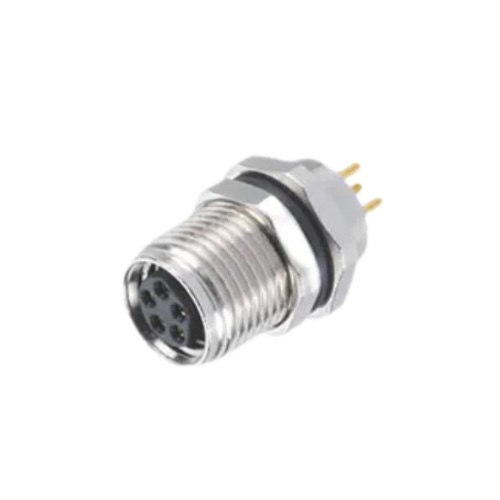

M Sensor IP67/IP68

Range of industry standard circular M5 / M8 / M12 connectors
  • Available in M5, M8, and M12 sizes with 2 to 12-pin configurations
  • Current ratings from 0.5A to 16A, supporting both data and power applications
  • Multiple coding types: A/B/D/X/L/K/S/T and Hybrid
  • Plastic (IP67) and metal (IP68) housings for cable or panel mounting
  • Configurations include right-angle, Y, and T adaptors for flexible installation
Read More

NMEA 2000® IP67/IP68

Enabling communication between devices on a boat or vessel
  • Industry-standard M12 sizing with gold-plated 5-pin or 8-pin OneNet connections featuring X-coding
  • IP67 and IP68-rated housings in UL-approved thermoplastic or nickel-plated metal alloys
  • Comprehensive range of configurations including panel mount, cable mount, adaptors, pre-cabled, inline, and field-installable options
  • Electrical ratings: 5A current, up to 500V voltage, operating temperature range of -40°C to +80°C
Read More

LP16 IP68 I/O Connectors

RJ-45 and USB-C IP68 rated waterproof plug & sockets
  • Shielded RJ-45 and USB-C 60W 5Gb/s connection
  • RJ-45 housing only, plugs not included
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • PBT Plastic / Zinc Allow & PBT Plastic / Zinc Alloy versions available
  • PBT material is UV resistant and flame Retardant
  • Supplied as mating pairs for value and convenience
  • USB-C cable end prewired with 1m cable - other lengths on request
  • Panel mount coupler for connection inside equipment
  • Cable, panel and flange mount types
  • Quick connect, push fit, press to release - Anti-vibration
  • Panel cut out 16.5mm with maximum housing diameter 32mm
  • UL, cUL, TUV, CE approvals
  • LP16 multipin types also available, see Circular connector section.
Read More

Ventilation Cable Glands Metal

Venting Metal cable glands for waterproof sealing and airflow in enclosures
  • Standard Metric (M12 to M20) and PG (PG9 to PG13.5) sizes
  • Combines cable gland functionality with ventilation, for secure cable retention and pressure equalization within enclosures
  • Offers the advantage of a single enclosure entry hole for both cable connection and ventilation, saving space and simplifying design
  • Prevents the formation of water condensation in tightly-sealed standard housings and protects against damage caused by pressure differences
  • Provides effective sealing to block ingress of water, dust and contaminants
  • Extends the service life of equipment by relieving pressure that would otherwise degrade enclosure gaskets over time
  • Manufactured from high-quality, durable materials for long service life
  • Suitable for indoor, outdoor, and harsh industrial environments
  • VDE, UL, DNV-GL approved
Read More

LP16 IP68 Connectors

Compact waterproof connectors for power and signal up to 10A
  • 2 to 9 pin Gold plated contacts for power and signal applications
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • PBT Plastic / Zinc Allow & PBT Plastic / Zinc Alloy versions available
  • PBT material is UV resistant and Flame Retardant
  • Also available with Blue / Yellow housings for signal / power identification
  • Supplied as mating pairs for value and convenience
  • Screw and solder options up to 10A / 400V
  • Cable, panel and flange mount types
  • Cable range 4mm to 9mm
  • Quick connect, push fit, press to release - Anti-vibration
  • Panel cut out 16.5mm with maximum connector diameter 32mm
  • UL, cUL, TUV, CE approvals
  • LP16 RJ-45 and USB-C types also available, see I/O connector section.
Read More

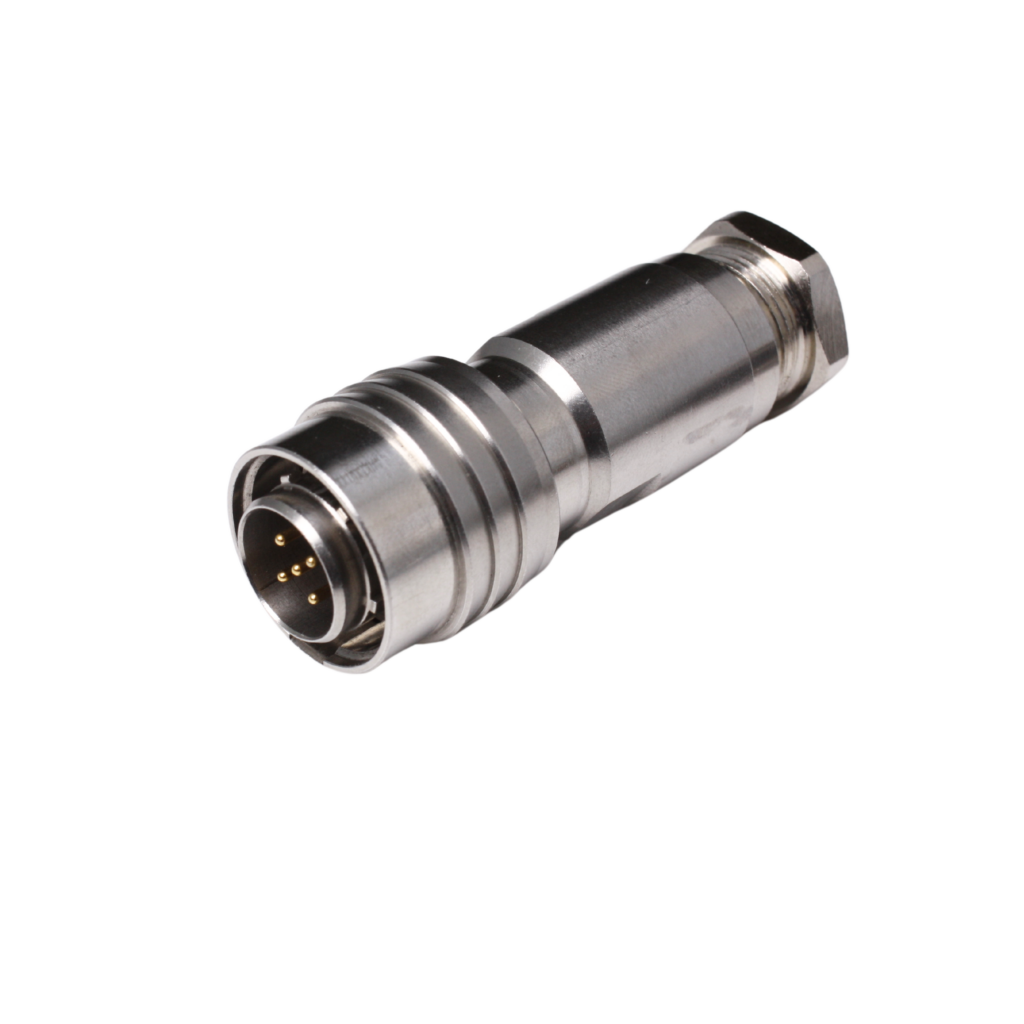

Circular IP67/IP68

Ensure secure, durable, and watertight connections for demanding outdoor, industrial, and harsh environment applications
  • IP66, IP67 and IP68 protection
  • 2 to 26 contacts
  • Current ratings from 2A to 41A
  • Panel mount and inline options
  • Bayonet, screw or twist-lock mechanisms
  • Field-installable and pre-wired versions
  • Keyway designs for correct mating
  • ROHS, TUV/VDE and UL compliant
Read More

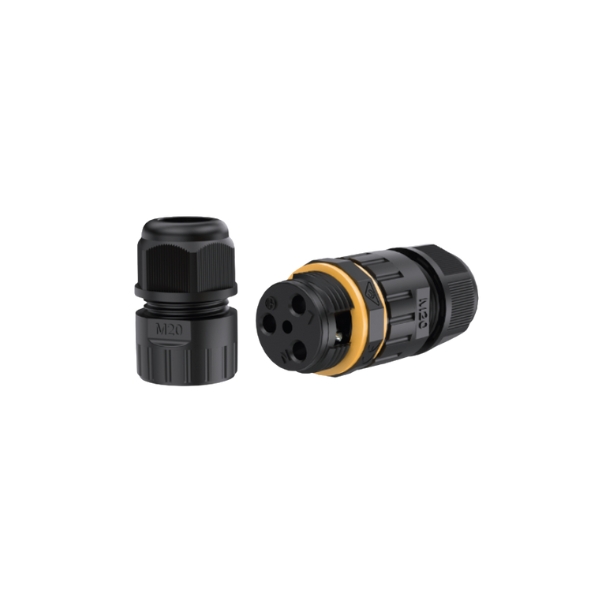

Screwless Waterproof Connectors IP68

IP68 rated cable joints and splitters
  • 3 & 5 pin with IP68 protection against dust and water
  • Suited for outdoor wiring and electrical installations
  • Screwless termination
  • Rugged Nylon PA66 UV and Flame retardant material
  • Silicon rubber seals
Read More
ip68 plastic ventilation plugs for enclosures

Ventilation Plugs Plastic

Plastic vent plugs for airflow in enclosures in harsh environments
  • Designed to provide reliable pressure equalization inside sealed housings and enclosures
  • Prevents the formation of water condensation and protects against damage caused by pressure differences
  • Extends the service life of equipment by reducing stress on enclosure gaskets and seals
  • Prevents the formation of water condensation and protects against damage caused by pressure differences.
  • Provides effective protection against water, dust and contaminants while allowing controlled airflow
  • Manufactured from high-quality, durable materials for long service life
  • Suitable for both indoor and outdoor use in industrial environments
  • Available in types that provide ventilation performance from very low to very high levels, depending on application needs
  • Offered with different mounting options, including threaded connection or snap-in installation
Read More
Bimed standard brass cable gland with corrosion-resistant plating, industrial cable entry solution, IP68 sealing, and secure strain relief for control panels, machinery, and outdoor electrical installations

EMC 4 Cable Glands

Generation 4 EMC glands with reverse action spring
  • IP68 in Metric thread sizes
  • Provides reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables
  • Ensures efficient and safe grounding of high currents, preventing overheating and maintaining reliable EMC performance
  • Maintains high EMC contact performance under vibration
  • Allows cables to be freely positioned and adjusted inside the gland without damaging the shield/braid of cables
  • Features an easy-to-install design for fast assembly
  • Designed for use with Shielded/Braided cables, conforming to EN 62444 and UL514B standards
  • High protection against dust, moisture, and water ingress
  • High tensile strength and reliable strain relief
  • Accessories include Gaskets, Earth tags, Lock nuts and Serrated Washers
  • VDE, UL, DNV-GL approved
Read More

SLP Screwless Self Locking Connectors

IP68 quick install waterproof plug & socket connectors
  • 2 to 5 pin Gold plated contacts for power and signal applications
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • Screwless wiring up to 16A
  • PA66 UV resistant Nylon with locking ring
  • Supplied as mating pairs for value and convenience
  • Cable, front panel, rear panel and flange mount types
  • Cable range 5mm to 14mm for up to 2.5sqmm wire
  • Quick push to connect, twist to release - Anti-vibration
  • UL, TUV, CE approvals
Read More

Filter

C2-3001B Heavy Duty Double Lamp LED Work Light

Heavy-duty double lamp LED work light designed for demanding environments
  • 21 - 52VDC | 125W | IP68/IP69K | 10G
  • 20000 lm Raw | 7000 lm Effective | 5700K
  • ECE R10, ISO 13766
Read More

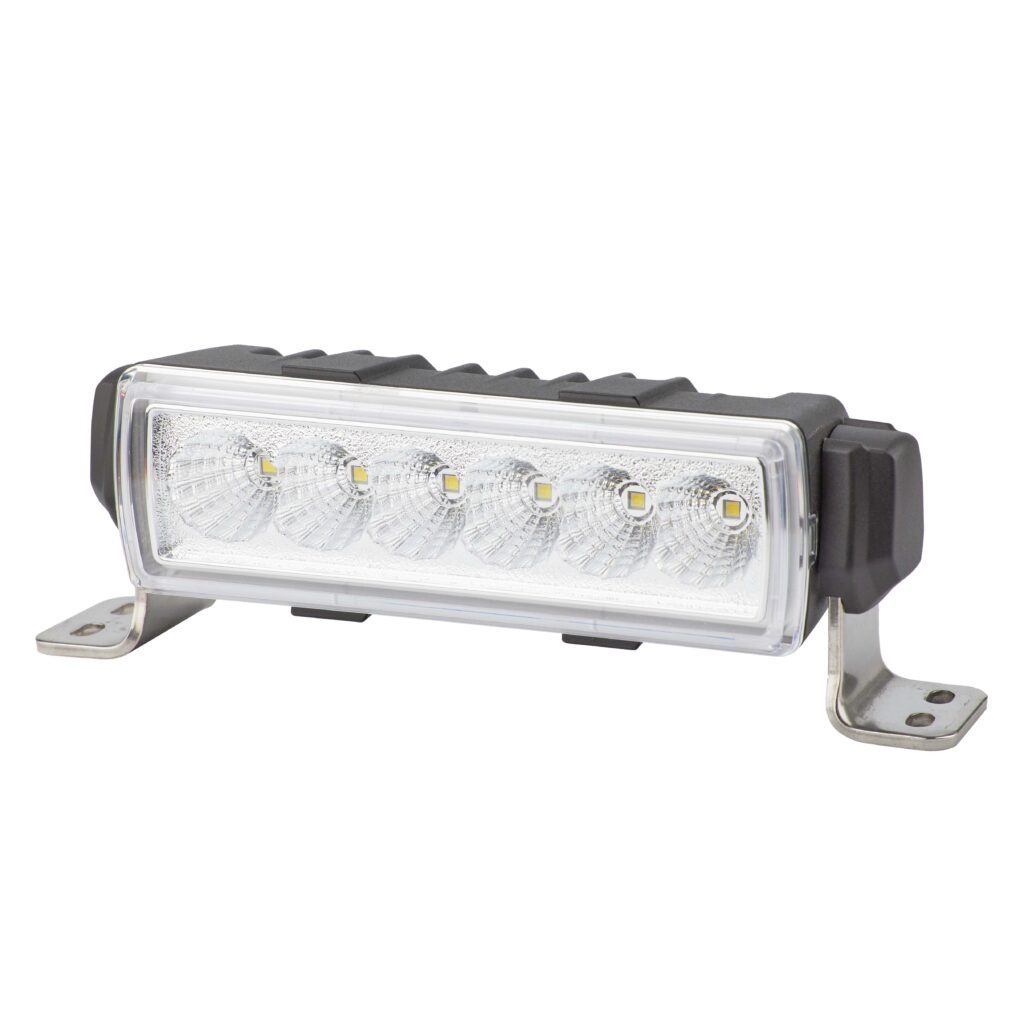

C2-3011 LED Light Bar (225mm)

Heavy-duty LED light bar designed for off-road applications
  • 9 - 33VDC | 30W | IP68/IP69K | 10G
  • 4200 lm Raw | 1500 lm Effective | 5700K
  • ECE R10
Read More

C2-3022 Front Direction Indicator and LED Work Light

Combines a front direction indicator with an LED work light, housed in a durable aluminium…
  • 9 - 64VDC | 17W | IP68/IP69K | 10G
  • 2,450Lm Raw | 1,200Lm Effective | 5700K
  • ECE R10, ISO13766, EN50498, ECE R6 (1b)
Read More

C2-3032 Front Direction Indicator and Glare Free LED Work Light

Combines a front direction indicator with a glare free LED work light, housed in a…
  • 9 - 64VDC | 28W | IP68/IP69K | 10G
  • 3,100Lm Raw | 1,200Lm Effective | 5700K
  • ECE R10, ISO13766, EN50498, CISPR25 CLASS 3
Read More

C2-383 LED Oval Blue Safety Lamp

Oval-shaped blue safety lamp with two high-intensity LEDs in an aluminium housing
  • 9 - 64VDC | 6W | IP67 | 7G
  • Blue Spot | 465~485nm
  • EN50498
Read More

C2-388A Oval LED Work Light

Large oval LED work light designed for durability and efficiency
  • 10 - 33VDC | 35W | IP68/IP69K | 10G
  • 5600 lm Raw | 3300 lm Effective | 5700L
  • ECE R10, ISO 13766, CISPR 25 CLASS3
Read More

C2-7810R LED Red Keep Out Zone Lamp

Heavy-duty red zone lamp featuring four LEDs in a durable aluminium housing
  • 9 - 80VDC | 20W | IP67 | 7G
  • 1400Lm Raw | 700Lm Effective | 615nm
  • ECE R10
Read More

C2-917S Handheld Spotlight

This series comprises of four handheld flood lights. A choice of flood or spot illuminated…
  • Power cable / charging adaptors supplied
  • Cable type 4000 lumen, battery type 2500 lumen
  • IP66
  • LED colour temperature 5700K
  • Battery type supplied with hooking ability
Read More

Inspection Lamp C2-929

The C2-929 is an innovative, high-specification inspection lamp designed for professionals who require a flexible…
  • Flexible gooseneck inspection lamp, the range offers up to a 950-lumen floodlight with a 5700K ‘Daylight White’ LED
  • Strong felt-backed anti-scratch magnet and concealed hook for hands-free operation
  • 3350mAh battery provides up to 3.5 hours in high-power mode and up to 6.5 hours in low-power mode
  • USB-C charging with a 4-hour charge time and 8-hour runtime for the top torch
  • Flexible gooseneck design for precise lighting in tight or awkward spaces
  • Product dimensions 311 x 46 x 49 mm
Read More

Filter

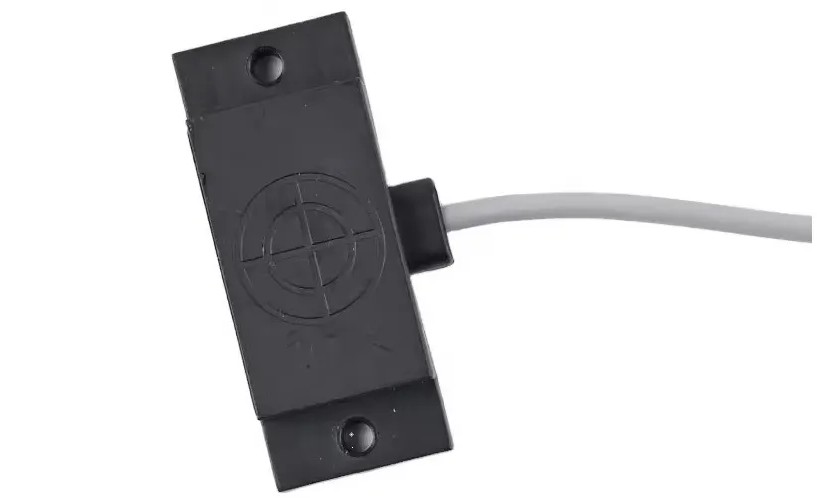

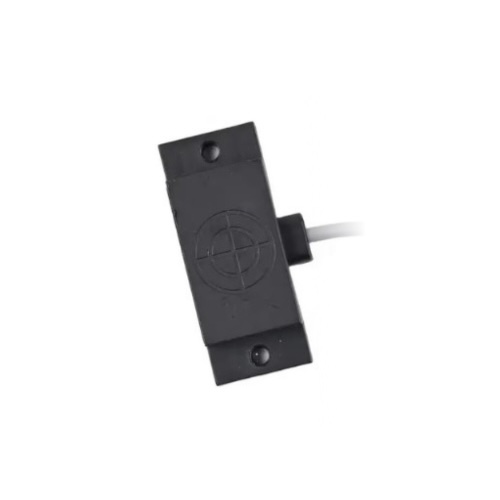

Capacitive Liquid level Proximity Sensor

LCS-B-2010-N capacitive proximity sensor for liquid level detection.
  • Sinking output (NPN)
  • Dimension 20mmx10mm
  • Measures at the sensors center line
  • Affixes using an included 3M adhesive tape
  • Sealed to IP62
  • Suitable for a tank wall thickness of 1 - 5mm
  • 300mm leads
  • Termination via a JST 2.54 pitch 3 pin female connector
Read More

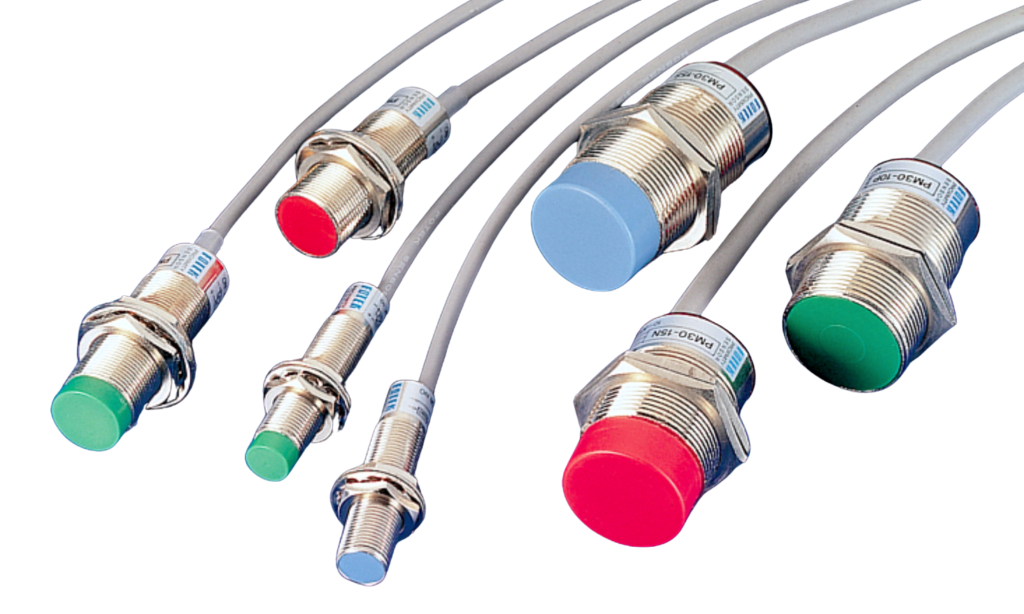

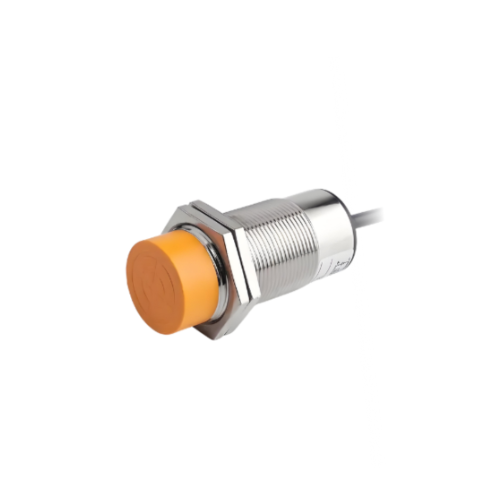

Capacitive Proximity Sensor

Cylindrical Capacitive sensors in sizes ranging from M8 to M30 commonly used in proximity applications.
  • Nickel plated Brass, Stainless Steel or ABS housing materials
  • Available in M8 through to M30 threaded housings
  • NPN or PNP output
  • Sealed to IP67
  • Adjustable Sensing with a range of up to 15mm
  • Short circuit, overload and reverse polarity protection
  • LED Status indication
Read More

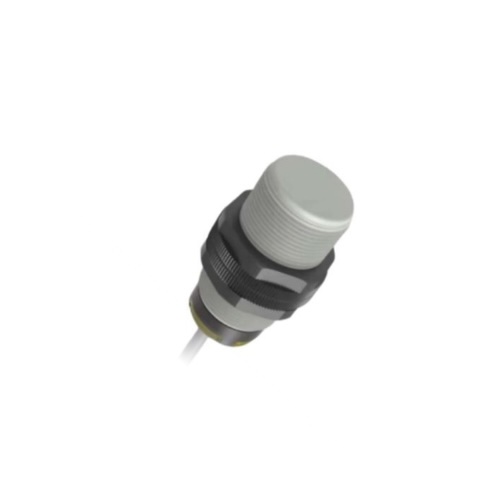

Capacitive Proximity Sensor (Polypropylene)

These polypropylene housed capacitive sensors are offered in M12, M18 and M30 cylindrical housings with…
  • Polypropylene housing material
  • Available in M12 through to M30 threaded housings
  • NPN or PNP output
  • Sealed to IP67
  • Adjustable Sensing with a range of up to 30mm
  • Short circuit and reverse polarity protection
Read More

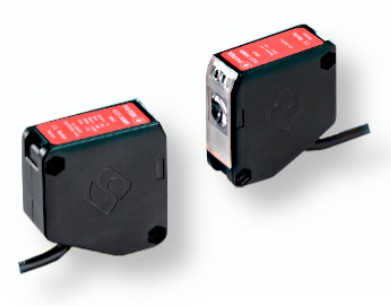

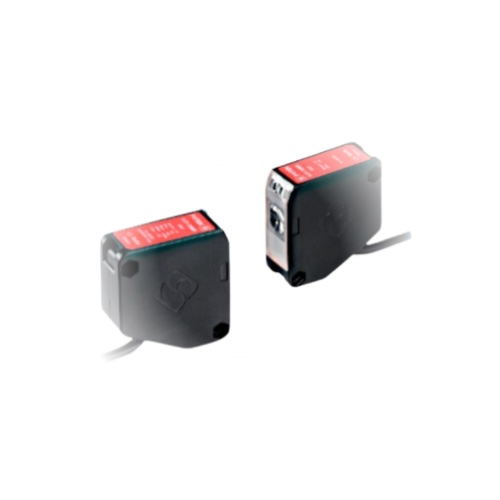

Photoelectric block style Sensor

Block type photoelectric sensors in a choice of housing forms.
  • Intensive ABS housing material with a PMMA Lens
  • Minimum sensing capability is an Opaque 50mm diameter object
  • NPN Transistor or relay output
  • Illumination resistance, >30,000 Lux for Sunlight and >10,000 Lux for lamplight
  • Sealed to IP67
  • Sensing range of up to 80m
  • ESD to Level 3 of IEC61000-4-2 (8KV)
  • Device operates correctly whilst subjected to RF interference 10V / M (ENV-50140)
  • Burst test 2KV (EN61000-4-4)
  • Short circuit, overload and reverse polarity protection
  • CE and RoHS approvals
  • Dimensions (K3 type) 53x50x20mm ~ (P3 type) 62x35x20mm
Read More

Photoelectric Sensor Tubular

M18 Photoelectric sensors with a Tubular Polymide housing
  • Polyamide housing material
  • Available in M18 tubular housings with 4 wire DC or 3 Wire AC termination.
  • Output methods are either NPN and PNP or Silicon Controlled Rectifier
  • Output current - DC~150mA max, AC~100mA max
  • Horizontal and vertical mount sensor options
  • Ingress Protection - IP66
  • Sensing range of up to 10m, DC version has a 270° trimmer style sensitivity adjuster
  • Hysteresis is 10% of sensing distance as a maximum
  • All types can be provided with M12 connector termination
  • Short circuit, overload and reverse polarity protection
Read More

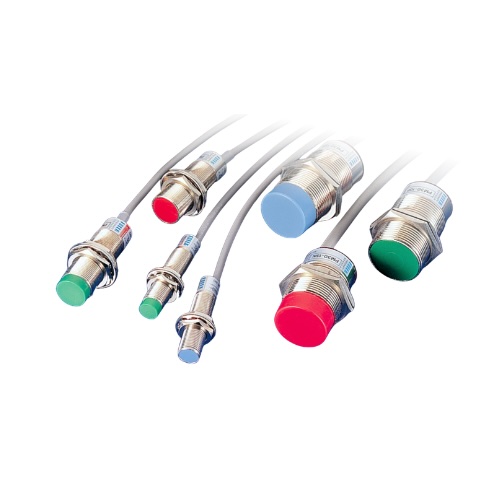

Inductive Proximity Sensor

Inductive Proximity sensors with Cylindrical housings are offered in M8 through to M30,
  • Copper plated Nickel, Stainless Steel or Polypropylene housing materials
  • Available in M8 through to M30 threaded housings
  • NPN, PNP or SCR output
  • Sealed to IP67
  • Sensing range of up to 25mm
  • Short circuit, overload and reverse polarity protection
  • Short body, fully threaded housing with wire or M12 connector
Read More

Flow Sensor

Flow sensors to suit your application either metal housed or Nylon. Applications include water treatment,…
  • Vertical or horizontal mounting
  • Choice of connection options
  • Start-up volume setting
  • Lead lengths to suit the application
  • Cable material UL1007-AWG24
  • Housing form G1/2 BSP
Read More

Active Wheel Speed Sensor

Active wheel speed sensors for front and rear is designed to measure the rotational speed
  • Measures rotational speed
  • Large operating air gaps
  • Rugged construction
  • Customizable cable length / connectivity
  • RoHS compliant
Read More

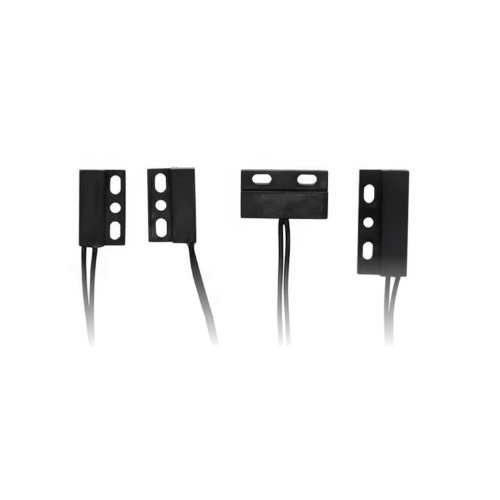

Rectangular Flange Mount Reed sensor

Magnetically operated, hermetically sealed rectangular Reed switches, supplied with the magnet, designed to detect the…
  • Sealed to IP67 ( improved sealing on request)
  • Sensitivity 10-60 AT
  • Available in Nylon (PA) or Polyethylene Terephthalate (PET)
  • Housing colour options :- black, white and red
  • Connector and lead termination are customisable
Read More

Filter

AD12 – AD25 Indicators

Stainless Steel panel mount indictors with LED illumination. Specified for DC or AC voltages with…
  • Stainless Steel vandal resistant LED indicators providing IP65 protection
  • Panel mount with a wide choice of bezel types
  • Suitable for 8mm, 12mm, 16mm, 19mm & 22mm panel cut-outs
  • Various LED options and colours
  • Solder or screw stud terminals
Read More

Battery Isolation A23-3

12-50 VDC100A continuousOff / 1 / 1&2 / 2IP68UL94V-0
  • Reliable 100A battery switch suitable for panel mount with removable safety knob
  • Fully rated to IP68 for maximum protection against dust and water
  • Robust housing compliant with UL94V-0 flame-retardant standards
  • Quick and secure power disconnection for peace of mind in an emergency
  • Suitable for marine and vehicle battery systems, ON/OFF control
Read More

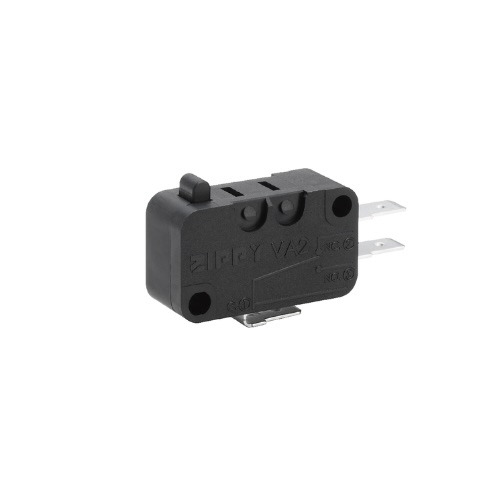

Miniature VA2

Miniature VA2

Our most versatile and widely used V3 switch based on number of variants and configurations.
  • Electrical rating 0.1A to 26A 125/250V AC (incl. 6A 125/250 VAC at T200)
  • Wide variety of auxiliary actuators (straight, sim. roller, roller lever)
  • Quick Connect (Q.C.) or solder terminals
  • Operating temperature range -40 to 125°C
  • ENEC and UL certified for worldwide use
  • Requests for custom variants welcome
Read More

MR2 IP68

The MR Standard Series is a range of IP68 compact single pole and double pole…
  • Compact switch rated up to 16(8)A 125/250V AC
  • Panel cut-out 13 x 19 mm or round 20 mm options
  • Choice of actuator colours & illumination types
  • Available with Quick Connect, Solder or PCB terminals
  • ENEC and UL certified
Read More

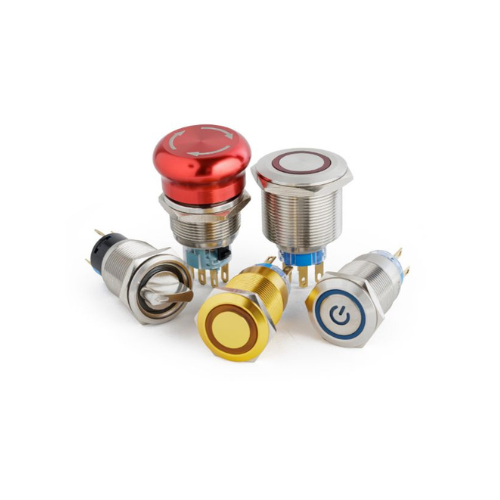

PK 19-28mm Vandal Resistant

Robust, reliable vandal resistant switches available in Nickel Plated Brass, Stainless Steel (303, 304 or…
  • Suitable for Ø 19, 22, 25 and 28mm cut-outs
  • High mechanical and electrical service life
  • IP68 ingress protection and IK10 impact protection
  • Optional IP69K variant available
  • Electrical rating 6A 125/250V / 6A 3~48VDC
  • Spot, ring and power symbol illumination including bi-colour LEDs
  • Flat, raised and dome actuator shape options
  • S.P.S.T. and D.P.D.T. configurations
  • Quick Connect, solder, PCB or screw terminal options
  • Behind panel sealing available with wire leads.
  • ENEC and UL certified for worldwide use
  • Emergency stop variants
Read More

Sub-subminiature DW

Widely used in the automotive sector, this sealed sub-subminiature switch is designed for DC applications.…
  • Sub-subminiature snap action microswitch offering IP67 protection
  • Electrical rating 3A 12V DC
  • Gold plated terminal option rated at 10mA 12VDC
  • Resistance values can be configured
  • Operating temperature range -40 to 85 °C (model dependent)
  • Solder, PCB and wire lead terminal options
  • Various mounting & fixing post (pillar) options including M3 screw
  • Optional straight or simulated roller actuator
  • Mechanical service life min. 500,000 operations
  • ENEC and UL certified for worldwide use
Read More

Our Markets

Industries & Applications

We serve a broad range of demanding markets, providing high-quality electromechanical and lighting solutions designed to thrive in challenging applications and harsh conditions.

From high-performance automotive components, to robust switches, sensors, and connectors found in Agriculture and Marine environments, our products and solutions provide adequate protection against water and dirt ingress, chemicals, vibration, and temperature extremes.

While Climate Change has advanced the Renewable Energy sector, the drive to offset human muscle with Robotics & Drones has seen more Autonomous Mobile Robots (AMRs) and Unmanned Aerial Vehicles (UAVs) deployed, driving demand for waterproof connectors and sensors.

We appreciate that every project is unique so offer a range of services to ensure the product you purchase from LUCID meets the specific requirements of your application.

View all markets

About Us

Lucid Electronics Limited is a sales agent for manufacturers of rugged electromechanical components and lighting products, providing off-the-shelf and custom solutions. Our team consists of like-minded industry professionals with decades of experience, motivated to find a better and more personable way to do business, combining old fashioned values with the demands of modern business.

Latest News

Check out all the latest company, product and news articles here.

Filter

Improving Reliability in EV Charging

Robotics, automation, and autonomous systems are transforming industries, but the reliability of any system is…
March 17, 20263 min
Read More

Connecting the future of automation

Robotics, automation, and autonomous systems are transforming industries, but the reliability of any system is…
October 1, 20253 min
Read More

Improved Visibility Reduces Risk

Forklift warning lights are not simply optional accessories; they are a critical component as manufacturers…
September 24, 20253 min
Read More
