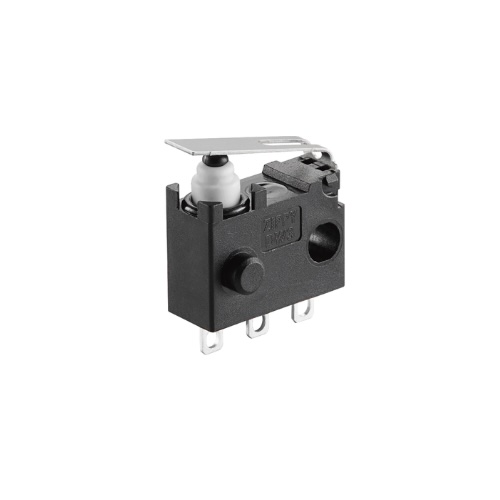

Widely used in the automotive sector, this sealed, low current sub-subminiature switch has a silent mechanism that makes it ideal for applications inside a vehicle. A key feature is the long overtravel button actuator, in addition to optional resistors to limit current flow and detect faults. Designed for use in applications where there is a risk of liquid ingress and exposure to contaminants. Certified according to both ENEC and UL standards, so suitable for worldwide use.
  • Sub-subminiature snap action microswitch with silent mechanism and IP67 protection
  • Suitable for low current applications (electrical rating 1mA 5V DC)
  • Silver and gold plated contact options
  • Resistance values can be configurable
  • Operating temperature range -40 to 85 °C (model dependent)
  • Solder, PCB and wire lead terminal options
  • Various mounting & fixing post (pillar) options including M3 screw
  • Optional straight or simulated roller actuator
  • Mechanical service life min. 1 million operations
  • ENEC and UL certified for worldwide use

0.1A 30VDC

S.P.D.T., -N.O., -N.C.

Silent Mechanism

IP66/67/68 Rated

IP67

Automotive - Markets at Lucid Electronics

Ideal for Automotive Applications

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Operating Force (max.)
Terminal Type
Actuator Type
Actuator Length
Datasheet
DW3-P1S-00A0A-0A-Z 0.1A 30V DC S.P.D.T. 153 gf Solder (no hole) Button - pdf
DW3-P1S-00B0A-0A-Z 0.1A 30V DC S.P.D.T. 153 gf Solder Button - pdf
DW3-P1S-A01B0A-0A-Z 0.1A 30V DC S.P.D.T. 185 gf Solder Straight lever 14.00 mm pdf
DW3-P1S-00B0A-0A-Z 0.1A 30V DC S.P.D.T. 153 gf Solder Button - pdf
DW3-P1S-00P0A-0A-Z 0.1A 30V DC S.P.D.T. 153 gf PCB Button - pdf
Characteristic
DW3 Series
Electrical Rating 0.1A 30V DC, 0.05A 16V DC, 0.001A 5V DC
Circuitry S.P.D.T.
Ingress Protection IP67 (IP00 with bare terminals)
Termination Solder, PCB, Wire Leads
Agency Approvals N/A
Operating Force 153 gf with button actuator, model dependent
Operating Temperature -40 to 85 °C
Electrical Service Life 100 mA 30V DC min. 300000 operations, 50 mA 10V DC 500000 operations, 1 mA 5V DC 500000 operations
Mechanical Service Life min. 500000 operations
Contact Resistance (initial) max. 1 mOhm
Insulation Resistance (initial) min. 100 MOhm (100V DC for one minute)
Housing Material PBT
Button Material POM
Terminal Material Brass

Specifications subject to change without notice.
