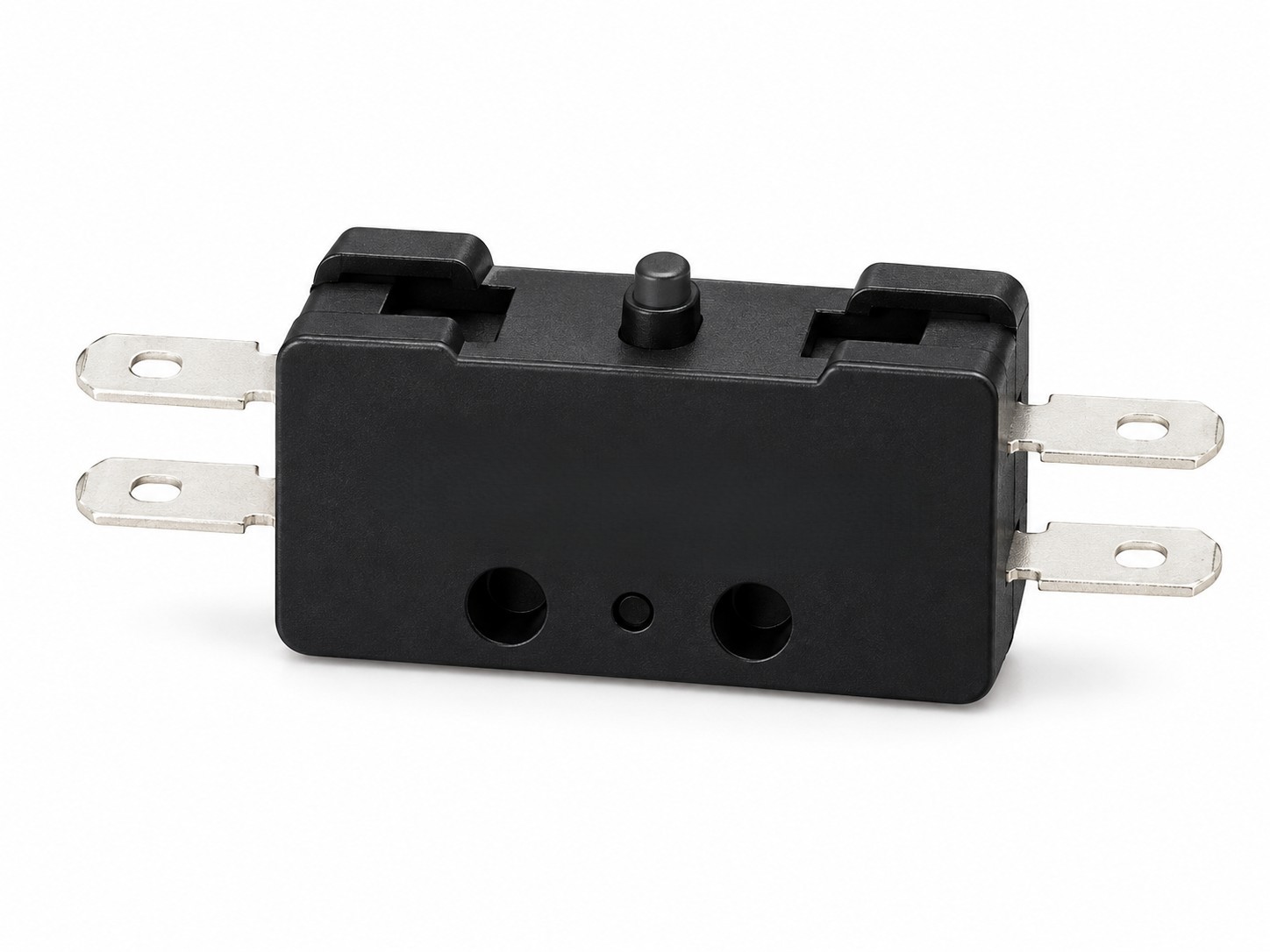

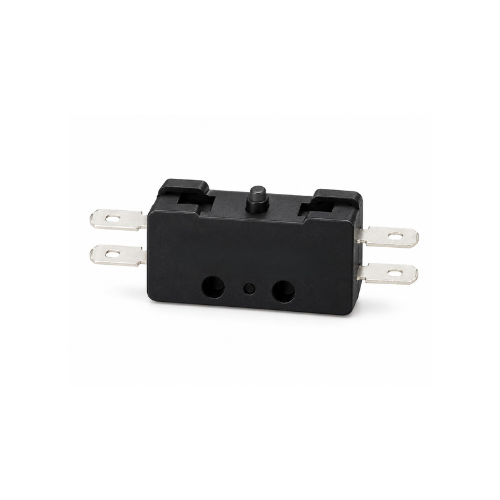

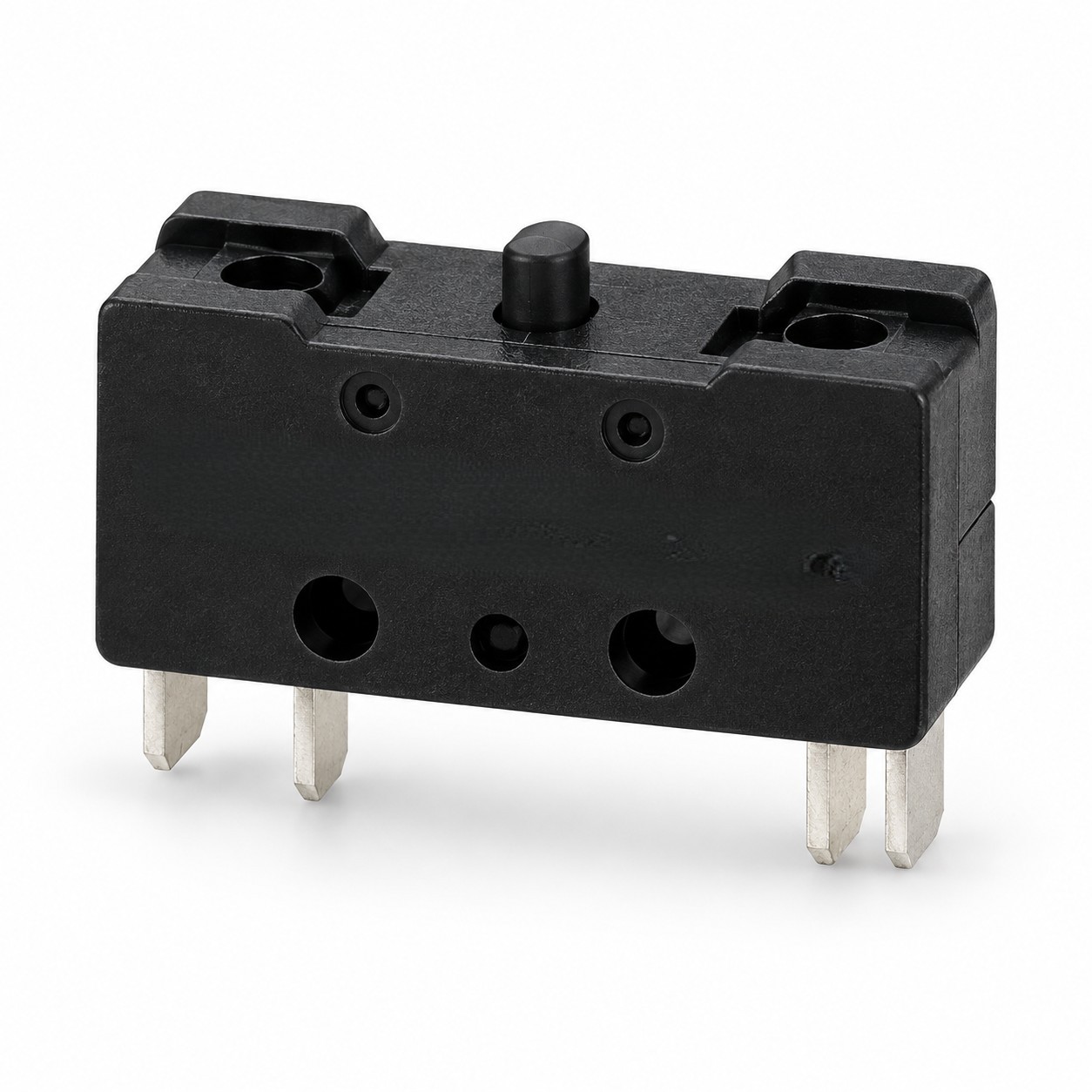

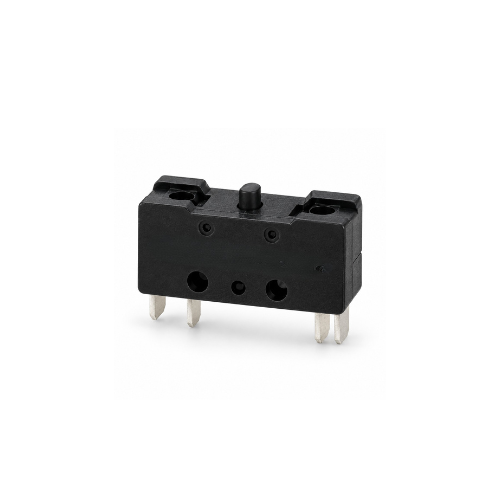

G606 double break miniature microswitch
The G606 is a compact snap action double break miniature microswitch that simultaneously interrupts an electrical circuit at two contact points with a single mechanical actuation. This D.P.D.T. switch offers both a variety of actuator and terminal options. Applications include medical devices, home appliances, industrial control and automotive equipment.
- Precise operation repeatability
- Compact switch rated up to 0.5A / 6A 125/250V AC 1/4HP 250VAC
- DPDT Double break mechanism
- Wide choice of actuators
- Operating temperature range from -40°C up to 125°C
- Choice of PCB and solder terminals
- Mechanical life 50,000 cycles
- Electrical service life up to 100,000 cycles
- UL certified
up to 0.5A 125/250V AC
D.P.D.T. 1N.O / 1 N.C, D.P.D.T. N.O
-40°C up to 125°C
Up to 200gf operating force
Ideal for automation & control
Enquire Now / Request a SampleView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Actuator
|
Operating force
|
Electrical Rating
|
Contact configurations
|
Terminal Type
|
Operating frequency (Electrical)
|
Operating frequency (Mechanical)
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|
| G606 200 K 00 D | Pin Plunger | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Long solder terminal | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 P 11 D | Straight Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Straight PCB | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 F 13 D | Short straight Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Lateral Solder | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 R 11 D | Straight Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Right Angle PCB (Right) | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 K 11 D | Straight Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Long solder | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 F 00 E | Pin plunger | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. NO | Lateral Solder | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 K 11 E | Straight Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. NO | Long Solder | 10 - 30 cycles / min | 120 cycles / min | |
| G606 200 L 11 D | Straight Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Right angle PCB (Left) | 10 - 30 cycles / min | 120 cycles / min | |

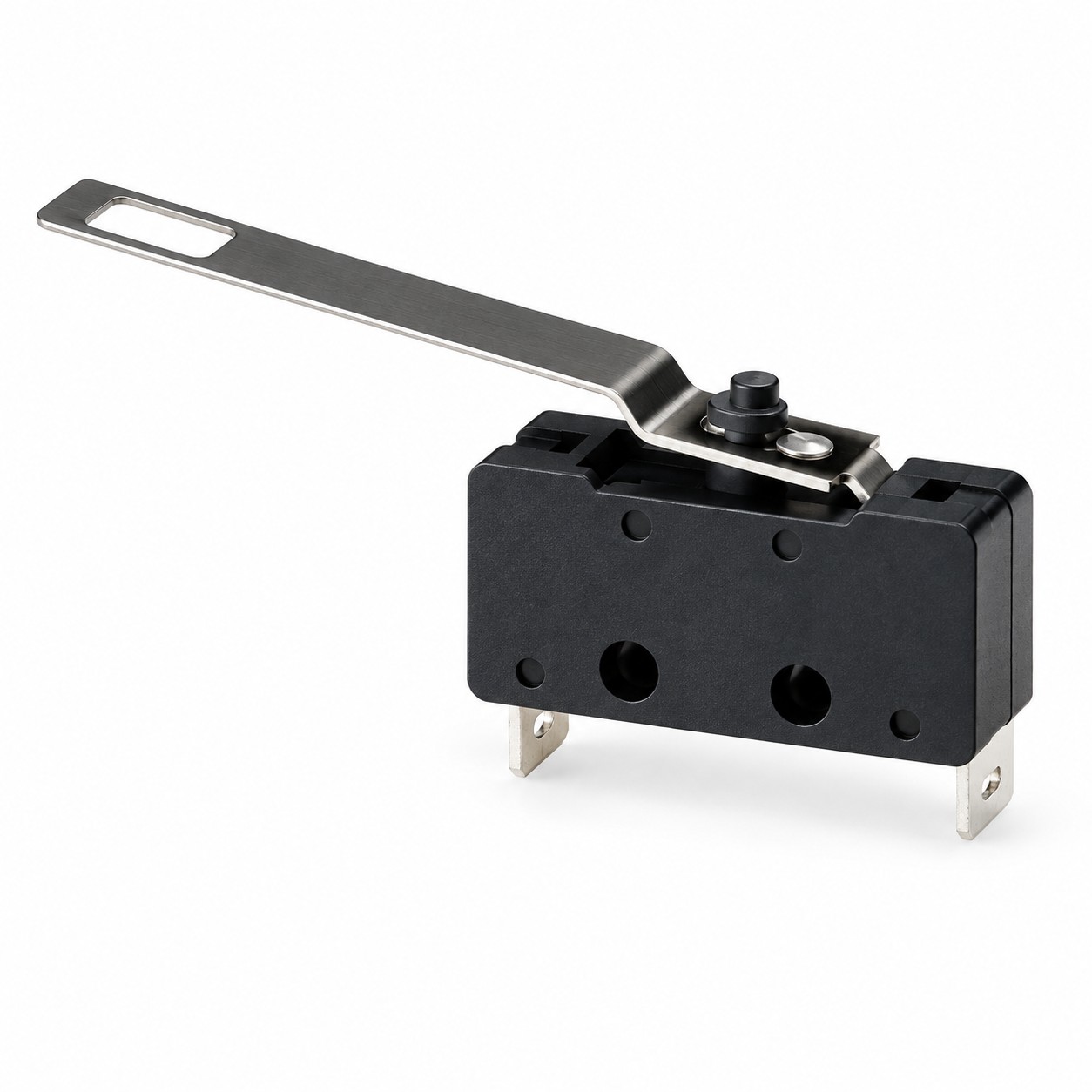

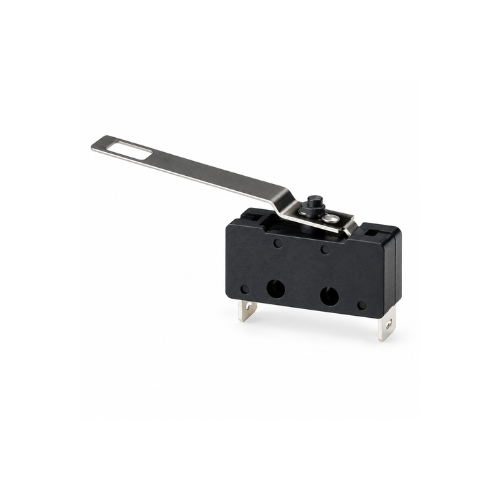

| G606-200F12DU | Straight lever (with hole) | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Side Solder | 10 - 30 cycles / min | 120 cycles / min | |
| G606-200K20DU | Roller Lever | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. 1NO / 1NC | Long Solder | 10 - 30 cycles / min | 120 cycles / min | |
| G606-200R12EKU | Straight lever (with hole) | 200gf | 0.5A 125/250VDC ~ 0.5 / 6A 125/250VAC (1/4HP 250VAC) | D.P.D.T. NO | Right Side PCB Terminals | 10 - 30 cycles / min | 120 cycles / min |
| Electrical Rating | 0.5A / 6A 125/250V AC 1/4HP 250VAC |
| Poles / Throws | D.P.D.T. 1NO / 1NC, DPDT NO |
| Actuator | See data sheet |
| Terminals | See Data sheet |
| Approvals | UL / cUL |
| Electrical service life | Up to 100,000 cycles |
| Mechanical service life | 50,000 cycles |
| Operating Temperature Range | -40°C up to 125°C |
Specifications subject to change without notice.
