C2-3032 Front Direction Indicator and Glare Free LED Work Light

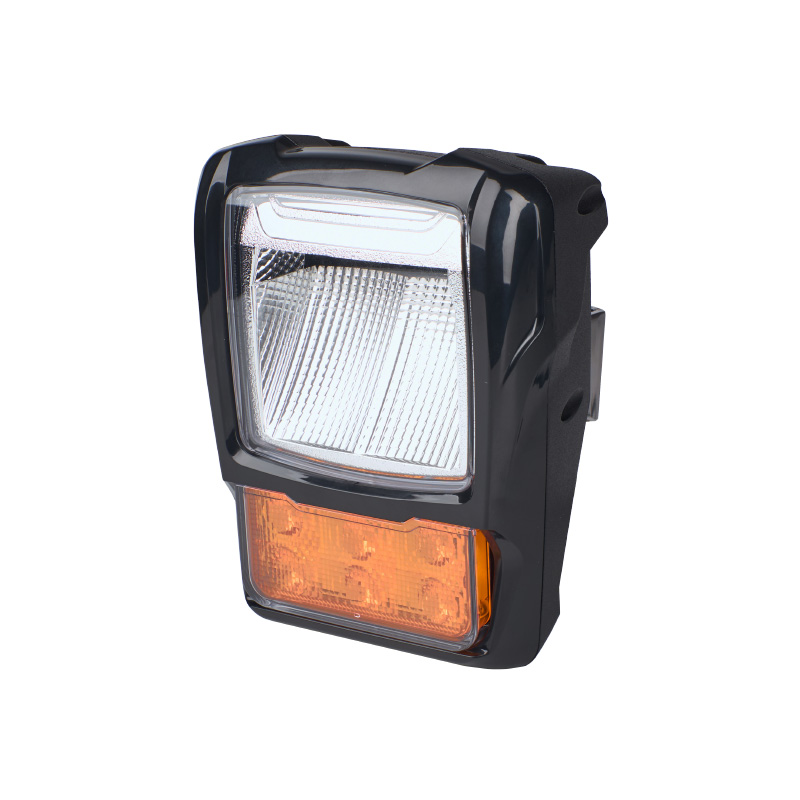

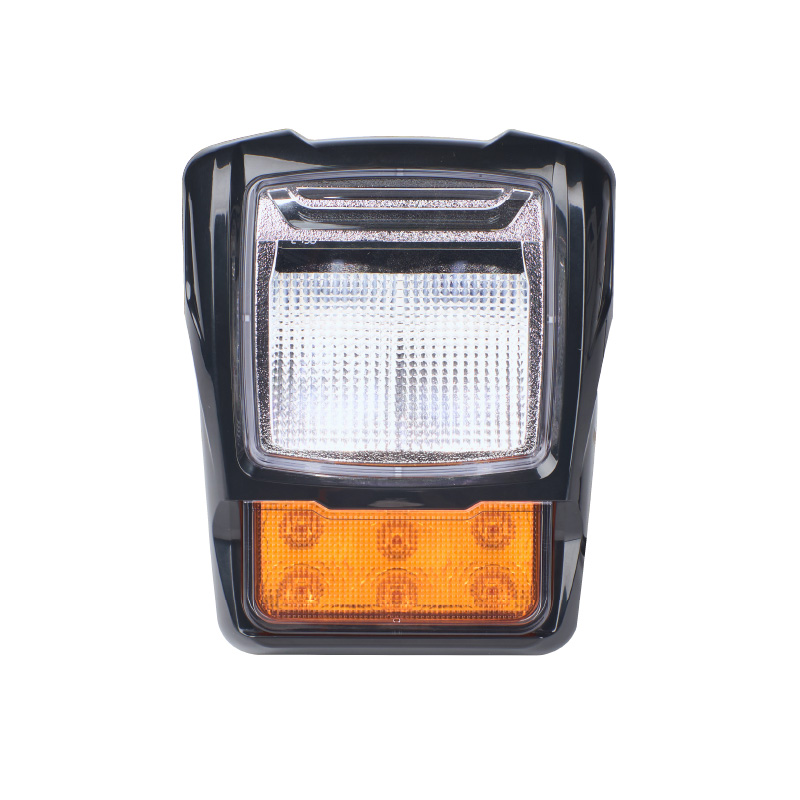

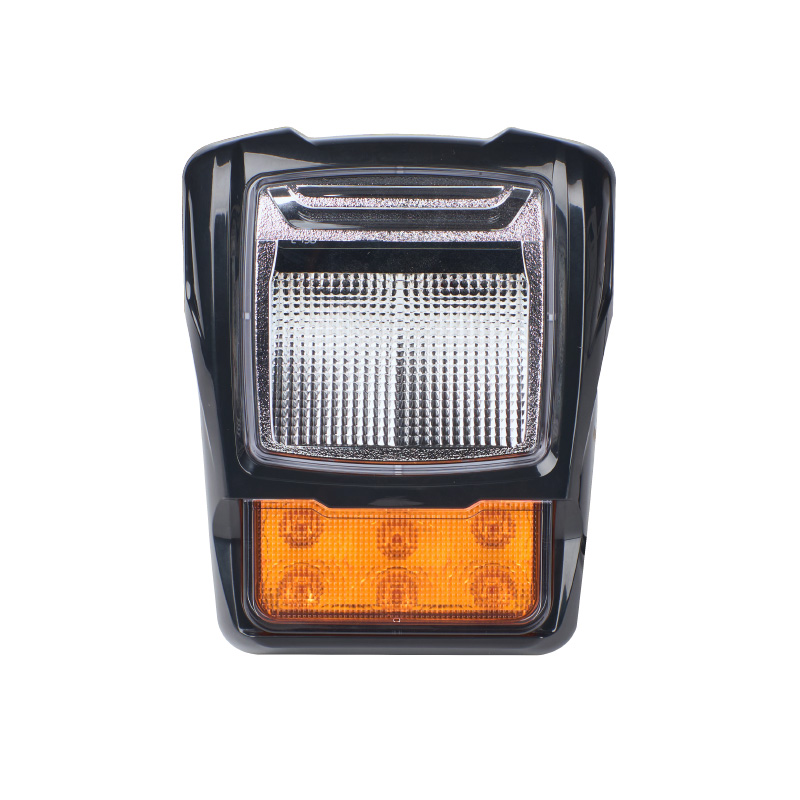

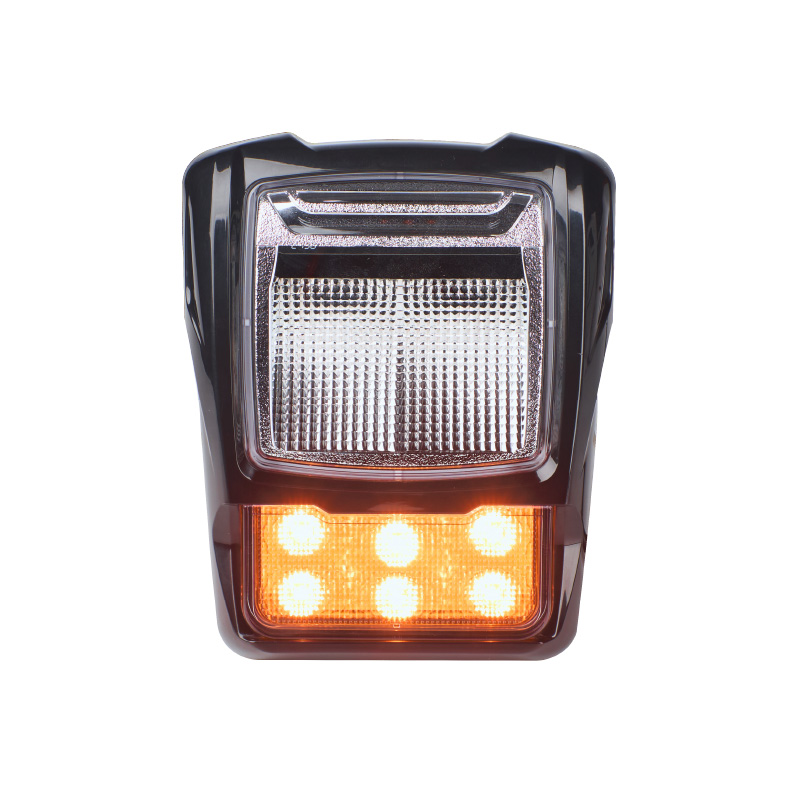

The C2-3032 combines a front direction indicator with an LED work light, housed in a durable aluminium body with a polycarbonate lens. It operates within a voltage range of 9-64VDC and features a 28W work light above the direction indicator, providing a practical and useful additional light source. The work light offers an effective 1700lm and delivers bright and glare free illumination while maintaining low energy usage. The light is designed to withstand harsh conditions, with an IP68/IP69K rating for protection against dust, water, and chemicals, and 10G vibration resistance, it also offers over-voltage, reverse polarity, and overheating protection. Approved under EN50498 and ECE R6 (1b), it meets stringent electromagnetic compatibility standards. The LEDs produce a cool white light with a Lumen output of 3,900lm, enhancing visibility in low-light conditions. This versatile light is ideal for use in agricultural, specialist, warehouse, and construction vehicles.
Swipe to Browse
- Specifications
|
Part Number
|
Voltage
|
Power Consumption
|
Raw Lumen Output
|
Effective Lumen Output
|
Nominal current Work Lamp
|
Nominal current Direction Indicator
|
Shock resistance
|
Termination
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|
| C2-3032 | 9-64VDC | 27.6W | 3900lm | 1700lm | 2.3A @ 12V, 24V @ 1.2A | 0.18A @ 12V, 0.9A @ 24V | 10G | Deutsch DT04-3P |
| Housing Shape | Square |
| Beam Pattern | Flood |
| Raw Lumen Output | 3200 Lumen |
| Effective Lumen Output | 1200 Lumen |
| Colour Temperature | 5700K |
| Voltage | 9 - 64 VDC |
| Nominal Current at | 2.3A at 12V, 1.2A at 24V |
| Power Consumtion | 28W |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 126 x 73 x 157 mm |
| Mounting Style | Single Bolt |
| Termination | Deutsch DT04-3P |
| EMC | EN50498, ECE R10, CISPR25 Class 3 |
| Approvals |
Specifications subject to change without notice.
