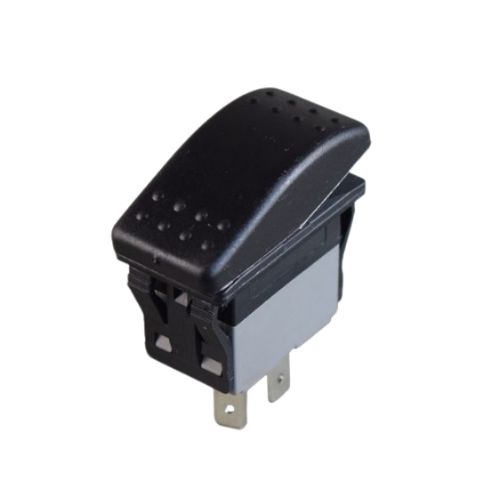

The X5-series consists of rugged, single or double pole sealed switches providing IP67 water and dust ingress protection. Rated up to 20(8)A 125/250V AC, 16A 6-30V DC according to UL and ENEC standards, the X5-series is ideal for use in outdoor environments and applications. Numerous electrical ratings, configurations, terminations and actuator options are available as standard, in addition to custom solutions on request. The vast range of removable actuators are available in PC or TPR, depending on the application. There are also multiple actuator styles, lens types, illumination options and symbols available.
  • Rugged panel mount IP67 switches
  • Designed for high current applications up to 20(8)A 125/250V AC, 16A 6-30V DC
  • Panel cut-out approx. 21.2 x 37.5 mm
  • Quick Connect, solder or screw terminal options
  • Wide range of removable actuators
  • Terminal connector available for easy installation
  • Operating temperature range up to -40 to 85 °C
  • Mechanical service life min. 20000 cycles
  • ENEC and UL certified

20(8)A 125/250V AC, 16A 6-30V DC

21.2 x 37.5 mm cut-out

T85/55

IP66/67/68 Rated

IP67

Marine - Markets at Lucid Electronics

Ideal for marine or off road vehicles

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
IP Rating
Terminal Type
Actuator Type
Illumination
Datasheet
X5-114ANN-NABD-1NN 16A 6~30VDC Single pole On-Off IP67 Q.C. 6.3 x 0.8 mm Type A Non-illuminated pdf
X5-214ENN-2ABD-1GN 16A 6~30VDC Double pole On-Off IP67 Q.C. 6.3 x 0.8 mm Type E Single LED (green) pdf
X5-234BNN-1ABD-4FN 16A 6~30VDC Double pole On-Off-On IP67 Q.C. 6.3 x 0.8 mm Type B Dual LED (red/red) pdf
X5-234ANN-NABB-1NN 20(8)A 125/250VAC Double pole On-Off-On IP67 Q.C. 6.3 x 0.8 mm Type A Non-illuminated pdf
X5-264ENN-1ABD-2HN 16A 6~30VDC Double pole (On)-Off-(On) IP67 Q.C. 6.3 x 0.8 mm Type E Dual LED (red/amber) pdf
X5-264BNN-NABB-1NN 20(8)A 125/250VAC Double pole (On)-Off-(On) IP67 Q.C. 6.3 x 0.8 mm Type B Non-illuminated pdf
Electrical Rating up to 20(8)A 125/250V AC, 16A 6-30V DC
Poles / Throws SPST, SPDT, DPST, DPDT
Function On-Off, On-On, On-Off-On, (On)-Off, (On)-On, (On)-Off-(On), (On)-Off-On, On-(Off), On-On-On, (On)-On-(On)
Illumination 125V AC, 250V AC, 6V DC, 12V DC, 24V DC
Terminals Quick Connect, Solder, Screw
IP Rating IP67
Operating Temperature Range up to T85/55
Accessories Removable snap-on actuators
Panel cut-out 21.2 x 37.5 mm
Options Custom solutions on request
Approvals UL, ENEC

Specifications subject to change without notice.
