VK IEC C14 Fused

Home - Connectivity - Mains & IEC Connectors - VK IEC C14 Fused

The VK series multifunction sockets are supplied with single fuse holder and where required a 19x13mm switch cut out. These EN60320 C14 inlets are rated at 10A 250VAC and are suitable for applications in heating and air conditioning, power distribution equipment and professional food service equipment. Available with quick-connect or solder terminals in black or white PA66 housings.

  • Inlet Rated: 10A 250VAC (ENEC), 10A 250VAC, 20A 60VDC (UL)
  • Fuse rated 2.5W / 10A 250VAC
  • 5X20mm fuse
  • Switch mount versions available
  • Electric strength: 1,500VAC for 1 minute
  • Insulation resistance: 100MΩ min at 500VDC
  • Housing: PA66 UL94V-0 (black or white)
  • Terminal options: Quick-connect or solder

IEC C14

3 Pins

10A

250VAC

Quick Connect /  Solder Tab

Enquire Now / Request a SampleView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Description
Panel Cut-out
Electrical Rating
Mounting Type
Terminal Type
Housing Colour
Datasheet
VK-210-NB C14 inlet and fuse holder with fuse 31.8x27.2mm 10A 250V AC Snap-In 4.8mm Quick Connect Black pdf

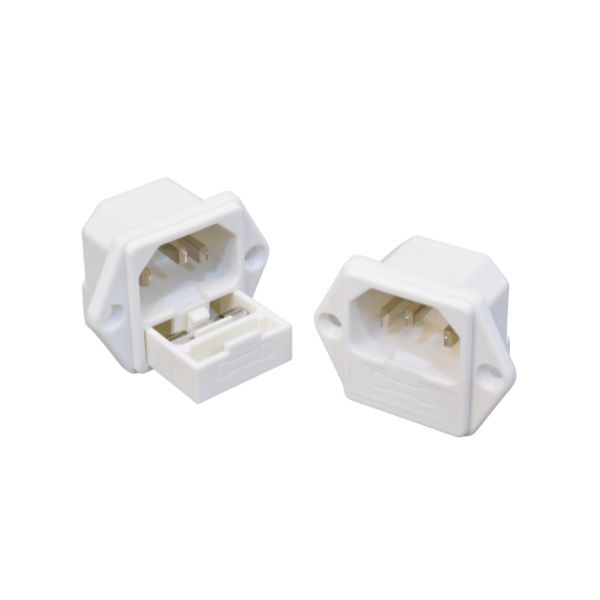

VK-211-SW C14 inlet and fuse holder with fuse 31.2x27.2mm 10A 250V AC Flange Solder White pdf
VK-310-NB C14 inlet, fuse holder with Fuse and 19x13mm switch mount cut-out 47.4x27.9mm 10A 250V AC Snap-In 4.8mm Quick Connect Black pdf
VK-311-SW C14 inlet, fuse holder with Fuse and 19x13mm switch mount cut-out 47.4x27.9mm 10A 250V AC Flange Solder White pdf
VK-200-NB C14 inlet and fuse holder 31.8x27.2mm 10A 250V AC Snap In 4.8mm Quick Connect Black pdf
VK-201-SW C14 inlet and fuse holder 31.2x27.2mm 10A 250V AC Flange Solder White pdf
VK-301-NB-106 C14 inlet, fuse holder and non illuminated Rocker 47.4x27.9mm 10A 250V AC Snap In Solder Black pdf
VK-301-SW-105 C14 inlet, fuse holder and non illuminated Rocker switch 47.4x27.9mm 10A 250V AC Flange Solder White pdf
VK-201-SB C14 inlet and fuse holder 31x27mm 10A 250V AC Flange Solder Black pdf
VK-201-NB C14 inlet and fuse holder 31.8x27mm 10A 250V AC Snap In Solder Black pdf

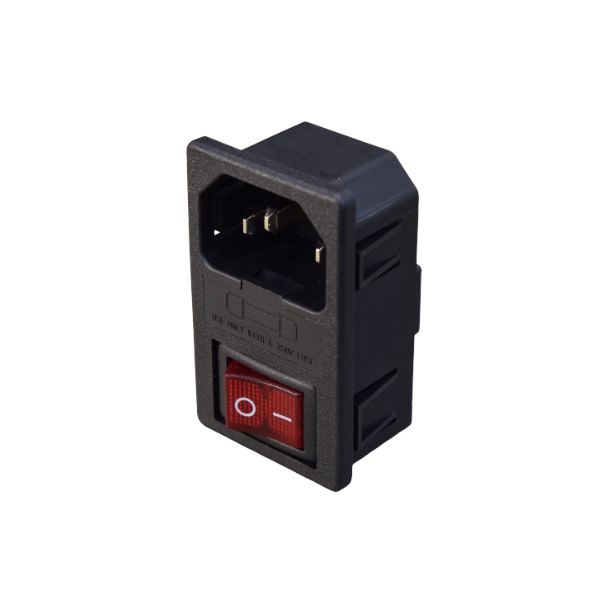

VK-301-NB-107 C14 inlet, fuse holder and illuminated rocker switch 47.2x27.7mm 10A 250V AC Snap In Solder Black pdf
VK-301-NB-102 C14 inlet, fuse holder and non illuminated rocker switch 47.2x27.7mm 10A 250V AC Snap In Solder Black pdf
Electrical Rating up to 10A 250V AC
Housing Material black, White PA66
Inlet Type C14
Mounting Snap-in, flange
Termination Quick Connect, Solder
Options Switched
Approvals Socket IEC / EN 60320 ~ Fuse IEC / EN 60127
For use with C13 connector

Specifications subject to change without notice.
