R

Home - Switches & Indicators - Rocker Switches - R

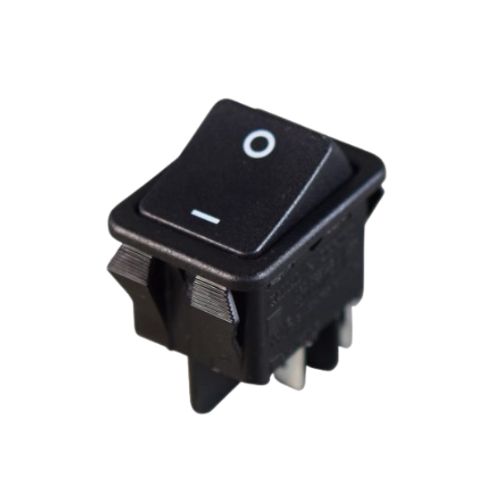

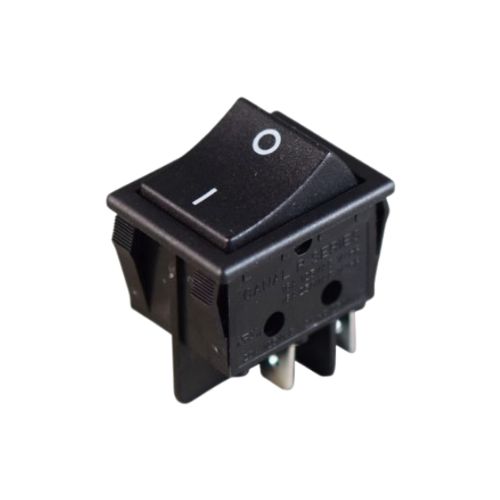

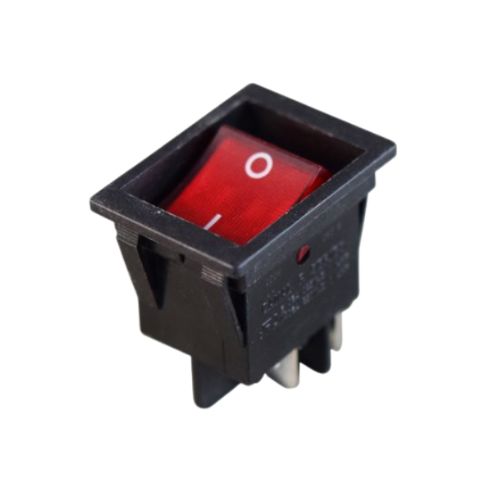

Safety approved double-pole Rocker switches with up to 30A 125 / 250VAC electrical rating. Designed with high inrush applications in mind, the switch is available with a protection guard to protect against accidental operation. The switch body can be supplied in grey, black or white, with non-illuminated actuators in grey, black, white or red. Illuminated actuators in red, orange or green. Dual actuator version available on request.
  • Industry standard panel cut-out 22 x 30 mm
  • Designed for high current applications up to 30(8)A 125/250V AC
  • Inrush capability 128A
  • Operating temperature range from -20°C up to 125°C
  • Quick Connect, solder, PCB or screw terminal options
  • Choice of bezel styles with flat or concave options
  • Optional actuator legend marking and illumination options
  • Waterproof cover and protection guards can be retrofitted
  • Available with V0 flame retardant nylon on request
  • Designed for panel thickness 0.75 - 1.25mm panel thickness
  • ENEC and UL certified

30(8)A 125/250VAC

22 x 30 mm cut-out

128A Inrush rating

V0 flame retardant nylon option

Ideal for demanding applications

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Terminal Type
Illumination
Legend Marking
Datasheet
R-210C5W-GBR5-151NC 30(8)A 125/250V AC D.P.S.T. On-Off Q.C. 6.3 x 0.8 mm Illuminated (red) o - pdf
R-210F2N-NBBF-1FNNC 8[128A] 250V AC D.P.S.T. On-Off Q.C. 6.3 x 0.8 mm Non-illuminated - pdf
R-210C2N-NBB1-11DNH6 16(4)A 125/250VAC D.P.S.T. On-Off Q.C. 6.3 x 0.8 mm Non-illuminated - pdf
R-260C6W-NBBA-11ANC 16(4)A 125/250VAC D.P.D.T. (On)-Off-(On) Q.C. 6.3 x 0.8 mm Non-illuminated I O II pdf
R-210C5W-LBRB-119NC 16(8)A 125/250V AC D.P.S:T. On-Off Q.C. 6.3 x 0.8 mm Illuminated (red) - o pdf
R-220C9W-NBB6-119NC 30A 48V DC D.P.S.T. On-On Q.C. 6.3 x 0.8 mm Non-illuminated I II pdf
Electrical Rating up to 30(8)A 125/250VAC
In-rush Rating up to 128A
Function On-Off, On-On, On-Off-On, (On)-Off, (On)-On, (On)-Off-(On), (On)-Off-On
Poles / Throws SPST, SPDT, DPST, DPDT
Terminals Quick Connect, Solder, PCB, Screw
Illumination 125V AC, 250V AC, 5V DC, 12V DC, 24V DC, 28V DC, 48V DC
Operating Temperature Range up to T125/55
Accessories Splashproof cover, switch guard
IP Rating N/A
Panel cut-out 22 x 30 mm
Options V0 flame retardant nylon
Approvals UL, ENEC

Specifications subject to change without notice.
