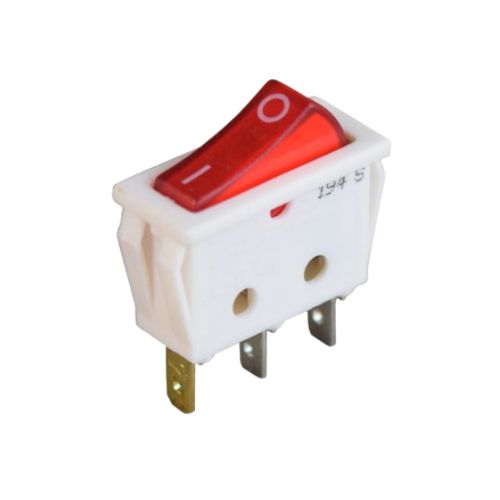

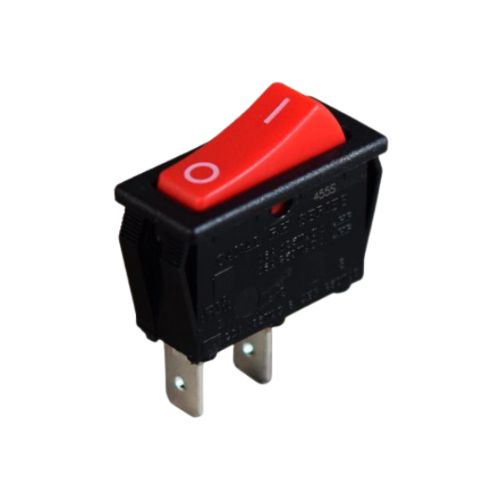

Compact single pole rocker switches designed for demanding applications, rated up to 30(8)A 125/250V AC and with in-rush protection up to 128A. The switch body can be supplied in grey, black or white, with non-illuminated actuators in grey, black, white or red. Illuminated actuators in red, orange or green.
  • Suitable for 11 x 30 mm panel cut-out (panel thickness 1.25 - 2.00mm)
  • Designed for high current applications up to 30(8)A 125/250V AC
  • Inrush capability 128A
  • Operating temperature range from -20°C up to 125°C
  • Quick Connect, solder, PCB or screw terminal options
  • Flat or concave actuator options
  • Optional actuator legend marking and illumination options
  • Waterproof cover available
  • Available with V0 flame retardant nylon on request
  • ENEC and UL certified

30(8)A 125/250VAC

11 x 30 mm cut-out

128A Inrush rating

Flame retardant VO material option

Ideal for demanding applications

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Terminal Type
Illumination
Legend Marking
Datasheet
R-H60C6W-NBBA-111GC 16(4)A 125/250V AC T55 (ON)-OFF-(ON) Quick Connect None I O II pdf
R-H10C2N-NBRA-115NC 16(4)A 125/250V AC T55 ON-OFF Quick Connect None - pdf
R-H10C5B-LBUA-115NC 16(4)A 125/250V AC T55 ON-OFF Quick Connect Illuminated 100~125V AC (100k ohm) O - pdf
R-H20C2N-NBBB-16ANC-V0 16(8)A 125/250V AC T125/55 ON-ON Quick Connect None - pdf
R-H10C5W-NBBF-16ANC-V0 16(8)A 125/250V AC T125/55 ON-OFF Quick Connect None O - pdf
R-H10C5W-NBB5-16ANC-V0 30(8)A 125/250V AC T125/55 ON-OFF Quick Connect None O - pdf
R-H10C5W-GBRB-16ANC-V0 16(8)A 125/250V AC T125/55 ON-OFF Quick Connect Illuminated 200 - 250V AC Red O - pdf
R-H10C5W-2BGD-16ANC-V0 16(8)A 125/250V AC T125/55 ON-OFF Quick Connect Illuminated 12V DC Green O - pdf
Electrica Rating up to 30(8)A 125/250VAC
In-rush Rating up to 128A
Function On-Off, On-On, On-Off-On, (On)-Off, (On)-On, (On-Off-(On), (On)-Off-On
Poles / Throws SPST, SPDT
Terminals Quick Connect, solder, PCB, Screw
Illumination 125V AC, 250V AC, 5V DC, 12V DC, 24V DC, 28V DC, 48V DC
Operating Temperature Range up to T125/55
Accessories Splashproof cover
Panel cut-out 11 x 30 mm
Options Flame retardant V0 material
Approvals UL, ENEC

Specifications subject to change without notice.
