C2-107R Wide Voltage Range LED Work Light
The C2-107R is a wide voltage range LED work light designed for versatility and durability. It features an aluminium housing and a polycarbonate lens, with four LEDs providing bright and uniform illumination with an output of 3040 lm. Operating within a voltage range of 9-80VDC, it consumes 17W of power, ensuring efficient energy usage. The light is designed to withstand harsh conditions, with an IP66 rating for protection against dust and water, and it offers over-voltage, reverse polarity, and overheating protection. Approved under EN 50498, it meets electromagnetic compatibility standards. The LEDs emit a cool white light with an LED colour temperature of 5700K, enhancing visibility in low-light conditions. This work light is ideal for use in specialist, warehouse, and construction vehicles.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
| Housing Shape | Round |
| Beam Pattern | Flood |
| Raw Lumen Output | 3040 Lm |
| Effective Lumen Output | 1000 Lm |
| Colour Temperature | 5700K |
| Voltage | 9 - 80 VDC |
| Nominal Current at | |
| Power Consumtion | 17W |
| Ingress Protection Rating | IP66 |
| Shock Resistance | 7G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |

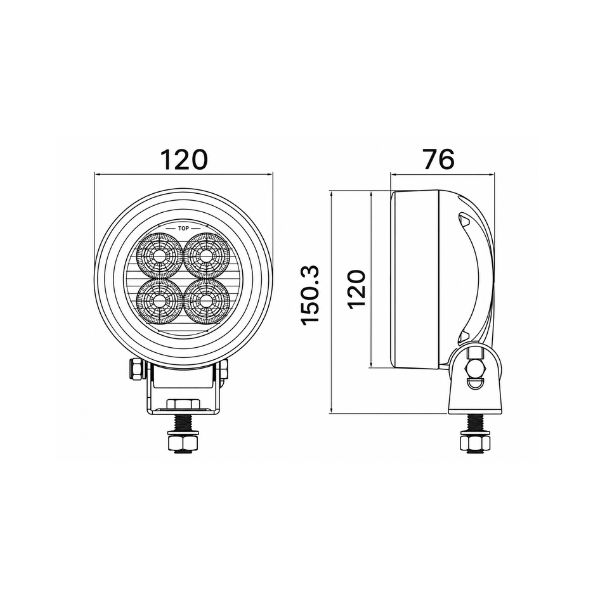

| Dimensions | 120 x 76 x 150.3 mm |
| Mounting Style | Single Bolt |
| Termination | 300mm wire |
| EMC | EN50498 |
| Approvals |
Specifications subject to change without notice.
