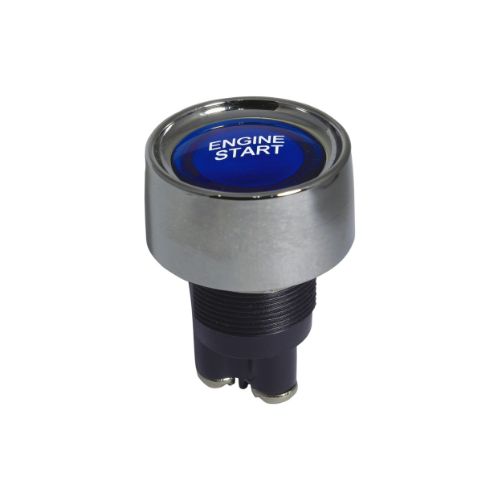

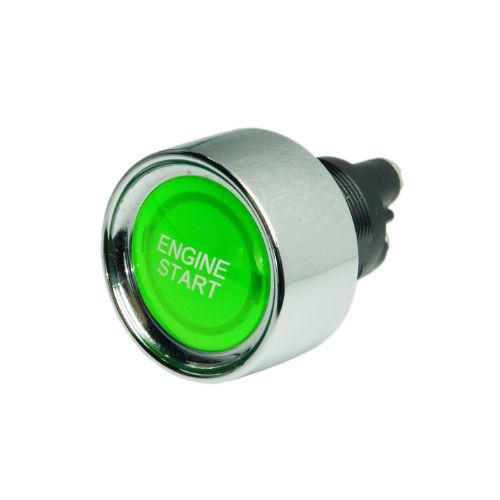

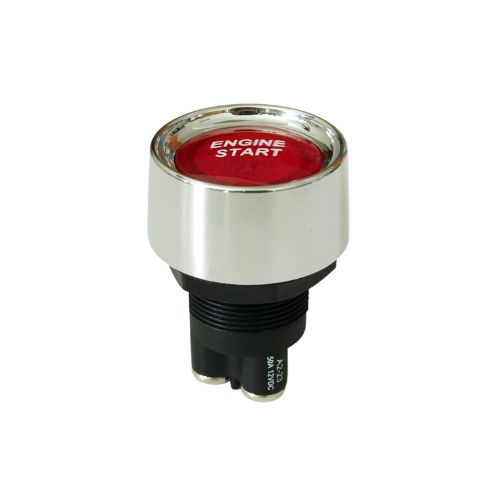

A23-C Push Button Engine Start switch

Home - Switches & Indicators - Automotive - A23-C Push Button Engine Start switch

This 3P SPST OFF-(ON) switch is an aesthetically pleasing push button, engine start switch that can offer a choice of illumination in the OFF position, ON position and for the Aura around the central button or be supplied as non illuminated. Colours include Green, Blue, Red, White and Amber. The Panel mount switch has a 22mm cut out and is rated up to 50A for 12VDC and 25A for up to 24VDC. The body of the switch is Nylon 66 (UL94V-2) and the button is Polycarbonate (UL94V-2)
  • 50 Amp 12VDC / 25A 24VDC Rating
  • 3P SPST OFF-(ON)
  • LED illuminated with choice of colour
  • Panel mount 22mm cut out.
  • Suitable for recreational, specialist and commercial vehicles

12~24VDC

50A ~12VDC, 25A~24VDC

3P SPST OFF-(on)

IP66/67/68 Rated

IP40

22mm

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Button on illumination
Button off illumination
Aura illumination
Terminal type
Datasheet
A2-23C-07-RUG-1 50A 12VDC 3P SPST OFF-(ON) Green Blue Red (independent) SC 4 Brass Alloy
A2-23C-07-RUG-2 25A 24VDC 3P SPST OFF-(ON) Green Blue Red (independent) SC 4 Brass Alloy
A2-23C-07-UGR-1 50A 12VDC 3P SPST OFF-(ON) Green Red Blue (independent) SC 4 Brass Alloy
Max. Voltage Rating 12 - 24 VDC
Rating 50A~12VDC, 25A~24VDC
Contact Resistance 50m Ohm max
Dielectric Strength AC 1500V 1 Minute
Operation 3P SPST Off~(on)
Protection Rating IP40
Operating Temperature -25 ~ 85°C
Mounting hole size 22mm
Insulation Resistance DC500V 100M ohm minimum
Illumination Red, White, Green, Blue and yellow options

Specifications subject to change without notice.
