PS5 Pushbutton IP68

Home - Switches & Indicators - Vandal Resistant Switches - PS5 Pushbutton IP68

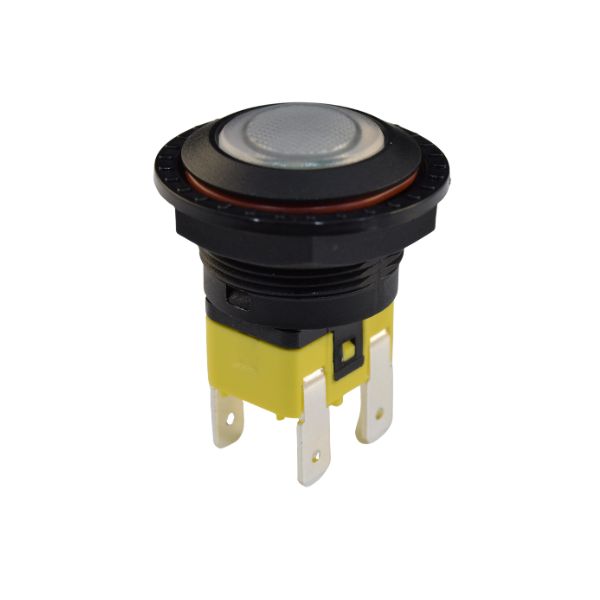

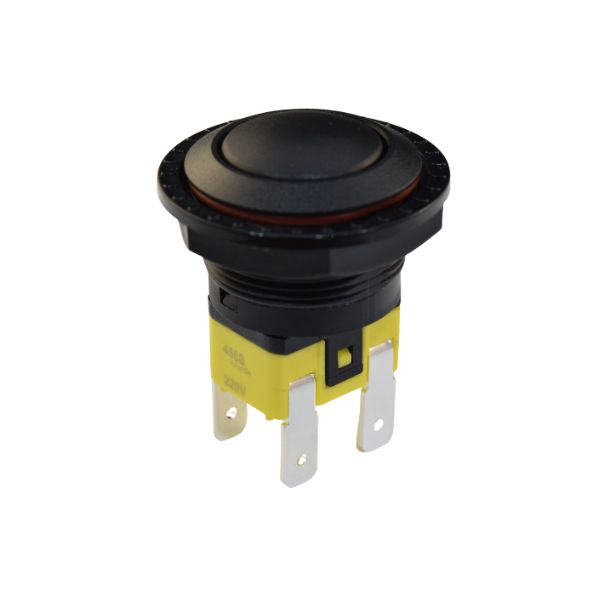

Pushbutton switches for rugged environments with IP68 front of panel protection offering a 16A electrical rating and significantly more current capability than typical anti-vandal style switches. They can be supplied with a stainless steel or plastic front-end with a contact block that does not need disassembly before mounting in the panel. Capable of withstanding a 92A in-rush current, these single or double-pole switches are particularly well suited to high-power AC applications with a choice of LED illumination.

  • Suitable for Ø 22 and 25mm cut-outs
  • IP68 ingress protection
  • Electrical rating 16(8)A 125/250V AC
  • Optional 8[128]A 250V~T55 1E4 (ENEC15)
  • Momentary or latching action
  • No disassembly required before mounting
  • Single or Double pole
  • Ring illumination
  • Metal and plastic thread options
  • Metal actuator available in plastic thread
  • Quick Connect, solder, or PCB terminal
  • ENEC and UL certified for worldwide use

16(8)A 125/250V AC

22 mm, 25 mm cut-out

IP66/67/68 Rated

IP68

92A Inrush protection

Industry - Markets at Lucid Electronics

Ideal for demanding applications

Enquire Now / Request a SampleView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Size (panel cut-out)
Configuration
Electrical Rating
Illumination Type
Housing
LED
Terminal Type
Datasheet
PS5-2101G-BUB-0PAC 22mm On-Off 16 (8)A 250V T125 / 55 200-250VAC Black Plastic Blue LED Q.C. 4.8 x 0.8 mm
PS5-2101N-BBA-0PAC 22mm On-Off 16(4)A 125/250V~ T55 None Black Plastic None Q.C. 4.8 x 0.8 mm pdf
PS5-2102G-BUA-0RAG10 22mm On-Off 16(4)A 125/250V~ T55 200-250VAC Metal Blue LED Q.C. 4.8 x 0.8 mm pdf
PS5-2103G-BUA-0RAC 25mm On-Off 16(4)A 125/250V~ T55 200-250VAC Metal Blue LED Q.C. 4.8 x 0.8 mm pdf
PS5-2M12M-AGD 22mm Momentary 24VDC 16RA (6-30VDC) T55 Metal Green LED Solder
PS5-2101G-BUA-0PAC 22mm On-Off 16(4) 125/250VAC~ T55 200-250VAC Black Plastic Blue LED Q.C. 4.8x0.8mm pdf
Electrical Rating up to 16(8)A 125/250V AC
Inrush Rating up to 92A
Function Latching and Momentary
Poles / Throws SPST, DPST
Termination Quick Connect, Solder, PCB
Illumination 125V AC, 250V AC, 12V DC
Actuator & Bushing Material Metal and plastic options
IP Rating IP68
Panel cut-out 22 mm, 25 mm,
Approvals UL, ENEC
Options Ring, power signal illumination

Specifications subject to change without notice.
