C2-526 series 360° Marine Navigation Stern and Masthead lamps

Home - Lighting - Work Lights - C2-526 series 360° Marine Navigation Stern and Masthead lamps

The C2-526 series is an LED low power consumption 360° all around navigation lamp meeting ABYC C-5 / COLREGS 72. The lens is made from a UV resistant polycarbonate making it durable and resistant to sun damage. It has a white polycarbonate housing and is also available in black. The Ingress protection rating IP67 meaning it is fully dust tight and weatherproof. The lamp offers 2 Nautical miles of visibility and is available as a masthead plus all around lamp, a Tri-colour navigation lamp combining Port, Starboard and Stern or solely as an all round lamp,.

9 – 33V

Narrow Flood Beam

Navigation

2 nm (nautical mile)

0.5W / 2.8W

IP66/67/68 Rated

IP67

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage
Power Consumption
Ingress Protection
Lamp Type
Housing Colour
Approvals
EMC
Minimum visibility range

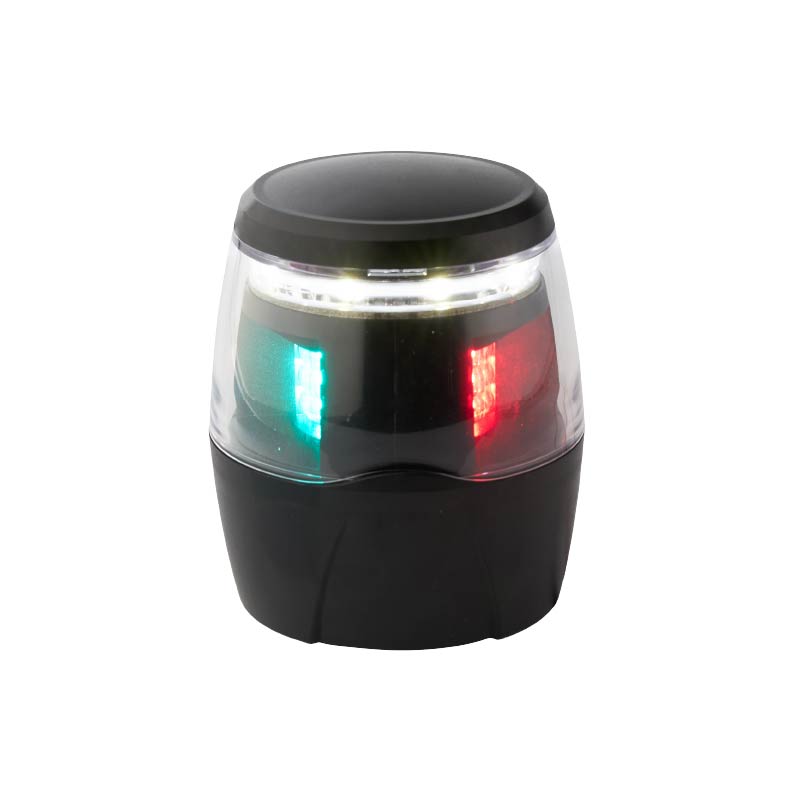

C2-526B 9-33 VDC All around 0.5W, Tri Colour 2.8W IP67 TRI Colour Navigation Lamp Black Polycarbonate COLREGs 72, USCG ABYC C-5 EN60945 2NM

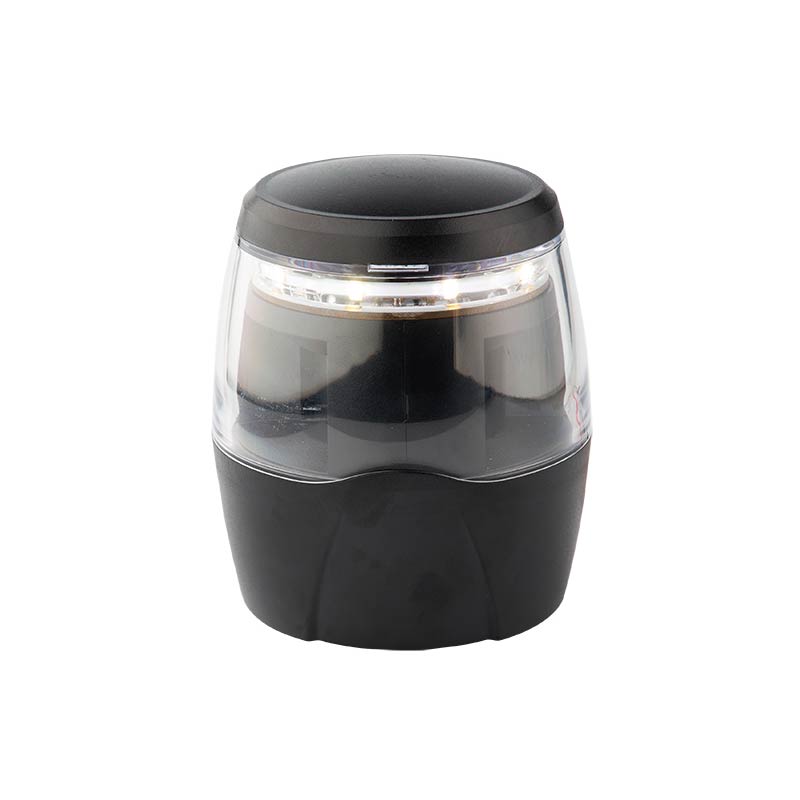

C2-526CB 9-33 VDC All around 0.5W, Masthead 1W IP67 Masthead / All around Lamp Black Polycarbonate COLREGs 72, USCG ABYC C-5 EN60945 2NM

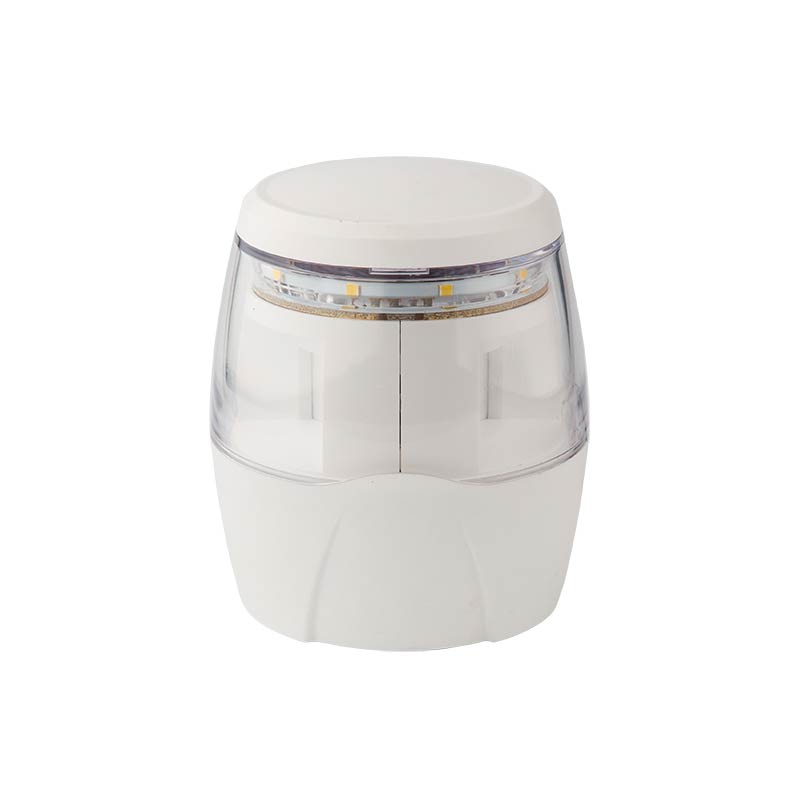

C2-526CW 9-33 VDC All around 0.5W, Masthead 1W IP67 Masthead / All around Lamp White Polycarbonate COLREGs 72, USCG ABYC C-5 EN60945 2NM
C2-526DB 9-33 VDC All around 0.5W IP67 All around lamp Black Polycarbonate COLREGs 72, USCG ABYC C-5 EN60945 2NM
C2-526DW 9-33 VDC All around 0.5W IP67 All around lamp White Polycarbonate COLREGs 72, USCG ABYC C-5 EN60945 2NM
Lamp Specification Port side, Starboard, Masthead, Stern, Tri-Colour
LED
No of LEDs
Lens Design
Vessel suitability Below 20m
Minimum visibility 2NM
Voltage 9-33 VDC
Power Consumption 0.5 ~ 2.8 W
Operating Temp Range -30°C...+65°C
Ingress Protection Rating IP67
Housing Material Polycarbonate
Lens Material Polycarbonate
Termination Terminal block connector
Dimensions 101.5 x 85 mm
Mounting Style 3 Screws
EMC EN 60945
Approvals COLREGs 72, ABYC C-5

Specifications subject to change without notice.
