USB-A / USB-C Couplers

Home - Connectivity - USB Charging Connectors - USB-A / USB-C Couplers

Flush mounting USB couplers for 22mm panel cutouts

Flush mounting Female to Female couplers with a 5Gb/s data transmission speed and rated 1A / 5V for power, designed for use with 22mm panel cut outs.

The couplers are available in USB-A, USB-C and Dual USB-A configurations, manufactured in Zinc alloy with a bezel finished in either Black or Silver, and come complete with a locking nut for fixing to the rear of a panel.

These are ideally suited in applications where devices such as mobiles phones, laptops, tablets and other USB enabled devices may require charging, power or data connection, e.g. smart offices, A/V, public spaces, convenience charging, commercial spaces, residential installations.

Also available with prewired pigtail on request.

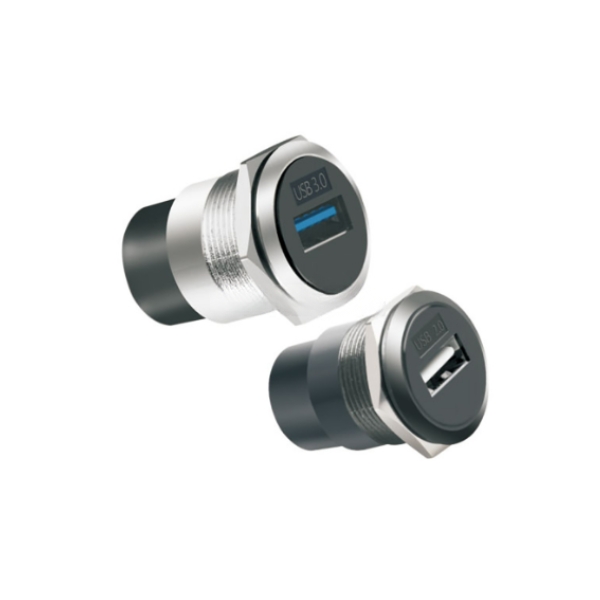

  • USB-A 3.0 / USB-C / Dual USB-A 3.0 Female - Female sockets

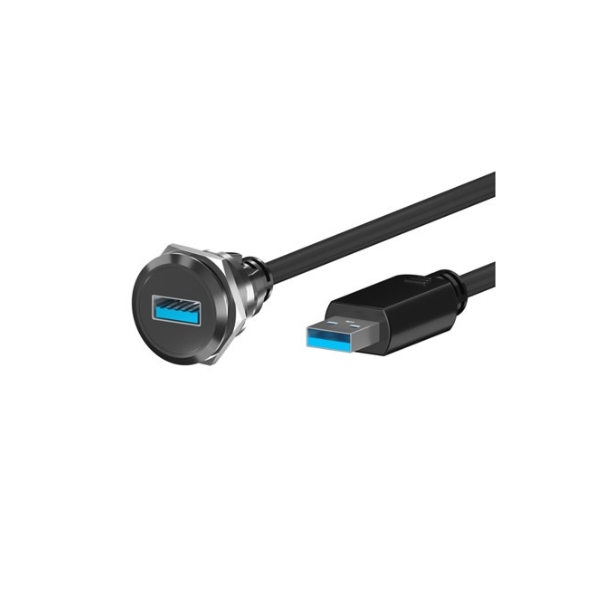

  • USB-A 3.0 available with 250mm Male pigtail
  • Zinc alloy bezel with Nylon insert
  • Standard 22mm panel size
  • Fixing with included Nickel plated Brass locknut
  • Rubber 'O'-ring for firm fixing and anti-vibration
  • Black or Silver bezel finish
  • CE / ROHS compliant

USB-A 3.0 /    USB-C

22mm panel mount

1 – 2 Ports

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Connection Type
External Connection
Internal Connection
Colour
Datasheet
ST-LW027-BK USB-C Female Socket Female Socket Black
ST-LW027-SL USB-C Female Socket Female Socket Silver
ST-LW028-BK Dual USB-A Female Socket Female Socket Black
ST-LW028-SL Dual USB-A Female Socket Female Socket Silver
ST-LW015-BK USB-A Female Socket Female Socket Black
ST-LW015-SL USB-A Female Socket Female Socket Silver
ST-LW015A-BK USB-A Female Socket Male 250mm Pigtail Plug Black
ST-LW015A-SL USB-A Female Socket Male 250mm Pigtail Plug Silver
Connection Type USB-A 3.0 / USB-C Female Coupler
Ports 1 (USB-A / USB-C) or 2 (USB-A)
Body Colour Black
Bezel Colour Black / Silver
Material Zinc Alloy / Nylon
Panel Cutout 22mm
Fixing Rear panel with hex locknut and rubber 'O'-ring for anti-slip

Specifications subject to change without notice.
