R13-569E Push Button Engine Start switch

Home - Switches & Indicators - Pushbutton Switches & Indicators - R13-569E Push Button Engine Start switch

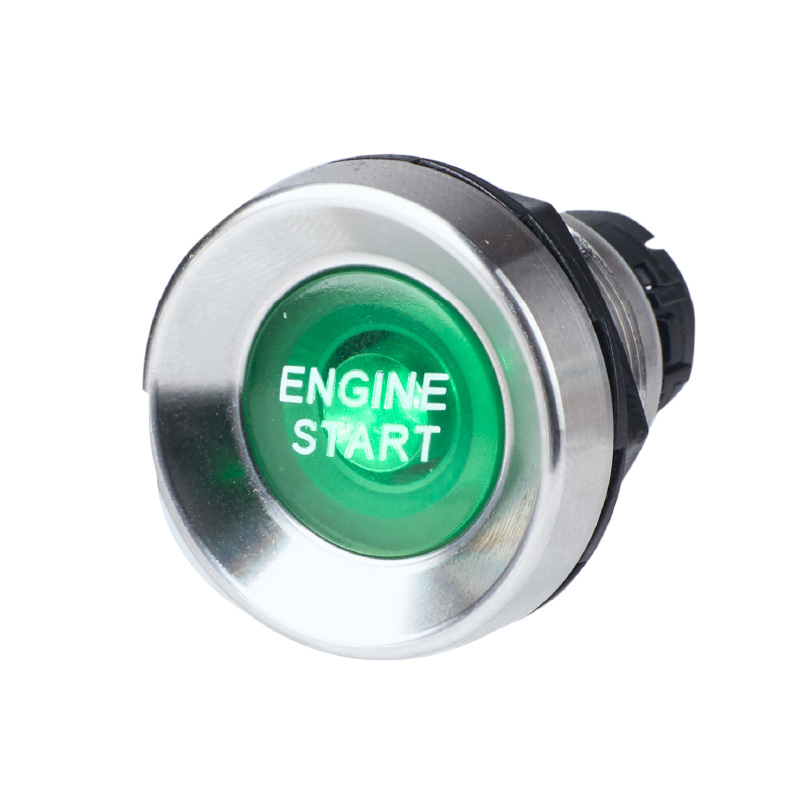

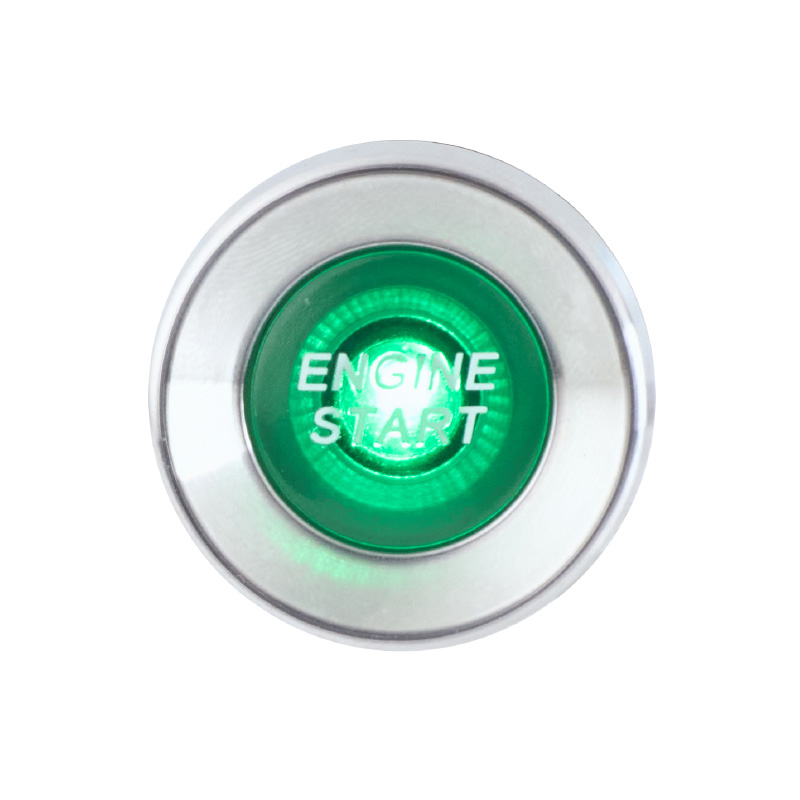

This 3P SPST OFF-(ON) switch is an aesthetically pleasing IP67 rated push button, engine start switch that can offer a choice of illumination or be supplied as non illuminated. Lens and LED colours include Green, Blue, Red and Amber.
The Panel mount switch has a 22mm cut out and is rated up to 10A for 14VDC and 5A for up to 28VDC. The body of the switch is Nylon 66, Glass fibre reinforced plastic and the button is Polycarbonate. An ingress protection above the panel rating of IP67 when used with the supplied panel seal.

  • 10 Amp 14VDC / 5A 28VDC Rating
  • 3P SPST OFF-(ON)
  • LED illuminated with choice of colour
  • Panel mount 22mm cut out.
  • Suitable for recreational, specialist and commercial vehicles
  • Ingress protection above Panel to IP67

14~28VDC

10A ~14VDC, 5A~28VDC

3P SPST OFF-(on)

IP66/67/68 Rated

IP67

22mm

Enquire Now / Request a SampleView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Lens
Housing
Frame
LED colour
Terminal type
Ingress Protection
Datasheet
R13-569E2-15-61GG-1 10A 14VDC 3P SPST OFF-(ON) Green Polycarbonate Black Nylon Aluminium Green 2.8mm Quick fit IP67 pdf
R13-569E2-15-61UU-1 10A 14VDC 3P SPST OFF-(ON) Blue Polycarbonate Black Nylon Aluminium Blue 2.8mm Quick fit IP67
R13-569E2-15-61UU-1 5A 28VDC 3P SPST OFF-(ON) Amber Polycarbonate Black Nylon Aluminium Amber 2.8mm Quick fit IP67
Max. Voltage Rating 14- 28 VDC ,
Rating 10A~14VDC, 5A~28VDC
Insulation Resistance DC 500V 100M Ohm max
Dielectric Strength AC 1500V 1 Minute
Operation 3P SPST Off~(on)
Ingress Protection Rating IP67 (above panel)
Operating Temperature 0 ~ 85°C
Mounting hole size 22mm
Contact resistance 50m ohm maximum
Illumination Red, Green, Blue and yellow options

Specifications subject to change without notice.
