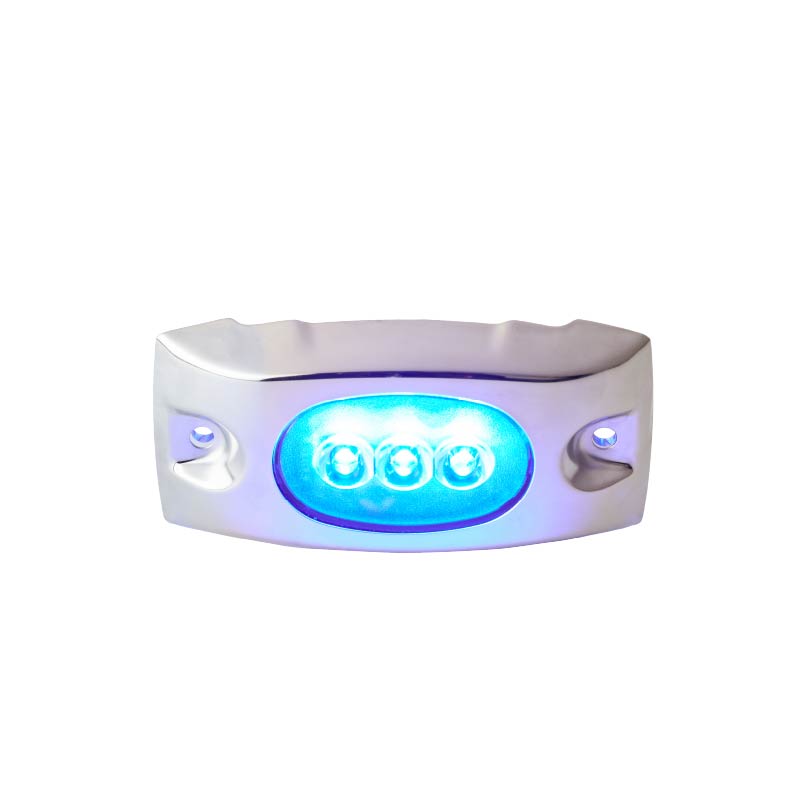

C2-524 Series Miniature Marine LED underwater Light
Compact yet powerful, the C2-524 series is a miniature underwater LED light designed for energy efficiency and lasting performance. Engineered with an aluminium body and sealed to IP68, it comes pre-terminated with 600 mm of VDE-approved cable for reliable installation. Its refined design not only enhances the aesthetic appeal of any vessel but also serves a practical role, illuminating marine life and improving visibility in low-light conditions. Intended for use exclusively below the waterline, the C2-524 is available with either an aluminium or polycarbonate housing, both featuring a durable polycarbonate lens. Offered with a choice of three white or three blue LEDs, it meets EN60945 certification, ensuring full compliance with marine electromagnetic compatibility standards.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
| Housing Shape | Rectangular |
| Beam Pattern | Flood |
| Raw Lumen Output | |
| Effective Lumen Output | 998 lm ~ white |
| Colour Temperature | 5700K |
| Voltage | 12~24 VDC |
| Nominal Current at | |
| Power Consumption: | 11 W |
| Ingress Protection Rating | IP68 |
| Shock Resistance | |
| Operating Temp Range | underwater operation only |
| Housing Material | Polycarbonate / Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 106.7 x 61.4 x 15 mm |
| Mounting Style | 2 screws |
| Termination | 600mm wire |
| EMC | EN60945 |
| Approvals |
Specifications subject to change without notice.
