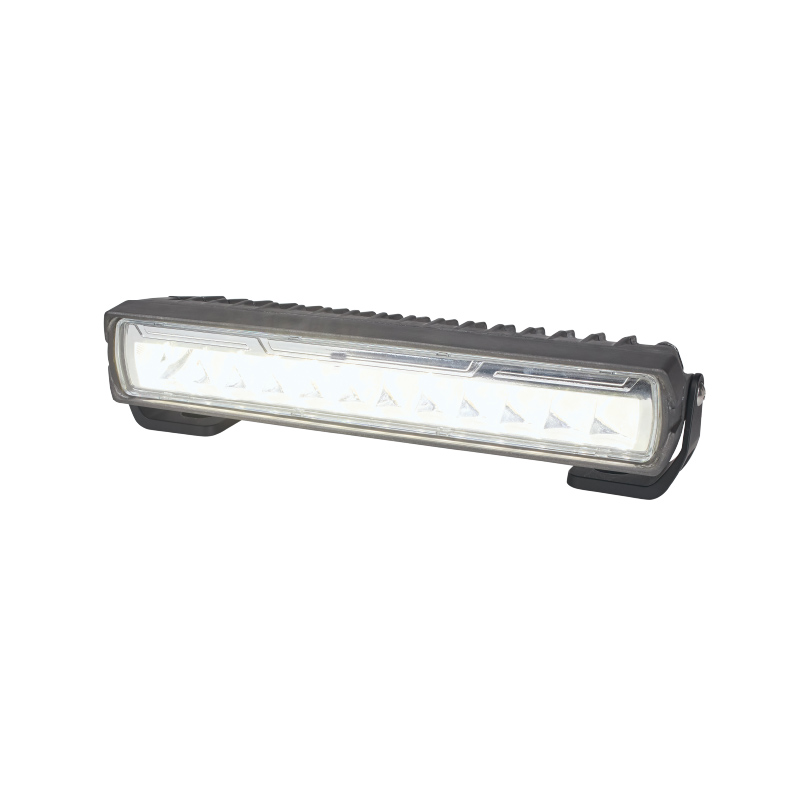

C2-3028 LED Light Bar (350mm)

The C2-3028 is a heavy-duty LED Work light bar designed for off-road applications. It features an aluminium housing and a polycarbonate lens. It provides 5600 lm of bright and targeted spotlight illumination. Operating within a voltage range of 10-33VDC, it ensures reliable lighting with low 27W energy usage. The light bar is designed to withstand harsh conditions, with an IP68 / IP69K rating for protection against dust and water, and it offers excellent 10G shock resistance. Approved under ECE R10 and ISO 13766, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light, improving visibility in low-light conditions. It has sturdy end brackets with four-screw mounting points to ensure extra stability. This light bar is ideal for use in off-road, specialist, agricultural, and construction vehicles.

10 – 33V

Ultra wide Flood

5600 lm

27W

IP66/67/68 Rated

IP68 / IP69K

Download DatasheetView Related Products

Swipe to Browse

Housing Shape Rectangular
Beam Pattern Ultra wide Flood
Raw Lumen Output 5600Lm
Effective Lumen Output 2500Lm
Colour Temperature 5700K
Voltage 10 - 33 VDC
Nominal Current at
Power Consumtion 27W
Ingress Protection Rating IP68 / IP69K
Shock Resistance 10G
Operating Temp Range -30°C...+65°C
Housing Material Aluminium
Lens Material Polycarbonate
Dimensions 358.2 x 82.8 x 83.5mm
Mounting Style Four Bolts
Approvals ECE R10, ISO13766,

Specifications subject to change without notice.
