X7 IP67

Home - Switches & Indicators - Rocker Switches - X7 IP67

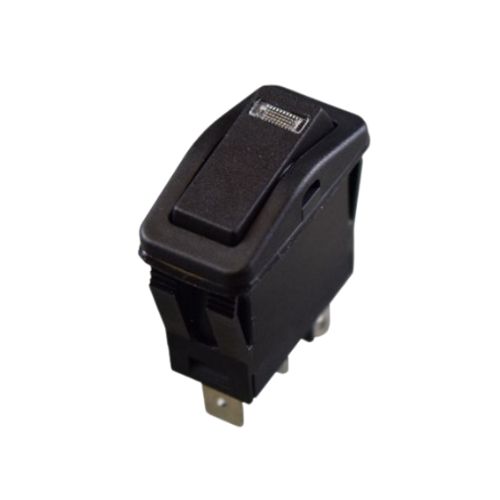

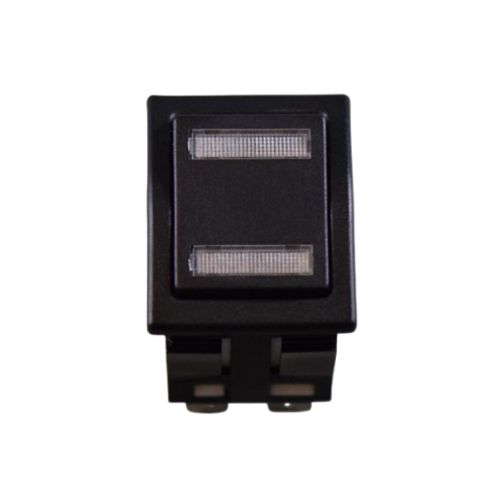

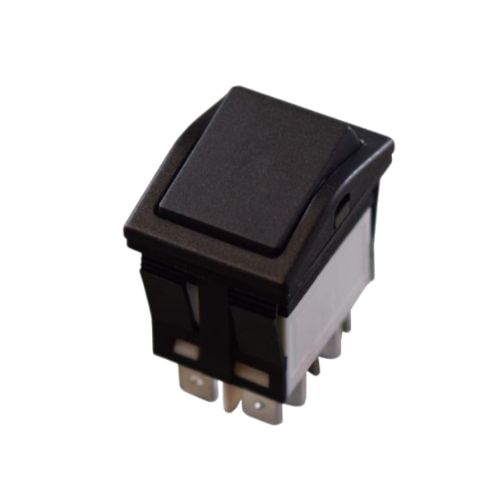

The X7-series offers extremely rugged, high current switching in a compact package. IP67 sealing provides protection against water and dust ingress while UL and ENEC certification makes the X7-series suitable for worldwide use. Ideal for use in outdoor environments and applications, these single or double-pole switches are rated up to 25(8)A 125/250V AC, 16A 6-48V DC. A variety of single or double throw momentary and maintained circuit variants are on offer, in addition to various illumination types, LED colours and terminals.
  • Rugged panel mount switches
  • Rated up to 25(8)A 125/250V AC, 16A 6-48V DC
  • IP67 sealed against water and dust ingress
  • Panel cut-out 22 x 30.2 mm (full body) or 13.8 mm (half body)
  • Quick Connect or solder terminal options
  • Single or dual LED illumination available
  • Mechanical service life min. 30000 cycles
  • ENEC and UL certified

25(8)A 125/250V AC, 16A 6-48V DC

22 x 30.2 mm or 13.8 mm x 30.2 mm cut-out

T125/55

IP66/67/68 Rated

IP67

Industry - Markets at Lucid Electronics

Ideal for demanding applications

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
IP Rating
Terminal Type
Illumination
Legend Marking
Datasheet
X7-H10F2N-NBBB-1NWC 20(8)A 125/250VAC Single pole On Off (half body) IP67 Q.C. 6.3 x 0.8 mm Non-illuminated - pdf
X7-H10F3W-NBBC-1NWC 25(8)A 125/250VAC Single pole On Off (half body) IP67 Q.C. 6.3 x 0.8 mm Non-illuminated ON OFF pdf
X7-H10F3W-NBBB-1NWC 20(8)A 125/250VAC Single pole On Off (half body) IP67 Q.C. 6.3 x 0.8 mm Non-illuminated ON OFF pdf
X7-H11F2N-NBBB-5NWC 20(8)A 125/250VAC Single pole On Off (half body) IP67 Solder Non-illuminated - pdf
X7-H30F3W-NBBB-1NWC 20(8)A 125/250VAC Single pole On-Off-On (half body) IP67 Q.C. 6.3 x 0.8 mm Non-illuminated ON OFF pdf
X7-210F2N-LBBA-1WWC 16(8)A 125/250VAC Double pole On-Off IP67 Q.C. 6.3 x 0.8 mm Non-illuminated - pdf
Electrical Rating up to 25(8)A 125/250V AC, 16A 6-48V DC
Poles / Throws SPST, SPDT, DPST, DPDT
Function On-Off, On-On, On-Off-On, (On)-Off, (On)-On, (On)-Off-(On), (On)-Off-On
Illumination 125V AC, 250V AC, 12V DC, 24V DC
Termination Quick Connect, Solder
IP Rating IP67
Operating Temperature Range up to T125/55
Approvals UL, ENEC
Panel cut-out 22 x 30.2 mm (full body), 13.8 mm (half body)
Options Various illumination styles and colours

Specifications subject to change without notice.
