PS5 Pushbutton



PS5 High inrush pushbutton

Home - Switches & Indicators - Pushbutton Switches & Indicators - PS5 High inrush pushbutton

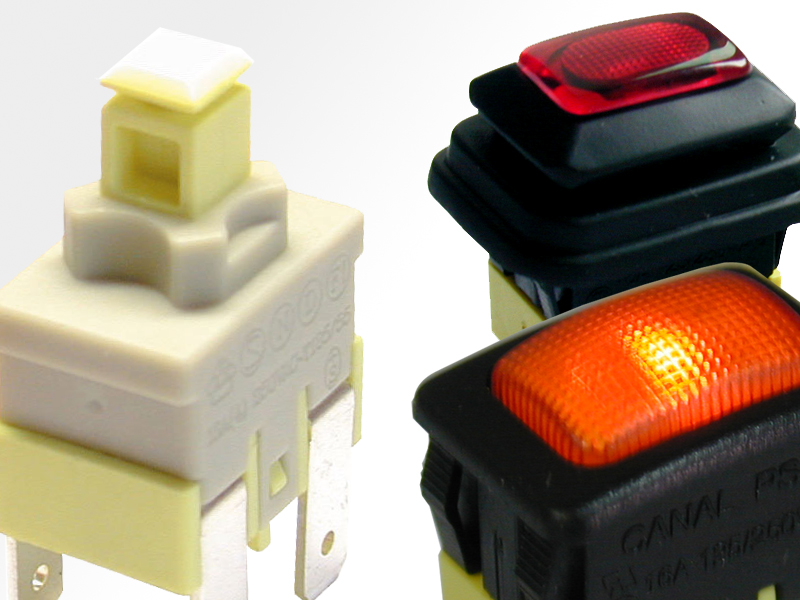

PS5 snap in rectangular push button requiring a 19.2mm x 12.9mm mounting hole cut out. It is a SPST latching switch with a rating of 16(4)A 125/250V AC and is certified according to VDE, UL and ENEC standards. With the capability to withstand up to 128A inrush current, it guarantees reliable performance even in demanding conditions.

  • Snap in Rectangular 13 x 19mm cut-out
  • Up to IP65 ingress protection
  • Both illuminated and non illuminated with up to 16(8)A 250VAC
  • Housing Material :- Nylon 66/PBT UL rated 94V-2minute
  • Actuator Material :- Nylon 66/PC UL rated 94V-2minute
  • Contacts :- Silver Alloy
  • Capable of withstanding up to 128A inrush current
  • Switch forms :- SPST, DPST
  • Terminal options :- Quick Connect, Solder and PCB

16(4)A 125/250V AC

13 x 19 mm cut-out

T125/55

128A Inrush protection

Industry - Markets at Lucid Electronics

Ideal for demanding applications

Enquire Now / Request a SampleView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Configuration
Electrical Rating
Actuator type
Illumination
Terminal Type
Datasheet
PS5-110-KNBB-SB1 S.P.S.T. On-Off 16(4)A 250V AC T125/55 Button No Illumination Q.C. 4.8 x 0.8 mm pdf
PS5-212LN-AYA-3LBC D.P.S.T. On-Off 16(4)A 125-250V AC T55 Shaft No Illumination PCB
Electrical Rating up to 16(8)A 125/250V AC
Dielectric Withstand Voltage 1000VAC for 1 minute
Function Latching and Momentary
Poles / Throws SPST, DPST
Termination Quick Connect, Solder, PCB
Illumination 12VDC, 100-125VAC, 200-250VAC
Operating Temperature Range T125/55
Accessories IP65 rubber boot
Panel cut-out 13 x 19 mm
Contact Resistance 20mΩ max
Approvals UL, ENEC

Specifications subject to change without notice.
