G12 Basic Limit Switches
G12 basic limit switches offer reliable and precise repeatability. Ruggedly constructed in a phenolic housing they are used in a very wide number of applications. Available in 16A, 22A and 26A versions they are supplied with screw terminals and a variety of actuators. Common in applications such as elevators, hoists, packaging equipment, conveyors, machine tools and where travel limit protection is required.
- Precise operation repeatability
- Compact switch rated up to 26A 125/250V AC
- Wide choice of actuators
- Operating temperature range from -40°C up to 80°C
- High temperature resistant phenolic housing
- Available with screw terminals
- Long mechanical life
- Electrical service life ≥50,000 cycles
- ENEC and UL certified
up to 26A 125/250V AC
S.P.S.T. N.O, S.P.S.T. N.C, S.P.D.T.
-40°C up to 80°C
High temperature resistant phenolic
Ideal for automation
Enquire Now / Request a SampleView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Actuator
|
Electrical Rating
|
Contact configurations
|
Terminal Type
|
Operating frequency (Electrical)
|
Operating frequency (Mechanical)
|
Datasheet
|
|---|---|---|---|---|---|---|---|
| G12 26 1 R1 A A | Pin Plunger | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 26 1 RD1 A A | Button | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 26 1 RQ1 A A | Panel mount push button | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |

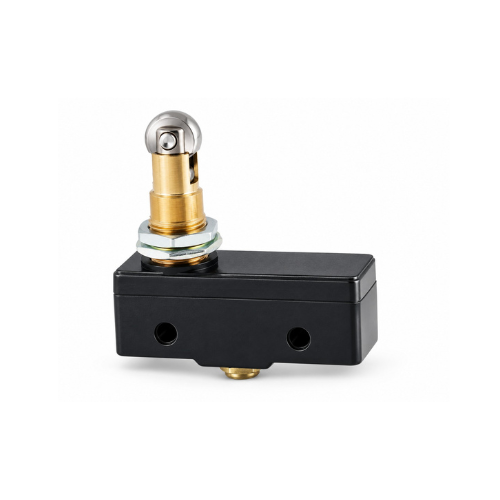

| G12 26 1 RQ2 A A | In line Roller button | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 26 1 RQ3 A A | Off set roller button | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 26 1 RW1 A A | Long lever | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 26 1 RW2 A A | Short Lever | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |

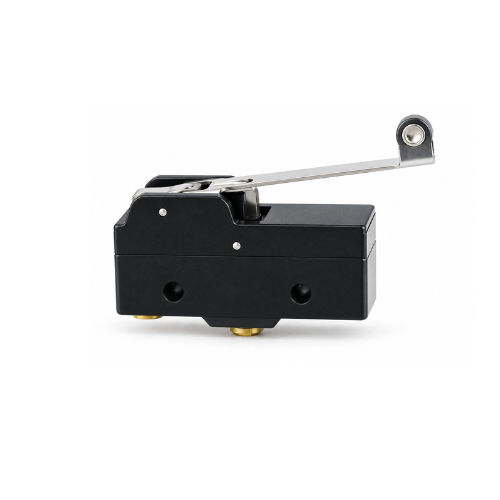

| G12 26 1 RW3 A A | Roller Lever | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 26 1 RW4 A A | Short Roller Lever | 26A 125/250/480VAC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 R1 A A | Pin Plunger | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RD1 A A | Button | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RQ1 A A | Panel mount push button | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RQ2 A A | In line Roller button | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RQ3 A A | Off set roller button | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RW1 A A | Long lever | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RW2 A A | Short Lever | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RW3 A A | Roller Lever | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min | |
| G12 16 1 RW4 A A | Short Roller Lever | 16A 125/250, 10A 30VDC | S.P.D.T. | Screw | 10 - 30 cycles / min | 240 cycles / min |
| Electrical Rating | 16A, 22A, 26A 125/250VAC, 10A 30VDC |
| Poles / Throws | SPST NO, SPST NC, SPDT |
| Actuator | Button, Lever, Roller lever |
| Terminals | Screw |
| Housing Material | Phenolic |
| Electrical service life | 50,000 cycles |
| Mechanical service life | 200,000 cycles |
| Operating Temperature Range | -40°C up to 80°C |
| Approvals | UL, ENEC |
Specifications subject to change without notice.
