C2-520 series Marine Navigation lamp

Home - Lighting - Work Lights - C2-520 series Marine Navigation lamp

The C2-520 is a series of navigation lights designed for vessels under 20m, available in Masthead, Port, Starboard, Stern and Bi-colour options. Visibility reaches 3NM with beam angles up to 225° (model dependent), in full compliance with ABYC A-16 regulations, ensuring reliable and safe performance at sea. Built to withstand harsh marine environments, the C2-520 range is shock and vibration resistant, rated IP67, and supplied with a choice of either polycarbonate or stainless steel housings and a UV resistant PMMA lens. With very low power consumption and a rugged design, these lamps ensure long-lasting, efficient operation. Each unit is terminated with a 2,000mm cable for straightforward installation.

9 – 33V

Narrow Flood Beam

Navigation

2/3 nm

1W

IP66/67/68 Rated

IP67

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage
Power Consumption
Ingress Protection
Lamp type
Housing Material
EMC
Approvals
Operating Temperature
Minimum Visibility Range

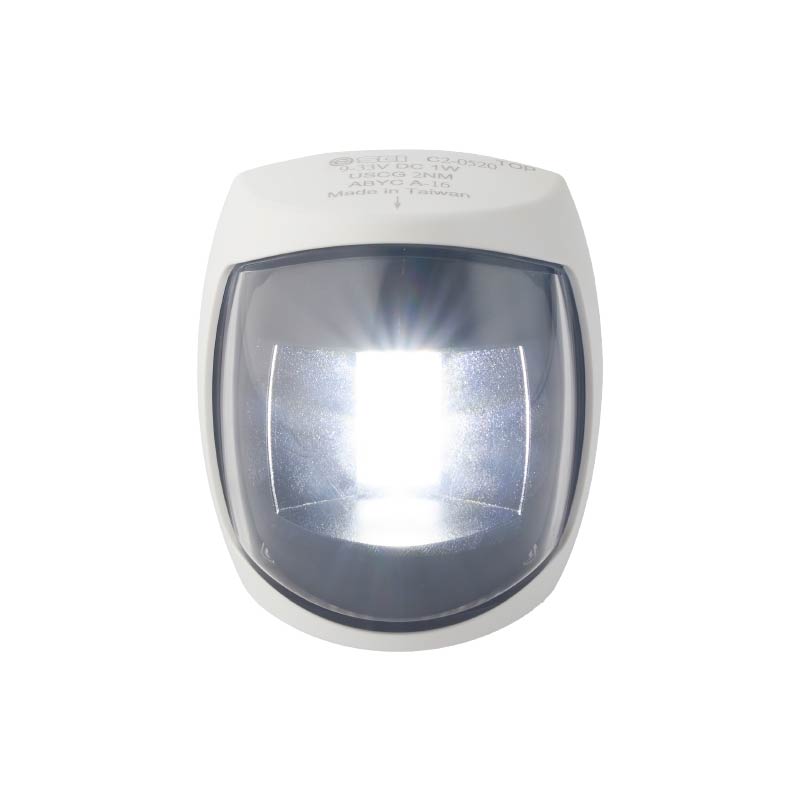

C2-520PB1 9-33 VDC 1W IP67 Stern Navigation Lamp Polycarbonate EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM

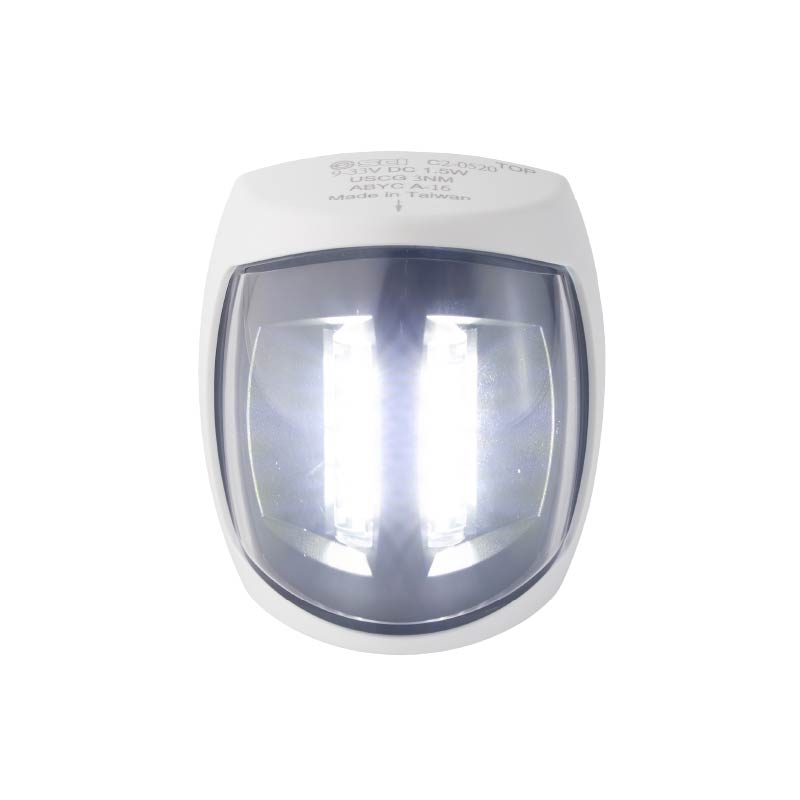

C2-520PM1 9-33 VDC 1.4W IP67 Masthead Navigation Lamp Polycarbonate EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 3NM
C2-520SB1 9-33 VDC 1W IP67 Stern Navigation Lamp Stainless Steel EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM
C2-520SSG 9-33 VDC 1W IP67 Starboard Navigation Lamp Stainless Steel EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM

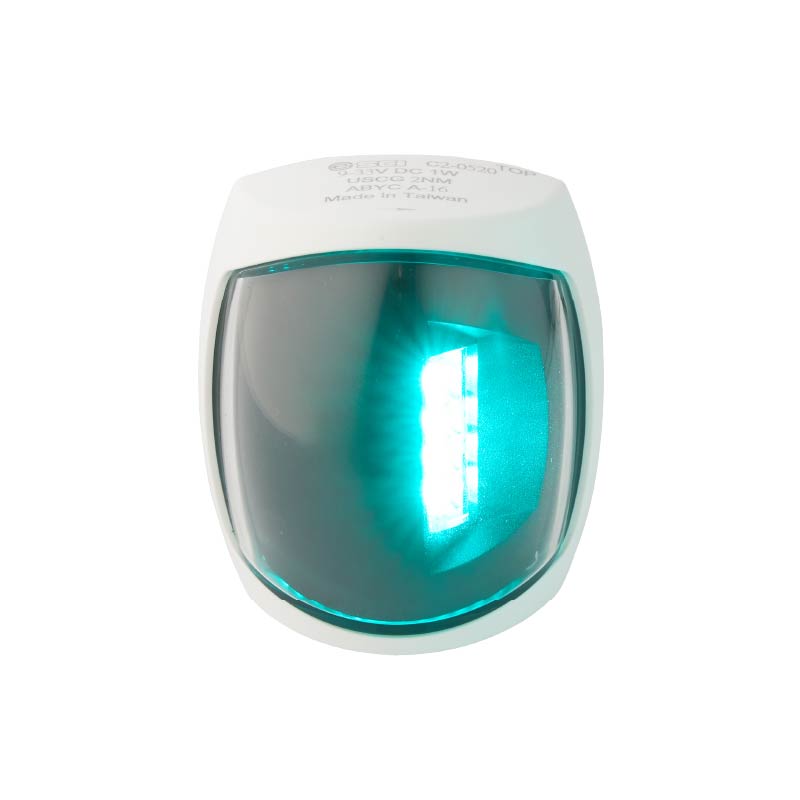

C2-520PSG 9-33 VDC 1W IP67 Starboard Navigation Lamp Polycarbonate EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM

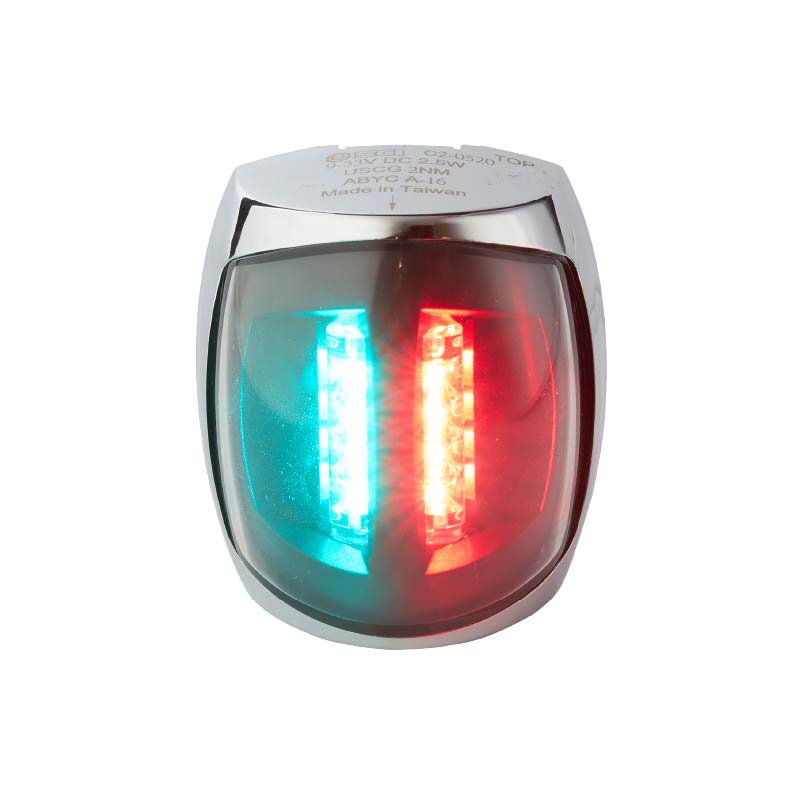

C2-520SGR 9-33 VDC 2.5W IP67 Bi-Colour Navigation Lamp Stainless Steel EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM
C2-520PGR 9-33 VDC 2.5W IP67 Bi-Colour Navigation Lamp Polycarbonate EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM
C2-520SSR 9-33 VDC 1W IP67 Port Navigation Lamp Stainless Steel EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM
C2-520PSR 9-33 VDC 1W IP67 Port Navigation Lamp Polycarbonate EN60945 COLREGs 72, USCG ABYC C-5 -30°C ~ +65°C 2NM
Lamp Specification Port side, Starboard, Masthead, Stern, Bi-Colour
LED SMD Red
No of LEDs 4
Lens Design 112.5°
Vessel suitability Below 20m
Minimum visibility 2NM / 3NM
Voltage 9-33 VDC
Power Consumption 1 W
Operating Temp Range -30°C...+60°C
Ingress Protection Rating IP67
Housing Material Stainless steel / Polycarbonate
Lens Material Polymethyl Methacrylate (PMMA)
Termination 2,000mm wire
Dimensions 93.3 x 80.6 x 50 mm
Mounting Style 4 Screws
EMC EN 60945
Approvals COLREGs 72, ABYCA-16, ABYC C-5

Specifications subject to change without notice.
