Ventilation Plugs Metal

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Ventilation Plugs Metal

Enclosure ventilation and moisture control in Aluminium & Stainless Steel

Breathable vent plugs manufactured in Aluminium or Stainless Steel offer reliable pressure equalisation to prevent condensation inside sealed enclosures. By balancing internal and external pressure, they protect against moisture, corrosion, and short circuits, eliminating the need for costly heating or ventilation systems. Rated up to IP68 and featuring durable, breathable Acrylic copolymer on nylon-support membranes, these solutions enhance safety, extend service life, and reduce maintenance in harsh environments.

Use the Bimed VentCalculator to work out your required pressure compensation.
  • Designed to provide reliable pressure equalization inside sealed housings and enclosures
  • Prevents the formation of water condensation and protects against damage caused by pressure differences
  • Extends the service life of equipment by reducing stress on enclosure gaskets and seals
  • Provides effective protection against water, dust and contaminants while allowing controlled airflow
  • Manufactured from high-quality, corrosion-resistant stainless steel
  • Suitable for indoor, outdoor, and harsh industrial environments
  • Available in types that provide ventilation performance from very low to very high levels, depending on application needs
  • Offered with different mounting options, including threaded connection or snap-in installation

M4 – M40

IP66/67/68 Rated

IP68 / IP67

Air Flow 4l/h to 2200l/h

Water Intrusion Pressure 0.1 – 0.9 bar

-45°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

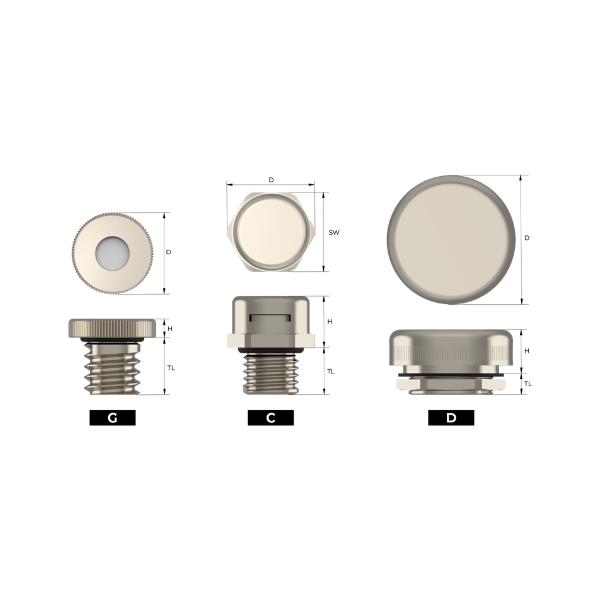

Thread size
Material
Thread Length (mm)
Air Flow Rate (lh)
Water Intrusion Pressure
Spanner Width (mm)
Outer Diameter
Height (mm)
Design Type
Data sheet

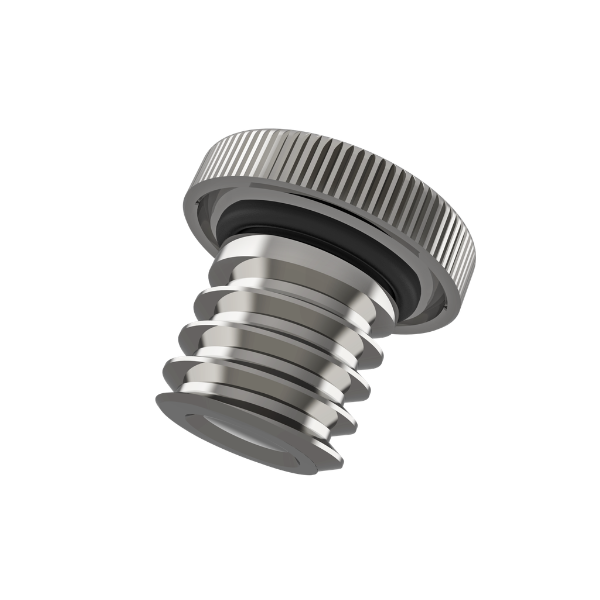

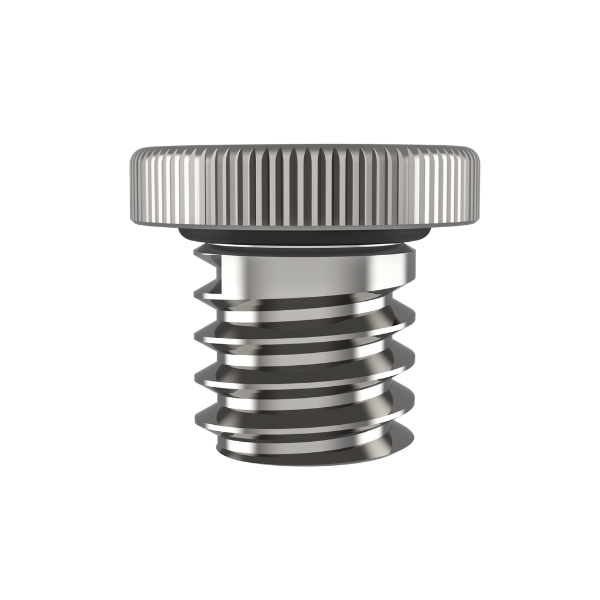

M4 x 0.7 Aluminium 3.1 4 - 100 0.9, 0.5, 0.2, 0.1 Knurled Head 12.3 2.7 G Vent Plugs Metal
M8 x 0.75 Aluminium 8 4 - 100 0.9, 0.5, 0.2, 0.1 Knurled Head 12.3 2.7 G Vent Plugs Metal
M12 x 1 Stainless Steel 10 16 - 300 1, 0.5, 0.2, 0.1 17 18.8 11 C Vent Plugs Metal
M12 x 1.5 Stainless Steel 6 - 10 16 - 300 1, 0.5, 0.2, 0.1 17 18.8 11 C Vent Plugs Metal
M16 x 1.5 Stainless Steel 6 - 10 16-300 1, 0.5, 0.2, 0.1 18 20 12 - 16.1 C Vent Plugs Metal
M20 x 1.5 Stainless Steel 6 - 10 13 - 300 1, 0.5, 0.2, 0.1 22 24.5 13 - 17.1 C Vent Plugs Metal

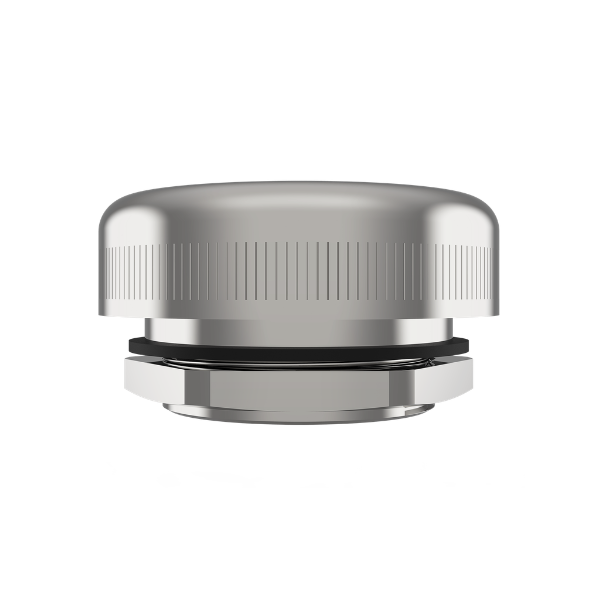

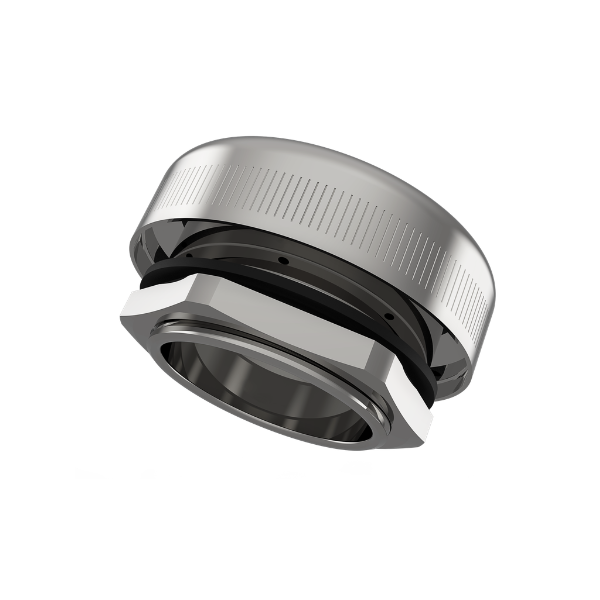

M40 x 1.5 Stainless Steel 10 120 - 2200 0.9, 0.5, 0.2, 0.1 Knurled Head 58 20.5 D Vent Plugs Metal
Thread Metric M4 - M40
Material Aluminium / Stainless Steel (1.4305/303)
IP Rating IP68 / IP67 (for water intrusion pressure 0.1 bar)
Temperature Rating Permanent -40°C to +100°C / Intermittent -45°C to +150°C
Vent Membrane Material Acrylic copolymer on nylon-support
O Ring Material Nitrile Butadiene Rubber (NBR)
Accessories Metal Locknuts, Gaskets
Head variants Knurled, Hexagon

Specifications subject to change without notice.
