PS5 VR
Vandal resistant switches with IP65 front of panel protection and IK07 impact rating. Offering a rugged design but with 16A electrical rating, significantly more current capability than typical anti-vandal style switches. The Stainless Steel front-end can be easily interchanged, making for easy snap-in assembly. Capable of withstanding high in-rush current, these single or double-pole switches are particularly well suited to high-power AC applications.
- Suitable for Ø 19, 22, 25 and 30mm cut-outs
- IP65 ingress protection and IK07 impact protection
- Electrical rating 16(8)A 125/250V AC
- Optional 8[128]A 250V~T55 1E4 (ENEC15)
- Momentary or latching action

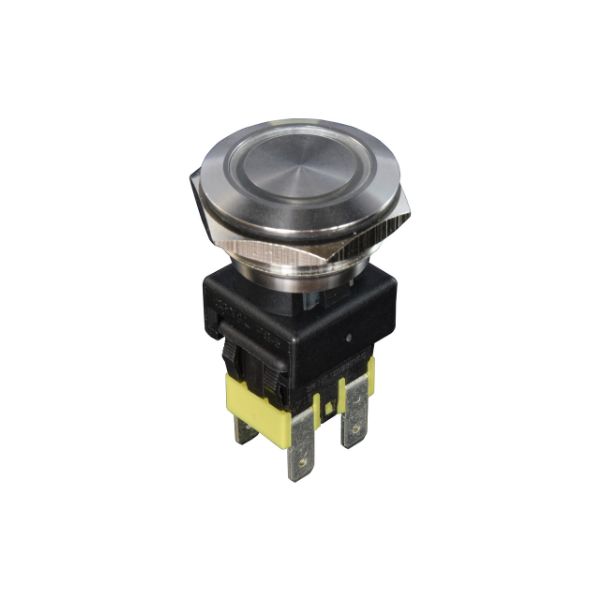

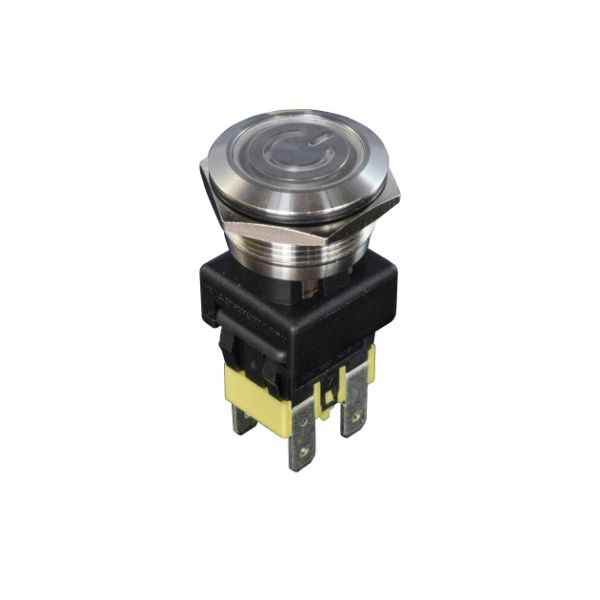

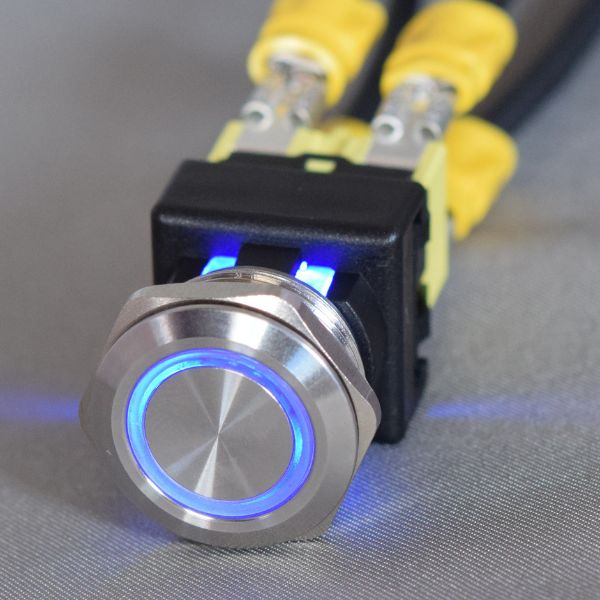

- Ring and power symbol illumination
- Quick Connect, solder, or PCB terminal options
- ENEC and UL certified for worldwide use
16(8)A 125/250V AC
19 mm, 22 mm, 25 mm, 30 mm cut-out
IP65
Inrush rating 92A
Ideal for demanding applications
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Size (panel cut-out)
|
Configuration
|
Electrical Rating
|
Illumination Type
|
Terminal Type
|
Datasheet
|
|---|---|---|---|---|---|---|
| PS5-210MH-BUD-0RAC | 19mm | On-Off | 16RA (6~30 VDC) T55 | Blue LED 12 VDC | Q.C. 4.8 x 0.8 mm | |
| PS5-210RL-BUA-0PAF6 | 25mm | On-Off | 16(4)A 125/250V~ T55 | Blue LED 100~125 VAC | Q.C. 4.8 x 0.8 mm | |
| PS5-2M0QG-BUA-0RAF6 | 22 mm | Momentary | 16(4)A 125/250V~ T5 | Blue LED 100~125 VAC | Q.C. 4.8 x 0.8 mm | |
| PS5-210QG-BUA-0RAF6 | 22 mm | On-Off | 16(4)A 125/250V~ T55 | Blue LED 100~125 VAC | Q.C. 4.8 x 0.8 mm |
| Electrical Rating | up to 16(8)A 125/250V AC |
| Inrush Rating | up to 92A |
| Function | Latching, Momentary |
| Poles / Throws | SPST, DPST |
| Termination | Quick Connect, Solder, PCB |
| Illumination | 125V AC, 250V AC, 12V DC |
| Actuator & Bushing Material | Stainless Steel |
| IP Rating | IP65, IK07 |
| Panel cut-out | 19 mm, 22 mm, 25 mm, 30 mm |

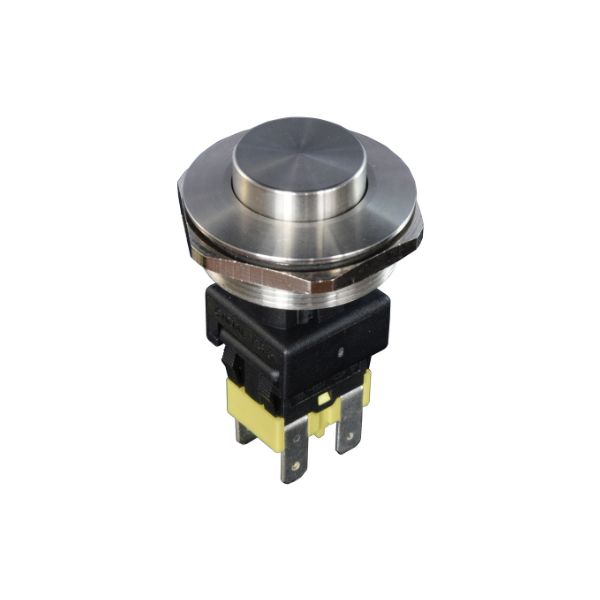

| Actuator Types | Raised, flush |
| Approvals | UL, ENEC |
| Options | Ring, power signal illumination |
Specifications subject to change without notice.
