Home - Switches & Indicators - Vandal Resistant Switches - PK

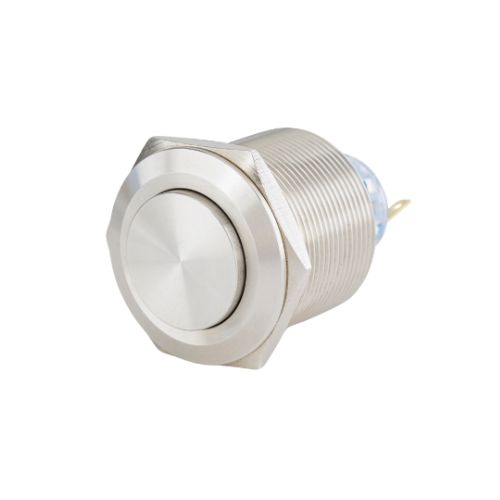

Robust, reliable vandal resistant switches available in Nickel Plated Brass, Stainless Steel (303, 304 or 316-grade) or Anodized Aluminium, highly resistant to wear and tear, and the rigours of harsh, industrial environments and public spaces. In addition to pushbutton types with momentary or latching action, additional variants include Emergency Stop (twist to release), Buzzer, Selector and Key Lock switches.
  • Suitable for Ø 19, 22, 25 and 28mm cut-outs
  • High mechanical and electrical service life
  • IP68 ingress protection and IK10 impact protection
  • Optional IP69K variant available
  • Electrical rating 6A 125/250V / 6A 3~48VDC
  • Spot, ring and power symbol illumination incl. bi-colour LED's
  • S.P.S.T. and D.P.D.T. configurations
  • Quick Connect, solder, PCB or screw terminal options
  • Behind panel sealing available with wire leads.
  • ENEC and UL certified for worldwide use
  • Emergency stop variants

6A 125/250V AC, 6A 3 – 48V DC

8, 12, 16, 19, 22, 25, 28 mm

Quick Connect, Solder, Wire, Screw

IP66/67/68 Rated

up to IP69K

Industry - Markets at Lucid Electronics

Ideal for demanding applications

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Size (panel cut-out)
Configuration
Electrical Rating
Illumination Type
Terminal Type
Actuator Style
Datasheet
PK-19Z13TSNNNSS-CNNN 19 mm Lock SPDT 3P 6A 125/250V AC, 6A 3 - 48V DC No Illumination Quick Connect Emergency Stop pdf

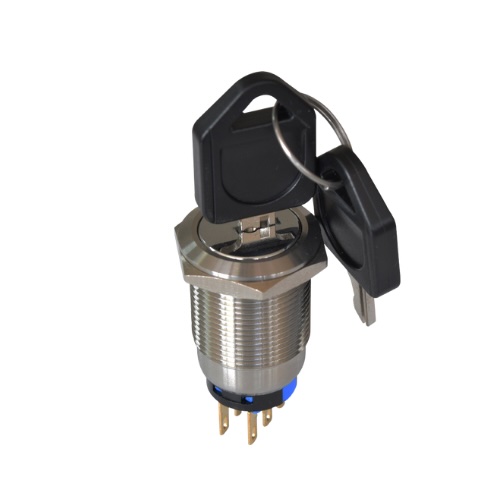

PK-19Z23YNNNSS-ANNN 19 mm Lock DPDT 6P 6A 125/250V AC, 6A 3 - 48V DC No Illumination Quick Connect Key Lock pdf
PK-19Z23XEW2SS-ANTN 19 mm Lock DPDT 6P 6A 125/250V AC, 6A 3 - 48V DC White 6V DC Ring Quick Connect Rotary pdf
PK-22M11FEG3SS-ANGN 22 mm Momentary SPST 2P 6A 125/250V AC, 6A 3 - 48V DC Green 12V DC Ring Quick connect Flush pdf
PK-25M13HNNNSS-ANNN 25 mm Momentary SPDT 3P 6A 125/250V AC, 6A 3 - 48V DC No illumination Quick connect Flush pdf
Electrical Rating up to 6A 125/250V AC, 6A 3 - 48V DC
Poles / Throws SPST, SPDT, DPST, DPDT
Function Latching, Momentary
Illumination 125V AC, 220V AC, 3V DC, 6V DC, 12V DC, 24V DC, 36V DC, 48V DC
Terminals Quick Connect, Solder, Wire, Screw
IP Rating up to IP69K
Actuator & Bushing Material Stainless Steel
Actuator Types Pushbutton, emergency stop, mushroom, select, keylock
Panel cut-out 8mm, 12mm, 16mm, 19 mm, 22 mm, 25 mm, 28 mm
Options Chrome plating, anodised aluminium finish, customised solutions
Approvals UL, ENEC

Specifications subject to change without notice.
