EMC 2 Cable Glands

Home - Connectivity - Cable Glands, Junction Boxes & Vents - EMC 2 Cable Glands

Generation 2 EMC with fixed spring contact

EMC 2 Nickel Plated Brass Cable Glands provide a robust, secure and durable cable entry solution for typical commercial and residential applications requiring EMC protection. Designed for a solid electrical connection using a high-quality Beryllium Copper alloy contact, while the gland is crafted from high-quality Nickel plated brass, they ensure secure strain relief, IP66–IP68 sealing, and reliable performance across harsh environments. Ideal in situations requiring braided / shielded cables for long-term electrical and mechanical integrity.

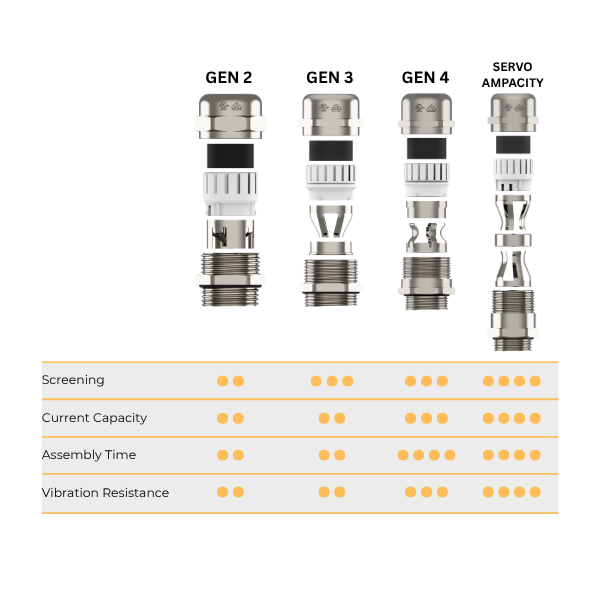

See the EMC type comparison in the images to choose the EMC Gland which is right for your application.
  • IP68 in Metric thread sizes
  • Provides reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables
  • Designed for use with Shielded/Braided cables, conforming to EN 62444 and UL514B standards
  • Suitable for use in industrial applications with EMC requirements
  • Ensures secure cable entry while minimizing electromagnetic interference
  • High protection against dust, moisture, and water ingress
  • High tensile strength and reliable strain relief
  • Accessories include Gaskets, Earth tags, Lock nuts and Serrated Washers
  • VDE, UL, DNV-GL approved

Metric M12 – M63

IP66/67/68 Rated

IP 68 – 5 Bar, 30 min

Cable OD Min. 3mm

Cable OD Max. 44mm

-40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Size
Thread Length (mm)
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Shield Diameter (mm)
Spanner Width Cap (mm)
Spanner Width Body (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
M12x1,5 6 / 12 3 6.5 2.5 - 4.5 14 14 15.5 24 EMC2 Cable Glands
M16x1,5 6.5 / 7 / 12 4 10 3.5 - 8 17 / 20 18 / 20 20 / 22 25.5 / 31.5 EMC2 Cable Glands
M20x1,5 8 / 12 6 12 5 - 10 22 22 24.5 26.5 EMC2 Cable Glands
M25x1,5 8 / 12 10 18 8.5 - 14 24 / 27 / 30 27 / 30 30 / 33 30 / 40 EMC2 Cable Glands
M32x1,5 9 / 15 13 25 11 - 20 30 / 40 34 / 40 37.5 / 44.5 35 / 46 EMC2 Cable Glands
M40x1,5 9 / 15 18 32 16 - 27 40 / 50 43 / 50 48.5 / 55.5 40.5 / 54.5 EMC2 Cable Glands
M50x1,5 9 / 15 22 32 20 - 27 50 55 61 50 EMC2 Cable Glands
M63x1,5 14 / 18 34 44 31 - 40 64 68 75 55 EMC2 Cable Glands
IP Rating IP 68 - 5 Bar, 30 min, IP66
Thread Options Metric EN 60423 / NPT ANSI B1.20.1 / PG DIN 40430
Body Material Brass Nickel plated
Seal CR (Chloroprene)
Clamping Insert Polyamide 6 V2 acc. to UL 94
O-Ring Nitrile Butadiene Rubber (NBR)
Operating Temperature Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C
Accessories EMC Lock nuts / Earth Tags / Gaskets / Serrated Washers
Approvals DNV.GL, VDE, UL

Specifications subject to change without notice.
