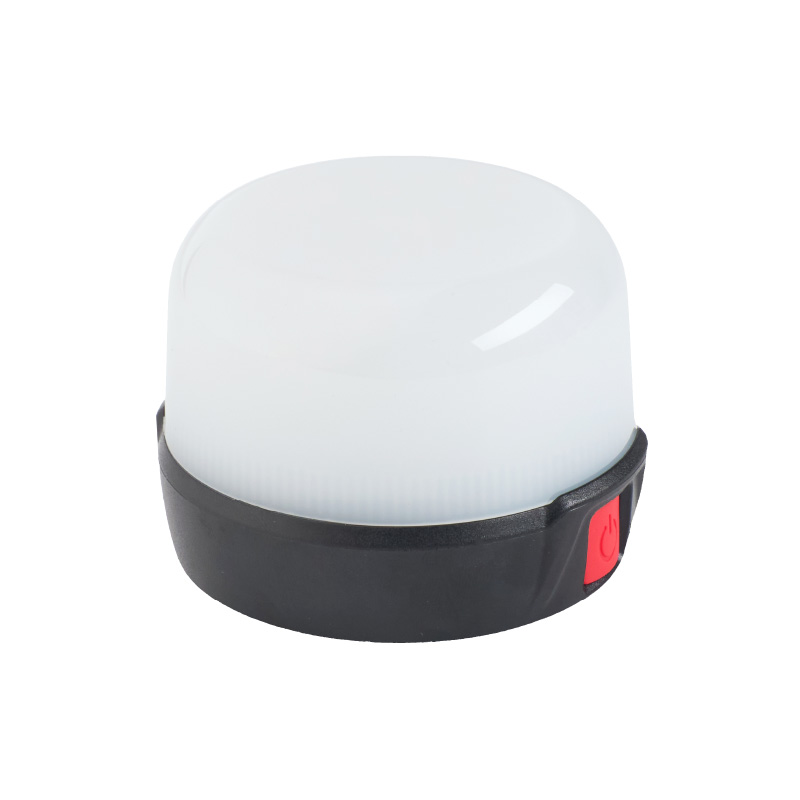

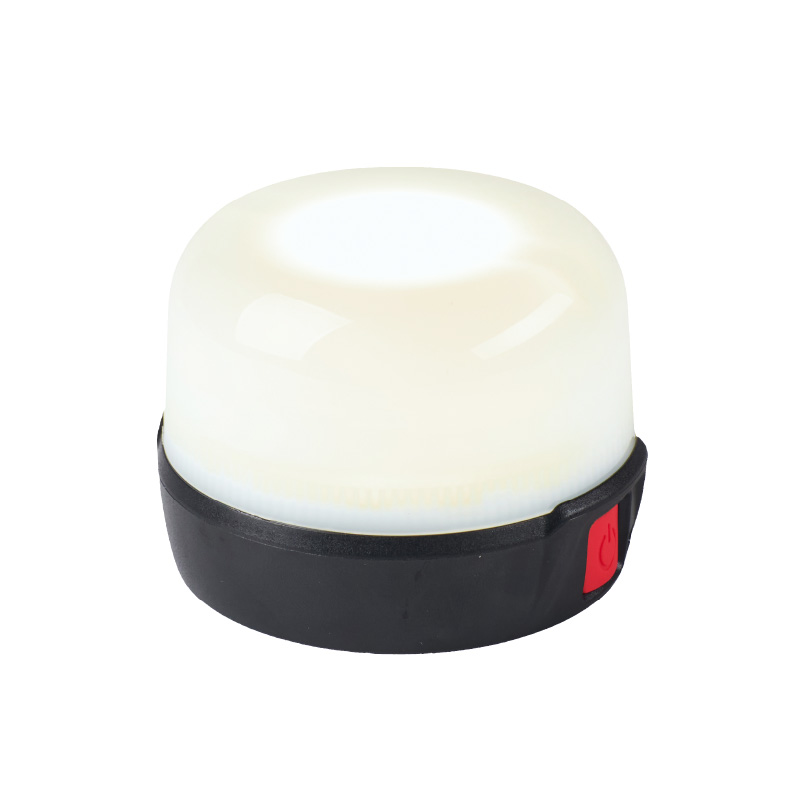

C2-7814 Portable multi function magnetic warning lights
The C2-7814 is a compact yet powerful portable warning light measuring 87 X 60 mm. It delivers three illumination options via high-efficiency LEDs, Flashing amber as a quick deploy warning light. A solid white light as an emergency work light and a white focused spot light. Powered by an 2200mAh lithium-ion battery it offers up to 4 hours of runtime and charges using USB-C input with a 3.5 hour recharge time.
Rated IP54, this durable unit operates in temperatures from -10°C to +40°C. It includes a powerful integrated magnet for versatile mounting. Its lightweight yet rugged design makes it indispensable as an emergency quick deployment for roadside emergencies, agricultural situations, truck drivers and construction workers.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
LED colour temperature
|
Light Output
|
Charge Time
|
Operating Time
|
Ingress Protection
|
Charge Type
|
LED
|
Battery type
|
Operating Temperature
|
EMC
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2-7814 | 580nm ~ 5700K | Up to 284 Lumens | 3.5 Hour | 4 Hours | IP54 | USB-C | 12 X 0.5W (Amber) ~ 16 X 0.5 (White) ~ 1 X 5W (White) | Li-ion 3.7V 2200mAh | -10°C....+40°C | EN55015 |
| Output | up to 284lm |
| Protection Rating | IP54 |
| LED colour temperature | 5700K ~ 580nm |
| Operating Temperature Range | -10°C...+40°C |
| Runtime | 4 hours |
| Charging Time | 3.5 hours |
| Magnet | Yes |
| Hook | No |
| Charging Port | USB-C |
| Battery | 3.7V 2200mAh |
| Housing Material | Polycarbonate |
| Dimensions | 87 x 60mm |
Specifications subject to change without notice.
