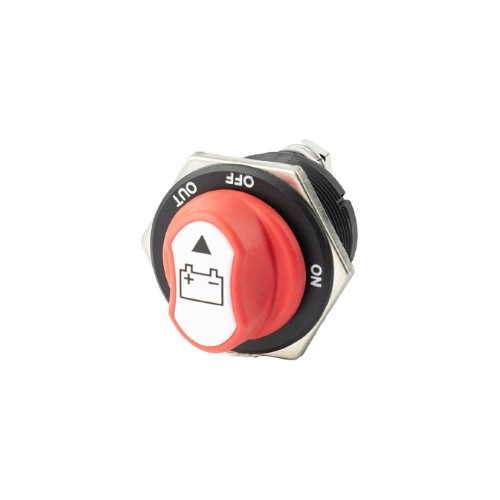

Battery Isolation A23-8

Home - Switches & Indicators - Isolation Switches - Battery Isolation A23-8

A UL94V-0 compliant battery Isolation switch with an ingress protection rating of IP56, As a panel
mount switch it offers a continuous rating of 200A and is supplied with a single panel mounting nut. A23-8A has a non removable knob design, A23-8B has a removable knob.

  • 200 Amp battery switch suitable for panel mount
  • Protection level above panel rated to IP56
  • Housing material compliant with UL94V-0
  • Quick and reliable power disconnect in case of emergency
  • Suitable for marine and vehicle battery systems to control ON/OFF function

32 VDC

200A continuous

2P SPST On / Off

IP66/67/68 Rated

IP56

UL94V-0

Enquire Now / Request a SampleView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage Rating
Continuous Rating
Intermittent Rating
Cranking Rating
Ingress Protection
Function
Stud Size
Pitch
Datasheet
A23-8A 32VDC 200A 300A 1000A IP56 2P SPST On / Off M8 x 14.6mm (L) 1.0
A23-8AB 32VDC 200A 300A 1000A IP56 2P SPST On / Off M8 x 19.5mm (L) 1.0
A23-8BB 32VDC 200A 300A 1000A IP56 2P SPST On / Off M8 x 19.5mm (L) 1.0
Max. Voltage Rating 32 VDC
Continuous Rating 200 Amps
Intermittent Rating 300 Amps
Cranking Current (5 seconds) 1000 Amps
Operation 2P SPST On / Off
Protection Rating IP56
Terminal Stud Size M8
Pitch 1.0 mm

Specifications subject to change without notice.
