AD60 panel mount annunciator
Visual and audible warning device

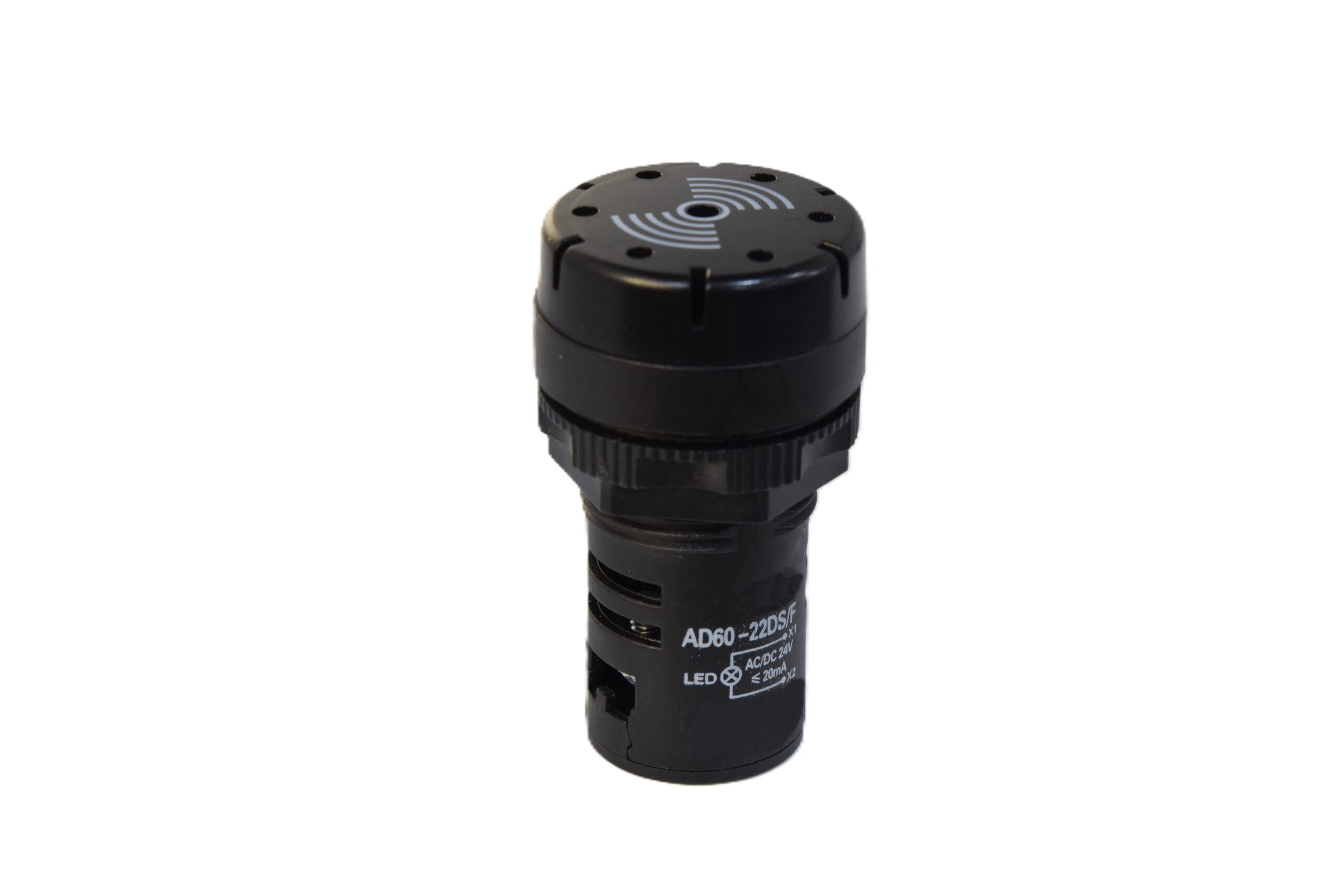

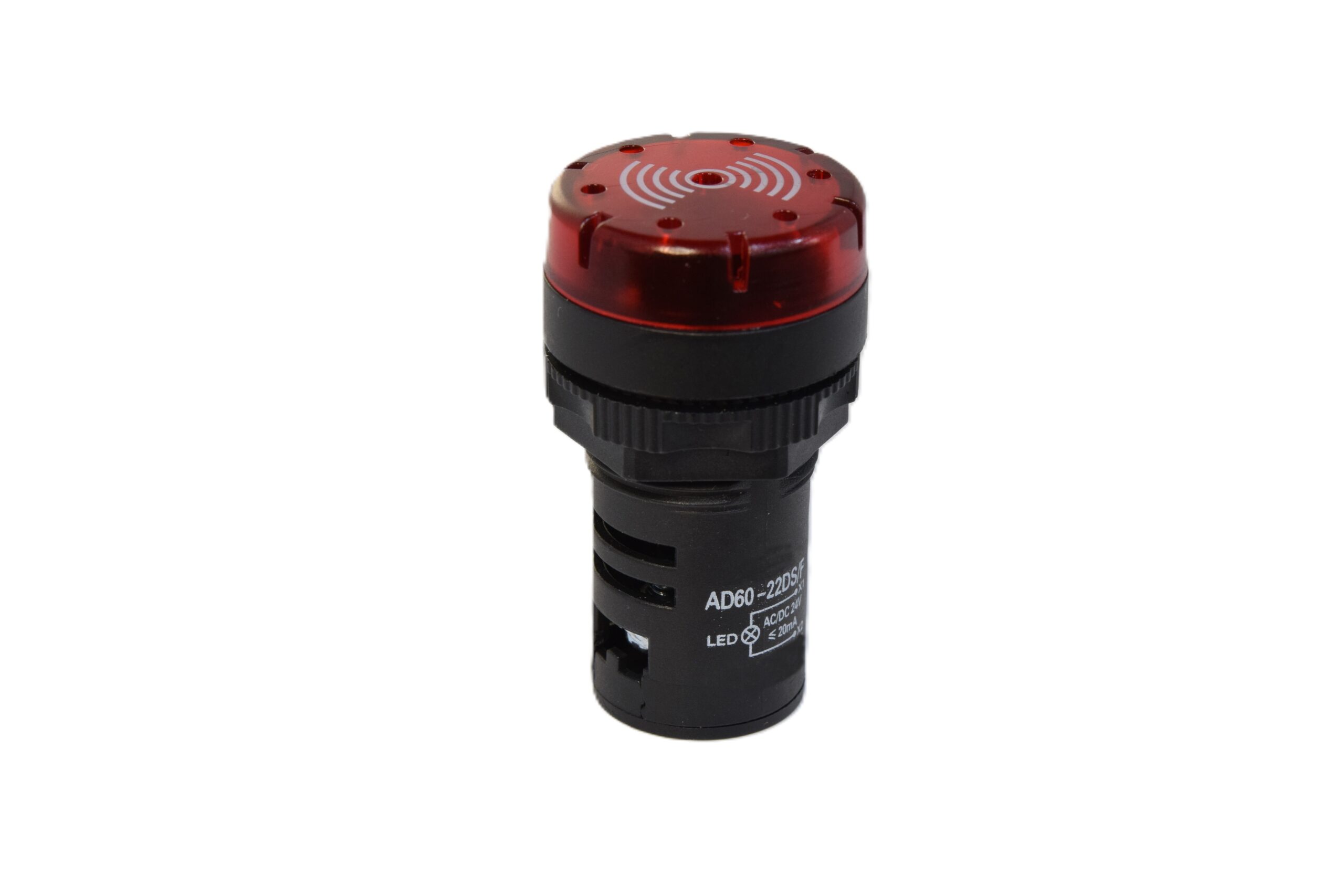

Circular panel mount indicator with built in audible warning signal. It has a 22mm panel mount cut out, the housing is made from Nylon with a red or black coloured polycarbonate lens. Designed to save space on the panel where both a visual and audible signals are required.
- Lifespan of 40,000 hours
- Nylon Housing Material
- Black or Red Polycarbonate Lens Material
- Suitable for 22mm panel cut-outs
- Red LED Illuminated head
- Screw terminals
- Buzzer sound level: 80dB
- LED voltage: 24VDC
- Rated Insulation Voltage: 250V
250V
22mm cut-out
Screw
IP40
Ideal for instrumentation
Enquire Now / Request a SampleView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Rated insulation Voltage
|
Rated Current
|
Cut-out Size
|
Head Shape
|
LED Colour
|
LED Voltage
|
Terminal Type
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|
| AD60-22DS/F-R24V | 250V | ≤20mA | 22 mm | Raised | Red | 24V | Screw Terminals |
| Rated Current | ≤20mA |
| Rated Frequency withstand Voltage | 2000V 50Hz/1min |
| Illumination Colour | Red |
| LED Voltage | 24V DC |
| Termination | Screw terminals |
| Buzzer Sound Level | ≥80db |
| Panel cut-out | 22 mm |
| Lens | Red or Black |
Specifications subject to change without notice.
