Ventilation Plugs Plastic IP67 / IP68

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Ventilation Plugs Plastic IP67 / IP68

IP67 breathable vent plug with either screw on snap in feature offering reliable pressure equalization to prevent condensation inside sealed enclosures. By balancing internal and external pressure, they protect against moisture, corrosion, and short circuits, eliminating the need for costly heating or ventilation systems. Membranes featuring durable, breathable Acrylic co-polymer on nylon-support, these solutions enhance safety, extend service life, and reduce maintenance in harsh environments.
  • Designed to provide reliable pressure equalization inside sealed housings and enclosures.
  • Prevents the formation of water condensation and protects against damage caused by pressure differences.
  • Extends the service life of equipment by reducing stress on enclosure gaskets and seals.
  • Provides effective protection against water, dust and contaminants while allowing controlled airflow.
  • Manufactured from high-quality, durable materials for long service life.
  • Suitable for both indoor and outdoor use in industrial environments
  • Temperature range: -40°C to +100°C
  • Protects against internal water condensation that can lead to electrical failures
  • Offered with different mounting options, including threaded connection or snap-in installation.

M6 – M40

IP66/67/68 Rated

up to IP68

up to 2200 l/h

IP66/67/68 Rated

Water intrusion 0.1 – 0.9

-40°C to +100°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Material
IP Rating
Air permeability @ 70kPa (ml/min)
Air permeability @ 70kPa (L/hr)
Temperature Rating
Datasheet

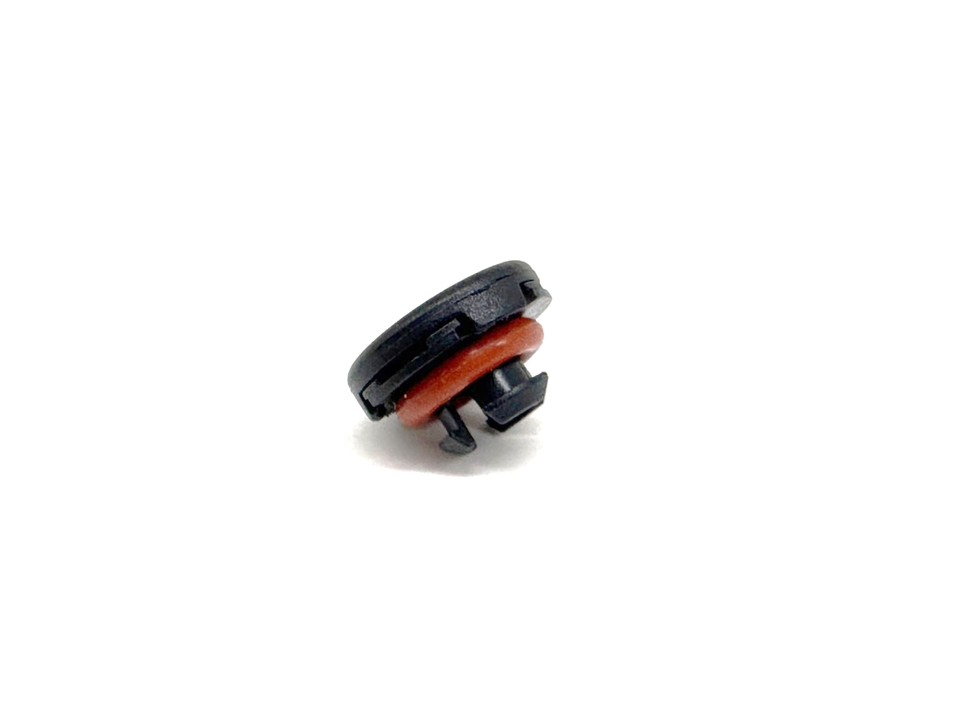

LVM12P02BSI PBT Black IP67 300 18 -40°C to +90°C Snap In Vent Datasheet
Housing Material Polyamide 6 V2 acc. to UL 94
IP Rating IP67, IP68 (IP69 type D only)
Colour Black (RAL9005), Light Grey (RAL7035), Grey (RAL7001)
Air Flow rate (l/h) 8-2200
Water intrusion Pressure 0.1 - 0.9
Thread M6 - M40
Temperature Range -40°C to +100°C
Vent Membrane Material Acrylic co-polymer on nylon-support

Specifications subject to change without notice.
