C2-347E Wide Voltage Range LED Work Light

The C2-347E is a wide voltage range LED work light designed for versatility and durability. It features an aluminium housing and a polycarbonate lens, with four LEDs providing bright and uniform illumination. Operating within a voltage range of 9-64VDC, it consumes 16W of power, with a Lumen output of 2,800Lm, ensuring efficient energy usage. The light is designed to withstand harsh conditions, with an IP67 rating for protection against dust and water, and it offers over-voltage, reverse polarity, and overheating protection. Approved under EN50498, it meets electromagnetic compatibility standards. The LEDs emit a cool white light with an LED colour temperature of 5700k, enhancing visibility in low-light conditions. This work light is ideal for use in specialist, warehouse, and construction vehicles.

9 – 64V

Flood Beam

Flood Beam

2800 Lm

16W

IP66/67/68 Rated

IP67

Download DatasheetView Related Products

Swipe to Browse

Housing Shape Square
Beam Pattern Flood
Raw Lumen Output 2800 Lm
Effective Lumen Output 1200 Lm
Colour Temperature 5700K
Voltage 9 -64 VDC
Nominal Current at
Power Consumption 16W
Ingress Protection Rating IP67
Shock Resistance 7G
Operating Temp Range -30°C...+65°C
Housing Material Aluminium
Lens Material Polycarbonate

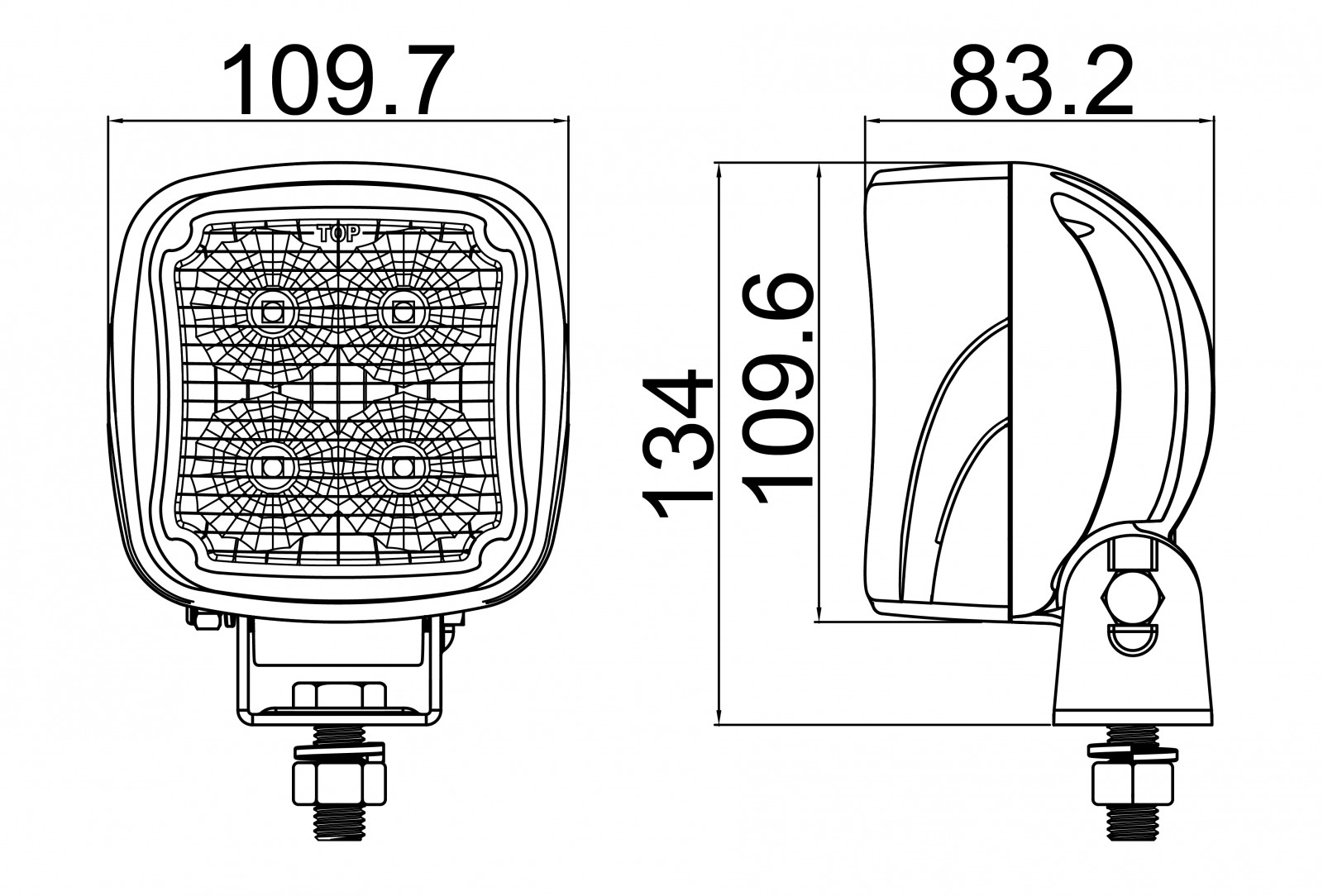

Dimensions 109.7 x 83.2 x 134 mm
Mounting Style Single Bolt
Termination 300mm wire
EMC EN50498
Approvals

Specifications subject to change without notice.
