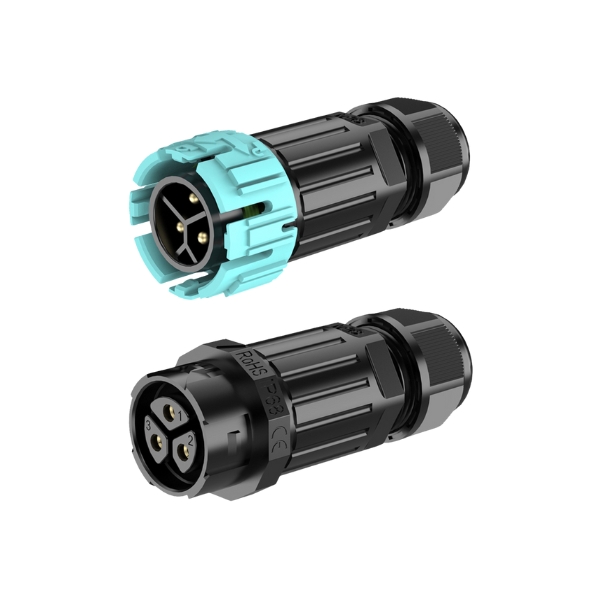

SLM23 Self Locking Connectors
IP68 Quick Connect / Release Plug & Sockets
The compact SL series IP68 self locking connectors feature a quick push to lock, and twist to release design for rapid installation. They come in plug and socket configurations for inline cable and panel mounting, are waterproof, dustproof and UV-resistant for demanding indsutrial and outdoor environments. They are well suited for use in lighting, agricultural, renewable energy, robotics, automation, industrial and applications. The wider product family also includes M15, M19, M28 and screwless connection types in M23, M25 for cable to cable and cable to panel.- 2 to 5 pin Gold plated contacts for power and signal applications
- IP68 1M / 2hr when mated (panel mount IP65 included cap)
- Screw and solder options up to 30A / 450V
- PA66 UV resistant Nylon with locking ring
- Supplied as mating pairs for value and convenience
- Cable, front panel, rear panel and flange mount types
- Cable range 5mm to 12mm for up to 4.0sqmm wire
- Quick push to connect, twist to release - Anti-vibration
- UL, TUV, CE approvals
20.5mm / 25.1mm Panel Cutout
IP68 Mated / IP65 Dustcap
2 – 5 Pins
30A (2-3 pin) / 16A (4-5 pin)
450V
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Pins
|
Connection Type
|
Female Part
|
Male Part
|
Dust Cap
|
Wire Size mmsq
|
Current Rating
|
Voltage Rating
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|
| SLM23-xxPF-SC-0 | 2 - 3 | Screw | Flange | Cable | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SC-1 | 2 - 3 | Screw | Cable | Flange | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SO-0 | 2 - 3 | Solder | Flange | Cable | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SO-1 | 2 - 3 | Solder | Cable | Flange | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SC-0 | 2 - 3 | Screw | Front Panel | Cable | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SC-1 | 2 - 3 | Screw | Cable | Front Panel | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SO-0 | 2 - 3 | Solder | Front Panel | Cable | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SO-1 | 2 - 3 | Solder | Cable | Front Panel | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SC-0 | 2 - 3 | Screw | Rear Panel | Cable | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SC-1 | 2 - 3 | Screw | Cable | Rear Panel | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SO-0 | 2 - 3 | Solder | Rear Panel | Cable | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SO-1 | 2 - 3 | Solder | Cable | Rear panel | Yes | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPC-SC-0 | 2 - 3 | Screw | Cable | Cable | No | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPC-SO-0 | 2 - 3 | Solder | Cable | Cable | No | 0.5 - 4.0 | 30A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SC-0 | 4 - 5 | Screw | Flange | Cable | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SC-1 | 4 - 5 | Screw | Cable | Flange | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SO-0 | 4 - 5 | Solder | Flange | Cable | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPF-SO-1 | 4 - 5 | Solder | Cable | Flange | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SC-0 | 4 - 5 | Screw | Front Panel | Cable | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SC-1 | 4 - 5 | Screw | Cable | Front Panel | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SO-0 | 4 - 5 | Solder | Front Panel | Cable | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPR-SO-1 | 4 - 5 | Solder | Cable | Front Panel | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SC-0 | 4 - 5 | Screw | Rear Panel | Cable | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SC-1 | 4 - 5 | Screw | Cable | Rear Panel | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SO-0 | 4 - 5 | Solder | Rear Panel | Cable | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPP-SO-1 | 4 - 5 | Solder | Cable | Rear Panel | Yes | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPC-SC-0 | 4 - 5 | Screw | Cable | Cable | No | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| SLM23-xxPC-SC-0 | 4 - 5 | Solder | Cable | Cable | No | 0.5 - 2.5 | 16A | 450V | SLM23 Datasheet |
| Unit of supply | Male & Female pair (Panel / Flange mount includes silicon dust cap) |
| IP Rating | IP68 to 1M/2hr (IP65 panel with dust cap) |
| Number of Pins | 2 to 5 |
| Connection Type | Screw or Solder |
| Current Rating | 30A (2 & 3 pin) / 16A (4 & 5 pin) |
| Rated Voltage | 450V |
| Wire Size | 4.0mmsq (2 & 3 pin) / 2.5mmsq (4 & 5 pin) |
| Min - Max Cable Diameter (mm) | 5.0 - 12.0 |
| Temperature Range | -40°C to +105°C |
| Mating cycles | 1500 |
| Material | PA66 Nylon Flame and UV retardant |
| Panel Cutout | 20.5mm / 25.1mm |
Specifications subject to change without notice.
