EMC Locknuts

Home - Connectivity - Cable Glands, Junction Boxes & Vents - EMC Locknuts

Accessories

Nickel Plated Brass or Stainless Steel EMC serrated locknuts in Metric sizes for use with EMC cable glands in enclosures and housings with non threaded cable entry holes. These specialized electrical fasteners are designed to secure the gland to an enclosure while simultaneously ensuring a high quality electrical connection for grounding and shielding. Offering a Fine thread (F), much improved corrosion resistance, thermal resilience and vibration resistance these are ideal where requirements are for strength and durability.
  • Protects sensitive electronics from electromagnetic interference (EMI) by grounding the cable gland
  • Teeth on the Locknut bite into the metal housing to give a low impedance electrical contact
  • Suitable for both indoor and outdoor use in industrial environments
  • Metric EN60423 (Fine Thread F )
  • For use in enclosures and housings with non threaded holes
  • Nickel Plated Brass or Stainless Steel material
  • The design ensures that the connection remains secure in environments with high vibration

M12 – M63

Fine Thread (F)

Flats 15mm – 70mm

OD 16.5mm – 77mm

Operating Temperature -40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

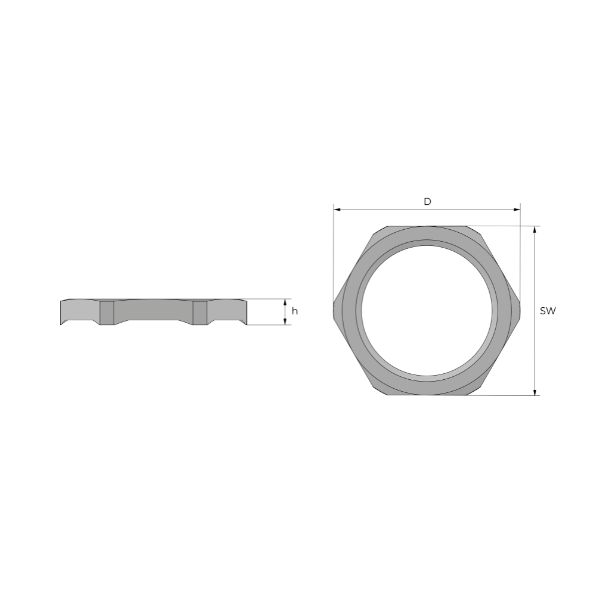

Part Number
Thread Size
Width Across the flats
Outer Ø (mm)
Max. Height (mm)
BMEL-01 M12x1.5 15 16.5 3.3 EMC Locknuts
BMEL-02 M16x1.5 19 21 3.5 EMC Locknuts
BMEL-03 M20x1.5 24 26.5 3.7 EMC Locknuts
BMEL-04 M25x1.5 30 33 3.7 EMC Locknuts
BMEL-05 M32x1.5 36 39.5 4 EMC Locknuts
BMEL-06 M40x1.5 46 51 4.6 EMC Locknuts
BMEL-07 M50x1.5 60 66 5.6 EMC Locknuts
BMEL-08 M63x1.5 70 77 6.7 EMC Locknuts
Thread Options M12-M130 / PG7-PG48
Body Material Nickel Plated Brass / Stainless Steel

Specifications subject to change without notice.
