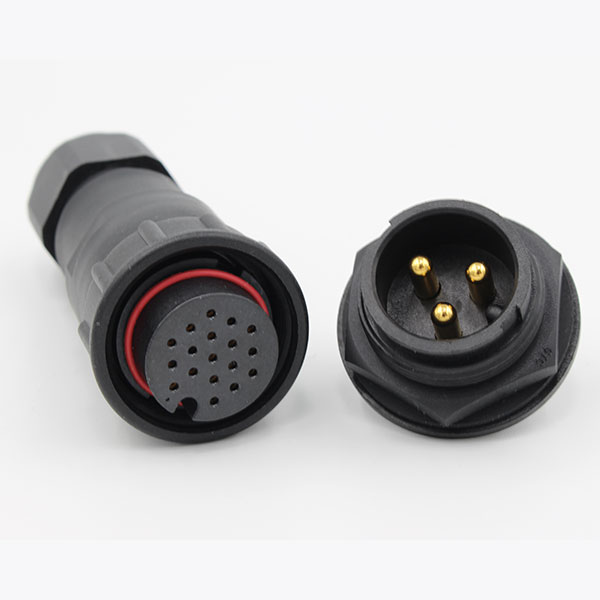

The Circular connector range comprises of 5 series’ offering robust yet cost effective IP67 pluggable connector solutions in mated and unmated form. This versatile range features both panel mount and inline connector options with either a bayonet, screw or twist-type locking mechanism. Cable connectors are either field installable or supplied pre-wired and overmoulded.
- C4 panel cut-out 25.5 mm
- Rated current & contacts: 2A (15 - 26P, 5A (14 - 18P), 10A (6 - 9P), 30A (3P)
- Panel, cable end, cable to cable and field installable variants
- PCB / DIP pin or solder termination on panel side
- Bayonet, screw or twist locking mechanism
- Thermoplastic housing
The circular connector series is designed for use in machine automation, industrial automation, marine, outdoor lighting, wireless Communication, and military applications.
The table below lists a small selection of the available standard options. If you cannot find what you are looking for please contact us.
- Standard Parts
- Specifications
|
Part Number
|
Description
|
Datasheet
|
|---|---|---|
| GT154200-05030(F) | Circular, IP67, 30A 3P, 25.5 mm cut-out (C4), panel mount, female, plastic housing, bayonet lock-type, solder termination | |
| GT154210-05030(F) | Circular, IP67, 30A 3P, 25.5 mm cut-out (C4), panel mount, male, plastic housing, bayonet lock-type, solder termination | |
| GT154224-25031-01(F) | Circular, IP67, 30A 3P, cable end (C4 series), female, plastic housing, bayonet lock-type, 1 metre cable | |
| GT154234-25031-02(F) | Circular, IP67, 30A 3P, cable end (C4 series), male, plastic housing, bayonet lock-type, 2 metre cable | |
| GT1C542132 | Sealing Cap for C4 series, lock-type with plastic lanyard | |
| GT1C543132 | Sealing Cap for C4 series, screw-type with plastic lanyard |
|
Characteristic
|
C4 series
|
|---|---|
| Panel cut.out | 25.5 mm |
| Current Rating and Number of Poles | 2A (15-26P), 5A (14-18P), 10A (6-9P), 30A (3P) |
| Temperature Range - without Cable | -40°C to +105°C |
| Temperature Range - with Cable | -40°C to +85°C |
| Ingress Protection | IP67 |
| Housing Material | PA66 |
| Contact Material | Copper Alloy, Au Plated |
| Panel Gasket Material | Silicone |
| Cable End Screw / Lock Nut Material | PA66 |
| Cable End O-Ring Material | Silicone |
Specifications subject to change without notice.
