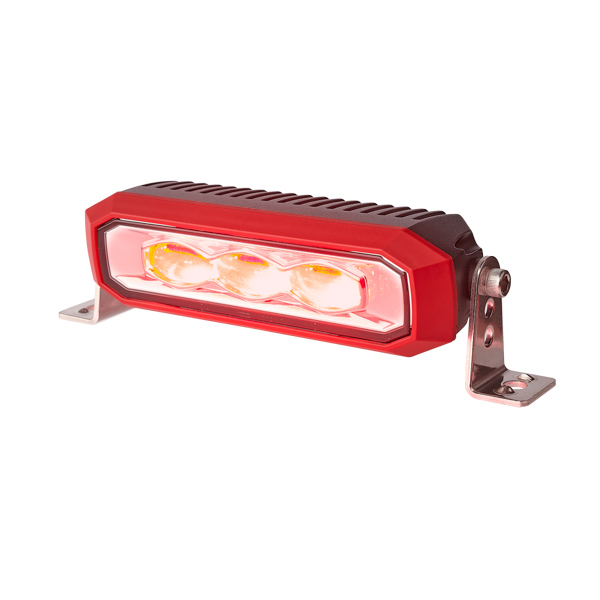

C2-7805R LED Red/Blue Keep Out Zone Lamp

The C2-7805R is an industrial-grade keep-out zone lamp with three high-power LEDs in an aluminium housing, projecting a bright red or blue narrow elongated beam. It has an LED colour temperature of 625nm and emits 900 lumens. Operating at 9-80VDC, it consumes 9.6W and is sealed to IP67 for dust and water resistance. The lamp functions in temperatures from -30°C to +65°C, has a vibration resistance of 7G, and meets EN50598 approval. It includes 300mm wire termination and offers over-voltage, reverse polarity, and overheating protection. Designed to illuminate hazardous zones along forklifts or machinery, it is widely used in warehouses, construction sites, and specialist vehicles to prevent accidents.

9 – 80V

Flood Beam

Keep Out Zone

900 Lm

9.6W

IP66/67/68 Rated

IP67

Download DatasheetView Related Products

Swipe to Browse

Housing Shape Rectangular
Beam Type Narrow elongated
Raw Lumen Output 900 Lm
Effective Lumen Output 250 Lm
Colour Temperature 625 nm
Beam Distance
Voltage 9-80 VDC
Power Consumption 9.6 W
Operating Temp Range -30°C...+65°C
Housing Material Aluminium
Lens Material Polycarbonate
Dimensions 182.2 x 53 x 61 mm
Mounting Style Double bolt
Termination 300mm wire
Ingress Protection Rating IP67
EMC EN50498
Shock Resistance 7G
Approvals

Specifications subject to change without notice.
