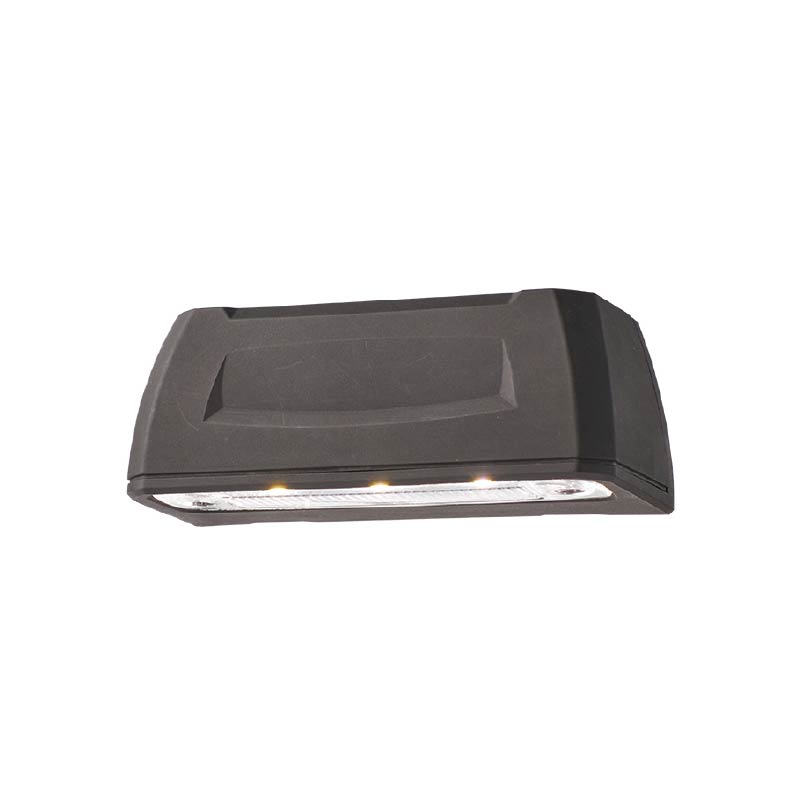

C2-7402 LED Number Plate Light
Licence Plate Illuminator Light
The C2-7402 is a fully compliant 99x48x38.5mm licence plate illuminator light with a 10G vibration rating.
It is housed in an IP68 / IP69K fully sealed, UV resistant, impact resistant and shockproof housing ensuring it can survive the harshest conditions along with high temperature and high pressure washdowns. Simple to mount with 2 X M5x16mm screws, it meets ECE R148 and R149 certification, ensuring full compliance for number plate designs and R10 electromagnetic compatibility standards.
12 / 24 VDC
1A, 1B, 1C, 2A and 2B certified
IP68/IP69K
-30°C~+65°C
Suitable for agricultural vehicles
Download DatasheetView Related Products
Swipe to Browse
- Specifications
|
|
|
|---|---|
| Housing Dimensions | 99x48x38.5mm |
| Voltage | 12 / 24VDC |
| Ingress Protection Rating | IP68 / IP69K |
| Vibration Resistance | 10G |
| Operating Temp Range | -30°C...+85°C |
| Housing Material | Thermally conductive plastic |
| Lens Material | PMMA |
| Mounting Style | 2 X M5x16mm mounting screws |
| Termination | 310 mm cable |
| ECE Compliance | 1A, 1B, 1C, 2A and 2B Licence plate requirements |
| EMC | ECE R10, ISO13766 |
| Approvals | ECE R148 / ECE R149 |
Specifications subject to change without notice.
