C2-7121 Side Marker Lamp

Home - Lighting - Driving Lights - C2-7121 Side Marker Lamp

The C2-7121 is a durable side marker lamp designed using Acrylonitrile Styrene Acrylate for the body giving this marker excellent UV resistance for reliable performance in demanding environments. Operating at 12–24VDC with a power consumption of 1W at 12V and 1.9W at 24V, it combines low energy use with dependable illumination. Sealed to IP67 it is fully protected against dust and water ingress and performs reliably in temperatures ranging from -30°C to +65°C. Available in amber, red or white, the lamp is approved to ECE R91 (SM1) and SAE P2 A20 standards ensuring compliance with international requirements. Compact and versatile, it is ideal for use on commercial vehicles, trailers, agricultural machinery and other transport applications where safety and visibility are essential.
  • Operates at 12–24VDC with low power consumption (1W at 12V / 1.9W at 24V)
  • Sealed to IP67 for dust and water protection
  • Reliable operation in temperatures from -30°C to +65°C
  • Available in amber, red or white
  • Approved to ECE R91 (SM1) and SAE P2 A20 standards

12-24V

12V:1W / 24V:1.9W

-30°C up to +65°C

IP66/67/68 Rated

IP67

Agriculture - Markets at Lucid Electronics

Ideal for agricultural vehicles

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage
Power Consumption
Ingress Protection
Body Material
Lens Material
Colour
EMC
Approvals
C2-7121R 12V ~ 24VDC 0.8W at 12V, 1.7W at 24V IP67 Acrylonitrile Styrene Acrylate Polymethyl Methacrylate Red ECE R10 ECE R7 (R1), SAE P2 A20, SAE AT21
C2-7121A 12V ~ 24VDC 1W at 12V, 1.9W at 24V IP67 Acrylonitrile Styrene Acrylate Polymethyl Methacrylate Amber ECE R10 ECE R91 (SM1), SAE P2 A20

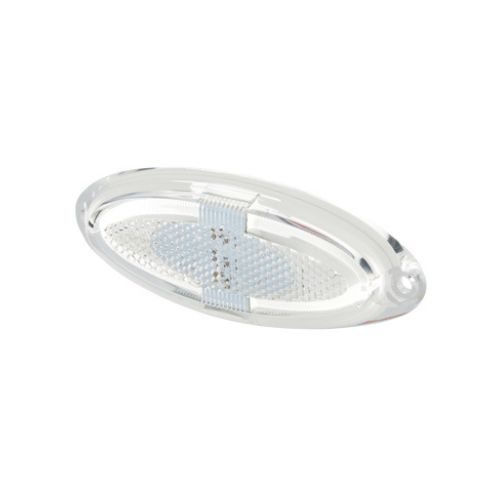

C2-7121W 12V ~ 24VDC 0.9W at 12V, 1.7W at 24V IP67 Acrylonitrile Styrene Acrylate Polymethyl Methacrylate White ECE R10 ECE R7

Specifications subject to change without notice.
