C2-530 Series Rectangular Marine LED underwater Light

Compact yet powerful, the C2-530 series is a rectangular underwater LED light designed for energy efficiency and lasting performance. Engineered with a thermally conductive polymer body and sealed to IP68 / IP69K, it comes pre-terminated with 330 mm of VDE-approved cable for reliable installation. Its refined design not only enhances the aesthetic appeal of any vessel but also serves a practical role, illuminating marine life and improving visibility in low-light conditions. Intended for use exclusively below the waterline, the C2-530 is available with a thermally conductive polymer housing, featuring a durable polycarbonate lens. Offered with a choice of four white, four red or four blue LEDs, it meets EN60945 certification, ensuring full compliance with marine electromagnetic compatibility standards.

9~33VDC

Flood Beam

Flood Beam

1000 lm / white

14W

IP66/67/68 Rated

IP68 / IP69K

Download DatasheetView Related Products

Swipe to Browse

Part Number
Voltage
Power Consumption
LED Colour
LED Colour Temperature
Lumen Count
Beam Pattern
Ingress Protection
Housing material
C2-530W 9-33 VDC 14W at 12V, 16W at 24V White 5700K 1000 Lumen Spot IP68 / IP69K Thermally conductive polymer
C2-530U 9-33 VDC 14W at 12V, 16W at 24V Blue 445nm N/A Spot IP68 / IP69K Thermally conductive polymer

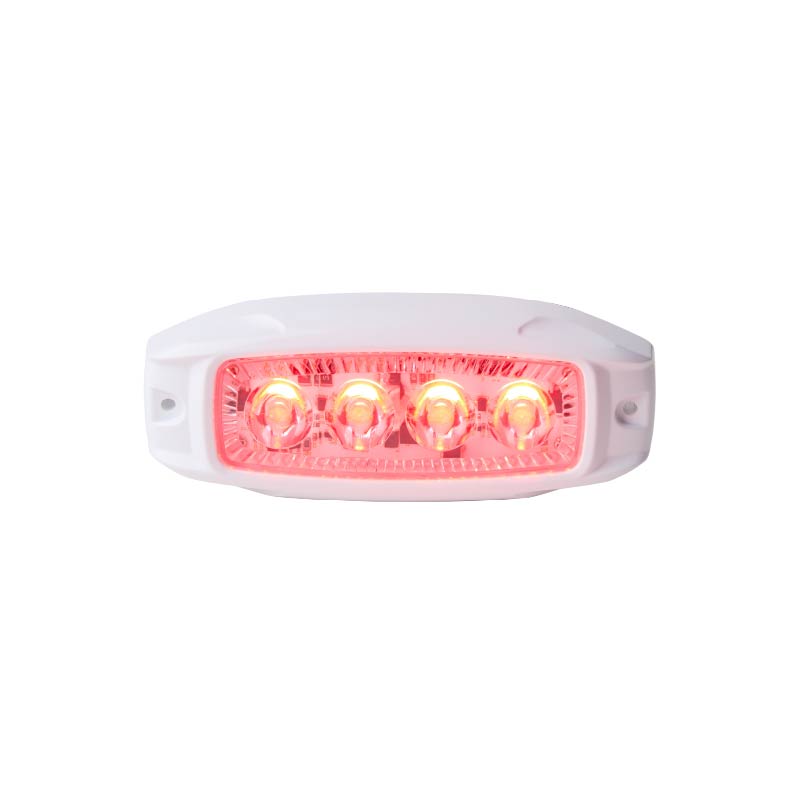

C2-530R 9-33 VDC 10W at 12V, 12W at 24V Red 634nm N/A Spot IP68 / IP69K Thermally conductive polymer
Housing Shape Rectangular
Beam Pattern Flood
Raw Lumen Output
Effective Lumen Output 1000 lm ~ white
Colour Temperature 5700K
Voltage 9-33 VDC
Nominal Current at
Power Consumption: 14 W
Ingress Protection Rating IP68 / IP69K
Shock Resistance
Operating Temp Range underwater operation only
Housing Material Thermally conductive polymer
Lens Material Polycarbonate
Dimensions 146.6 x 60.3 x 22.2 mm
Mounting Style 2 screws
Termination 330mm wire
EMC EN60945
Approvals

Specifications subject to change without notice.
