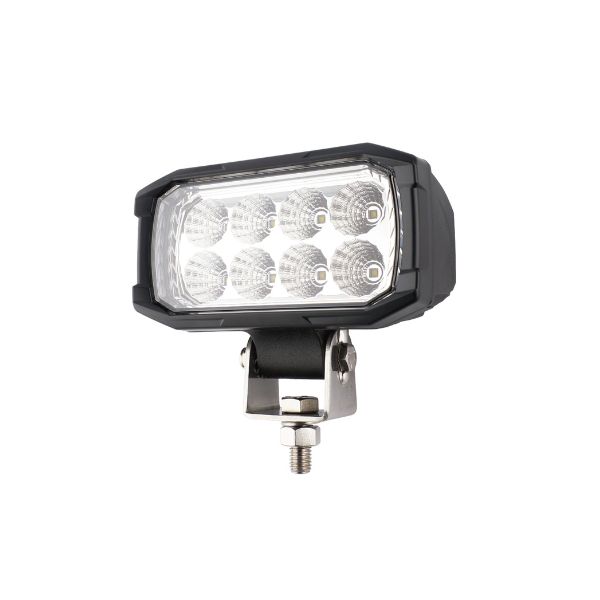

C2-399 Heavy Duty Rectangular LED Work Light
The C2-399 series is a large, heavy-duty rectangular LED work light designed for demanding environments. It features an aluminium housing and a polycarbonate lens, with eight 3W LEDs providing up to 3600lm output, or for that extra power eight by 5W LEDs giving 6300lm of bright and uniform illumination. Operating within a voltage range of 9-33VDC, it consumes 32W of power, ensuring reliable lighting with low energy usage. The light is designed to withstand harsh conditions, with an IP67/IP69K rating for protection against dust, water, and chemicals, and it offers excellent 10G shock resistance. Approved under ECE R10 and ISO 13766, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light, enhancing visibility in low-light conditions. This work light is ideal for use in specialist, agricultural, construction, and mining vehicles.
9 – 33V
Flood Beam
6300lm
32W
IP67/IP69K
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
Raw Lumen
|
Effective Lumen
|
Nominal Current
|
LED Colour Temperature
|
Housing Material
|
Lens Material
|
Ingress Protection
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2-399A | 9-33VDC | 27W | 3600lm | 1200lm | 2.3A @ 12V / 1.1A @ 24V | 5700K | Aluminium | Polycarbonate | IP67 / IP69K | |
| C2-399B | 9-33VDC | 32W | 6300lm | 2000lm | 2.7A @ 12V / 1.35A @ 24V | 5700K | Aluminium | Polycarbonate | IP67 / IP69K |
| Housing Shape | Rectangular |
| Beam Pattern | Flood |
| Raw Lumen Output | 6300lm (B) or 3600lm (A) |
| Effective Lumen Output | 2000lm (B) or 1200lm (A) |
| Colour Temperature | 5700K |
| Voltage | 9 - 33 VDC |
| Nominal Current at | 2.7A at 12V, 1.4A at 24V |
| Power Consumption | 32W (B) or 27W (A) |
| Ingress Protection Rating | IP67 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 161.6 x 75.5 x 132.2 mm |
| Mounting Style | Single Bolt |
| Termination | Deutsch DT04-2P connector |
| EMC | ISO13766 |
| Approvals | ECE R10 |
Specifications subject to change without notice.
