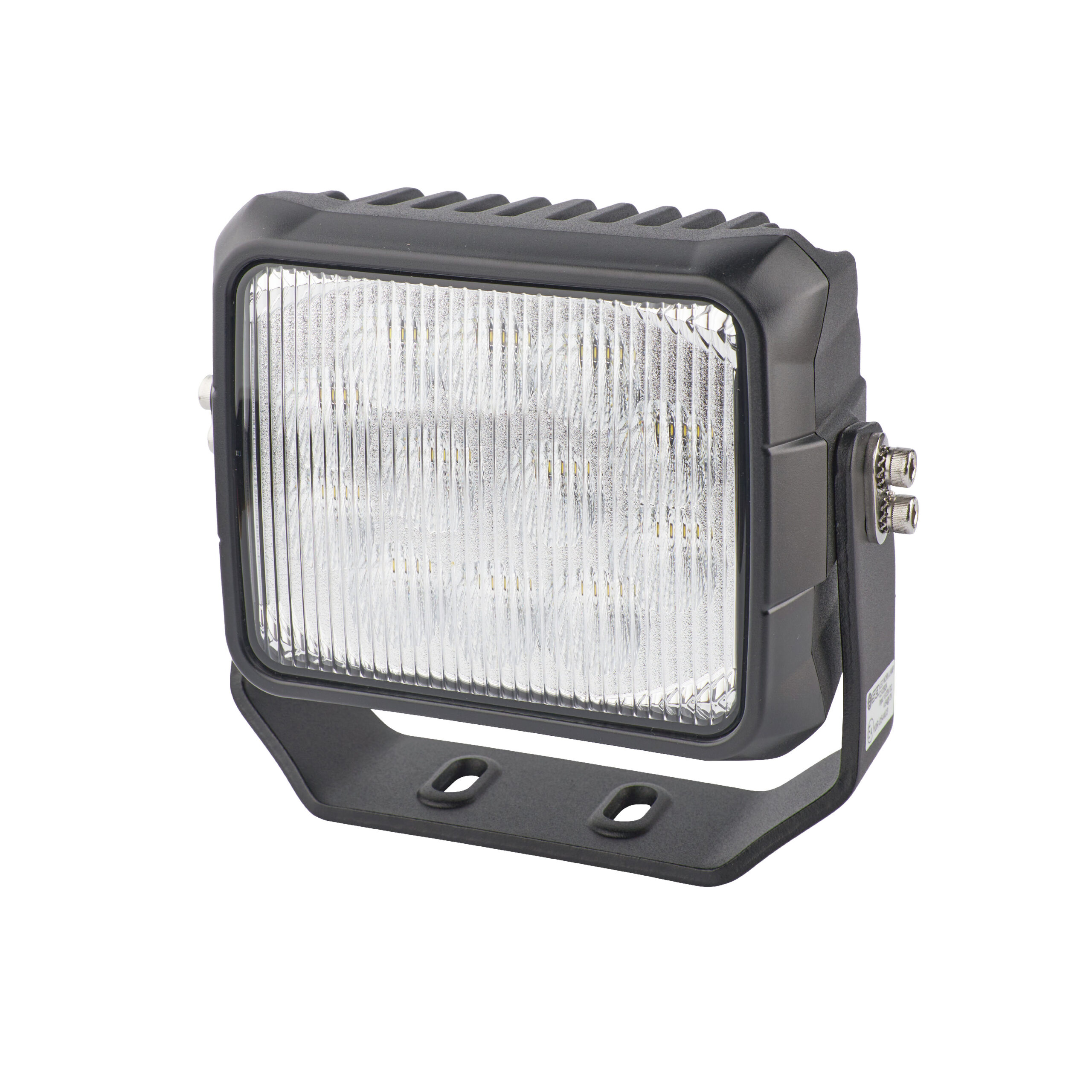

C2-392A High Power LED Work Light
The C2-392A is a large, high-powered LED work light designed for demanding environments. It features an aluminium housing and a polycarbonate lens, with 12 LEDs providing bright and uniform illumination of 8600 lm. Operating within a voltage range of 10-33VDC, it consumes 50W of power, ensuring reliable lighting with low energy usage. It is completely adjustable for maximum visibility. The light is designed to withstand harsh conditions and has an IP68/IP69K rating for protection against dust and water, and offers excellent 10G shock resistance. Approved under ECE R10, ISO 13766 and CISPR 25 Class 3, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light, available in either flood or wide-flood beam type, and clear or diffused lens options improving visibility in low-light conditions. This work light is ideal for use in specialist, mining, agricultural and construction vehicles.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
LED Colour Temperature
|
Raw Lumen Outut
|
Effective Lumen Output
|
Beam Type
|
Ingress Protection
|
Shock Resistance
|
EMC
|
|---|---|---|---|---|---|---|---|---|---|
| C2-392A1 | 10-33VDC | 50W | 5700K | 8600 Lumen | 4400 Lumen | Flood 120m | IP68 / IP69K | 10G | ECE R10, ISO13766, CISPR25 Class3 |
| C2-392A2 | 10-33VDC | 50W | 5700K | 8600 Lumen | 4400 Lumen | Wide Flood 91m | IP68 / IP69K | 10G | ECE R10, ISO13766, CISPR25 Class3 |
| Housing Shape | Rectangular |
| Beam Pattern | Flood or Wide Flood |
| Raw Lumen Output | 8600 Lm |
| Effective Lumen Output | 4400 Lm |
| Colour Temperature | 5700K |
| Voltage | 10 - 33 VDC |
| Nominal Current at | |
| Power Consumption: | 50 W |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 198.7 x 103.3 x 171.7 mm |
| Mounting Style | Double Bolt |
| Termination | Deutsch DT02-2P connector |
| EMC | ISO13766, CISPR25 CLASS3 |
| Approvals | ECE R10 |
Specifications subject to change without notice.
