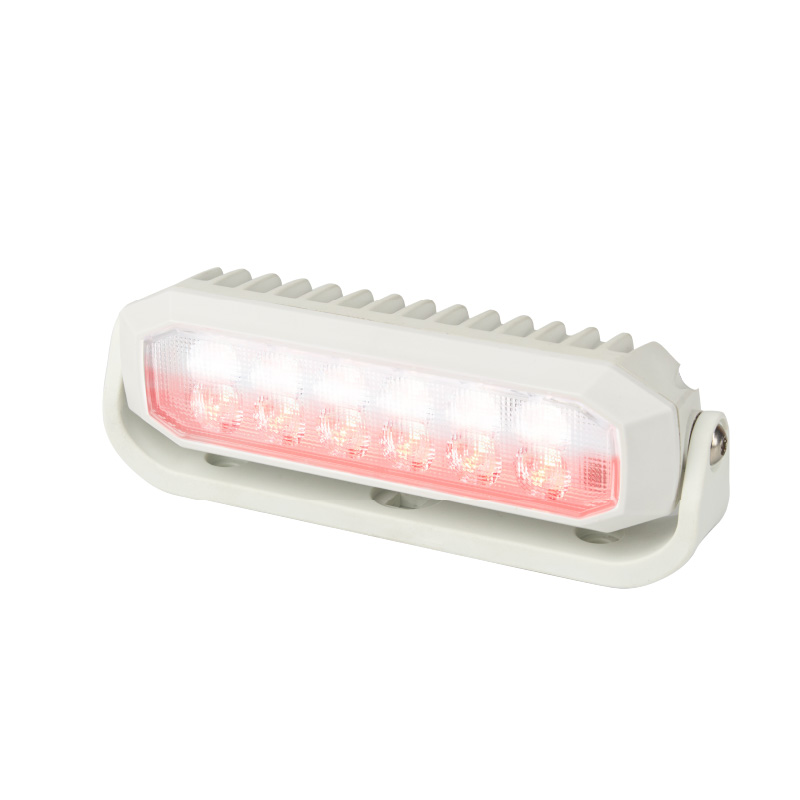

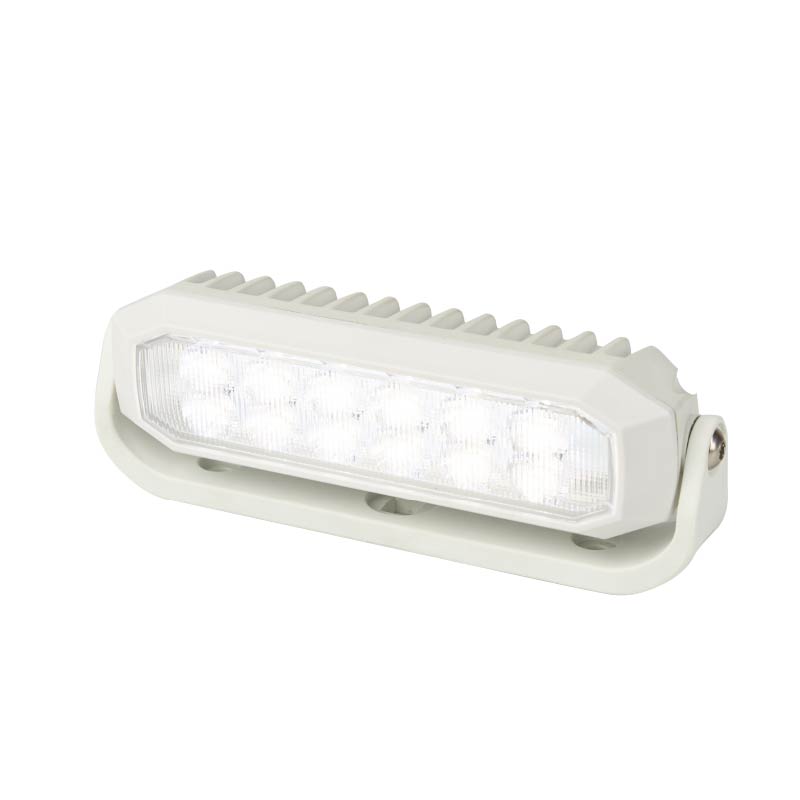

C2-391 Low Profile Marine LED Work Light
The C2-391 is a low profile LED Marine work flood light designed for demanding environments, featuring a robust UV resistive polycarbonate housing and lens. It has a rectangular shape that can be supplied with either a plastic or a metal mounting trunnion that stands 61mm high and operates within a voltage range of 9-33VDC. The light features twelve LEDs, delivering a strong, uniform floodlight with an effective output of up to 950 lumen, ensuring bright and efficient illumination. With a power consumption of 12W, it provides a powerful and reliable 63m flood beam distance while maintaining energy efficiency. The C2-391 is built to withstand tough conditions, with an IP68 / IP69K rating for protection against dust, water, and chemicals, and it offers excellent shock resistance, and a 10G vibration resistance (applicable for metal trunnion version only). It is approved under EN 60945, ensuring compliance with Marine electromagnetic compatibility standards. The LEDs emit a cool white light with a colour temperature of 5700K, resembling natural daylight and improving visibility in low-light conditions. This work light can be used to illuminate safety critical areas and equally to give aesthetic enhancement with White, Red, Blue and combinations of two or three colour LEDs. The light is terminated with 300mm wires.
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
Nominal Current
|
LED Colour Temperature
|
Illumination Colour
|
Raw Lumen Output
|
Effective Lumen Output
|
Ingress Protection
|
EMC
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2-391RW | 9-33 VDC | 7W White ~ 5W Red | White~0.57A@12V, Red~0.23A@12V | 5700K White ~ 623nm Red | White and Red | 1000 Lumen White ~ 370 Lumen Red | 450 Lumen | IP68 / IP69K | EN60945 | |
| C2-391WU | 9-33 VDC | 7W White ~ 4W Blue | White~0.57A@12V, Blue~0.27A@12V | 5700K White ~ 470nm Blue | White and Blue | 1000 Lumen White ~ 150 Lumen Blue | 450 Lumen White | IP68 / IP69K | EN60945 | |
| C2-391W (Flood) | 9-33 VDC | 12W | 0.94A@12V, 0.52A @24V | 5700K | White | 2000 Lumen | 950 Lumen | IP68 / IP69K | EN60945 | |
| C2-391R | 9-33 VDC | 5W | 0.39A@12V, 0.21A@24V | 623nm | Red | 370 Lumen | 200 Lumen | IP68 / IP69K | EN60945 | |
| C2-391U | 9-33 VDC | 7W | 0.55A@12V, 0.29A@24V | 470nm | Blue | 370 Lumen | 200 Lumen | IP68 / IP69K | EN60945 | |
| C2-391RGB | 9-33VDC | 7.2W | 0.1A~0.3A@12V, 0.1~0.3A@24V | See Data sheet | Red, Green, Blue | See Data sheet | See Data sheet | IP68 / IP69K | EN60945 | |
| C2-391W (Wide Flood) | 9-33VDC | 12W | 0.94A@12V, 0.52A @24V | 5700K | White | 2000lm | 950lm | IP68 / IP69K | EN60945 |
| Housing Shape | Rectangular |
| Beam Pattern | Flood |
| Raw Lumen Output | 2200lm |
| Effective Lumen Output | 950lm |
| Colour Temperature | 5700K |
| Voltage | 9 -33 VDC |
| Nominal Current at | up to 0.94A@12V, 0.52A@24V |
| Power Consumption: | 14 W |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G (Metal Trunnion version) |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Thermally conductive plastic |
| Lens Material | Polycarbonate |
| Dimensions | 178 x 61 x mm |
| Mounting Style | Double Bolt Trunnion |
| Termination | 300mm wire |
| EMC | EN60945, EN50498 |
| Approvals |
Specifications subject to change without notice.
