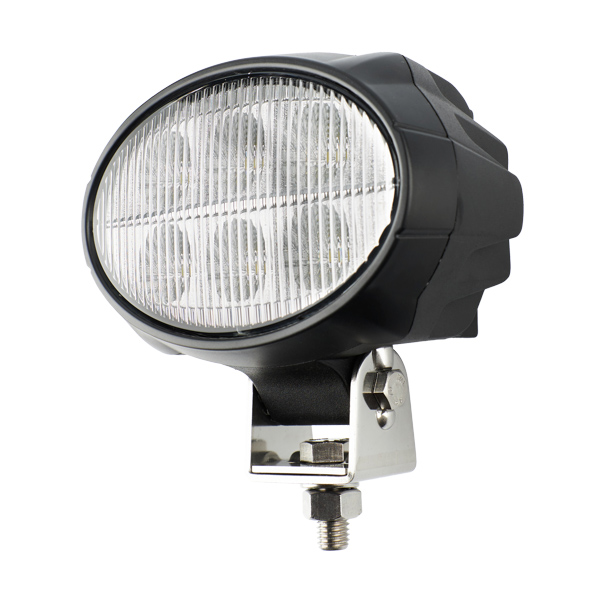

C2-388C Oval LED Work Light
The C2-388C is a large oval LED work light designed for durability and efficiency. It features an aluminium housing, a polycarbonate lens and six high-power LEDs providing a powerful 7350 lumen bright and uniform illumination. Operating within a voltage range of 10-33VDC, it consumes 50W of power, ensuring reliable lighting with low energy usage. The light is designed with excellent shock resistance and an IP68/IP69K rating for ingress protection against dust, water, and chemicals for use in the harshest environments. Approved under ECE R10, ISO 13766, and CISPR 25 Class 3, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light, enhancing visibility in low-light conditions. These upright mounted work lights come with either clear flood or diffused wide flood beam types as standard, making them ideal for use in specialist, agricultural, and construction vehicles.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
LED Colour Temperature
|
Raw Lumen Count
|
Effective Lumen Count
|
Beam Type
|
Ingress Protection
|
Shock Resistance
|
EMC
|
|---|---|---|---|---|---|---|---|---|---|
| C2-388C1 | 10-33 VDC | 50W | 5700K | 7350 Lumen | 4700 Lumen | Flood ~ 125m | IP68 / IP69K | 10G | ECE R10, ISO13766, CISPR25 CLASS3 |
| C2-388C2 | 10-33 VDC | 50W | 5700K | 7350 Lumen | 4700 Lumen | Wide Flood ~ 88m | IP68 / IP69K | 10G | ECE R10, ISO13766, CISPR25 CLASS3 |
| Housing Shape | Oval |
| Beam Pattern | Flood or Wide Flood |
| Raw Lumen Output | 7350 Lm |
| Effective Lumen Output | 4700 Lm |
| Colour Temperature | 5700K |
| Voltage | 10 - 33 VDC |
| Nominal Current at | |
| Power Consumption: | 50 W |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 153 x 97 x 144 mm |
| Mounting Style | Single Bolt |
| Termination | 300mm wire with Deutsch DT04 2P connector |
| EMC | ISO13766, CISPR25 CLASS3 |
| Approvals | ECE R10 |
Specifications subject to change without notice.
