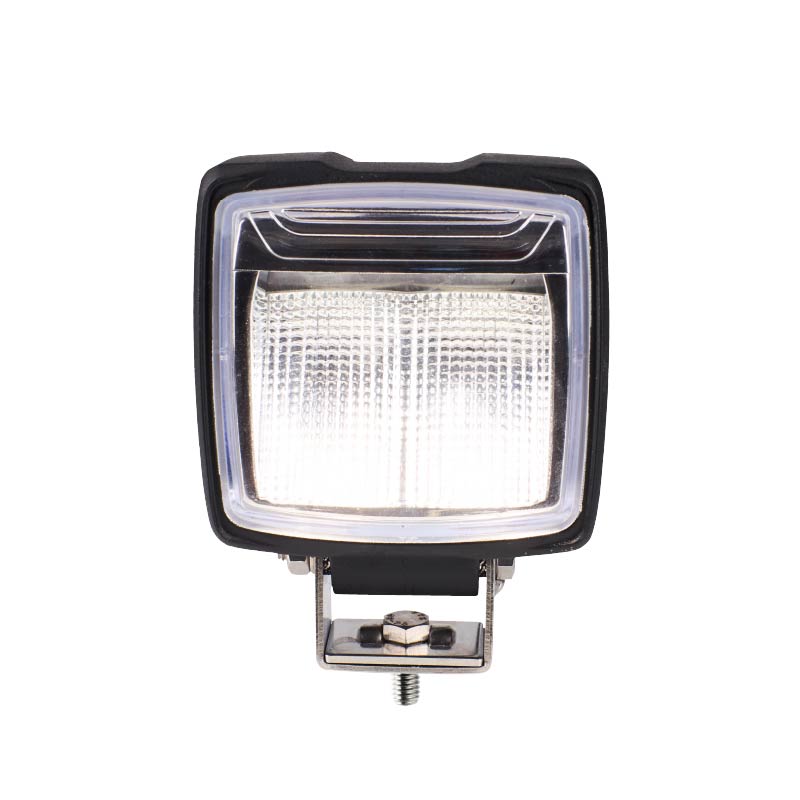

C2-3031 Glare free LED Work Light

The C2-3031 is a square Aluminium housed LED work light with a Polycarbonate Lens. This powerful 27.6W light offers a raw output of 3900lm and operates between 9~64VDC. It is designed for working safely in dark warehouse, night operations and low light conditions.. Advanced anti glare optics ensure this light minimizes visual interference for both operator and closely located personnel. A soft, bright, evenly distributed illumination that supports a safer and more comfortable working environment makes it ideal for applications that include construction, forklift and specialist task vehicles. The precision engineered optical structure delivers a top layer of evenly distributed bright light, a middle layer of glare free illumination and a bottom layer of focused illumination for more detailed vision on the task area.

9 – 64V

Flood Beam

Wide Flood Beam

3900lm

27.6W

IP66/67/68 Rated

IP68 / IP69K

Download DatasheetView Related Products

Swipe to Browse

Housing Shape Square
Beam Pattern Flood
Raw Lumen Output 3900lm
Effective Lumen Output 1700lm
Colour Temperature 5700K
Voltage 9 - 64 VDC
Nominal Current 2.5A@12V, 1.25A @24V
Power Consumtion 27.6 W
Ingress Protection Rating IP68 / IP69K
Shock Resistance 10G
Operating Temp Range -30°C...+85°C
Housing Material Aluminium
Lens Material Polycarbonate
Dimensions 142 x 104 x 79 mm
Mounting Style: Approvals Single Bolt
Termination wire
EMC ECE R10
Approvals CISPR25 Class3, ISO13766

Specifications subject to change without notice.
