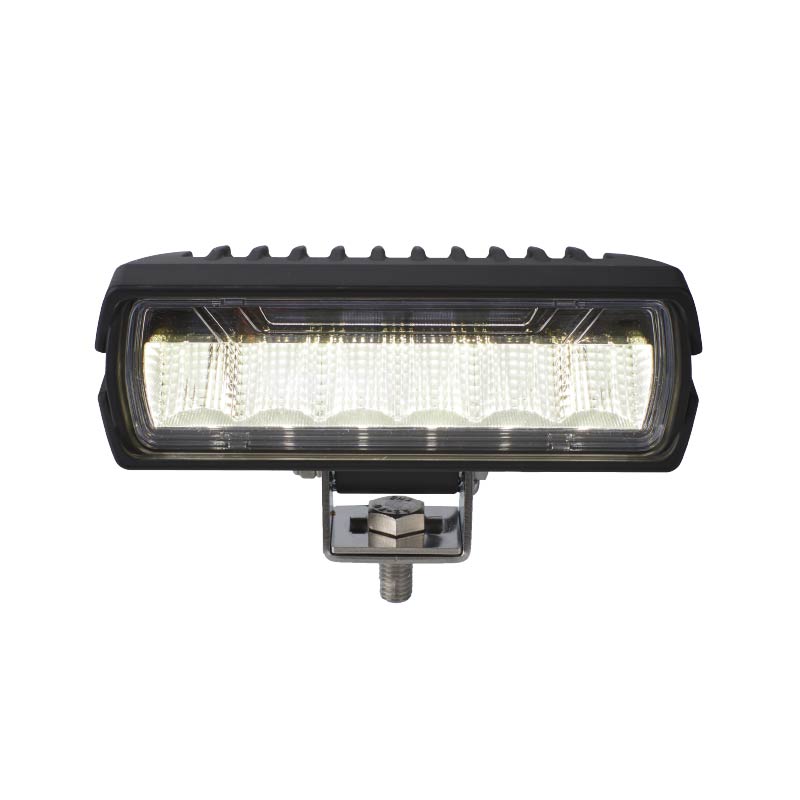

C2-3028A Low Profile Heavy Duty Rectangular LED Worklight
The C2-3028A is a low profile heavy duty rectangular LED work light designed for harsh environments. It features an aluminium housing and a polycarbonate lens operating within a voltage range of 10-33VDC. It consumes 27W of power providing an effective 1900lm long distance narrow and uniform illumination ensuring reliable lighting with low energy usage and is completely adjustable for maximum visibility. The light is designed to withstand harsh conditions and has IP68/IP69K rating for protection against dust and water, and offers excellent 10G shock resistance. Approved under ECE R10, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light, greatly improving visibility in low-light conditions. This work light is ideal for use in agricultural and construction vehicles. A narrow beam option is available.
10 – 33V DC
Ultra wide Flood Beam
4200lm
27W
IP68/IP69K
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power consumption
|
LED Colour Temperature
|
Raw Lumen Output
|
Effective Lumen Output
|
Beam Type
|
Ingress Protection
|
Shock resistance
|
EMC
|
|---|---|---|---|---|---|---|---|---|---|
| C2-3028A1 | 10-33 VDC | 27W | 5700K | 4200lm | 1900lm | Ultra wide Flood 50m | IP68 / IP69K | 10G | ECE R10, ISO13766, CISPR25 Class3 |
| C2-3028A2 | 10-33 VDC | 27W | 5700K | 4200lm | 1900lm | Narrow beam ~ 345m | IP68 / IP69K | 10G | ECE R10, ISO13766, CISPR25 Class3 |
| Housing Shape | Rectangular |
| Beam Pattern | Ultra Flood |
| Raw Lumen Output | 4200lm |
| Effective Lumen Output | 1900lm |
| Colour Temperature | 5700K |
| Voltage | 10 - 33 VDC |
| Nominal Current at | 2.15A at 12V, 1.07A at 24V |
| Power Consumption: | 27 W |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 186 x 82.8 x 101.7 mm |
| Mounting Style | Single Bolt |
| Termination | Wire 300mm |
| EMC | ISO13766, CISPR25 CLASS3 |
| Approvals | ECE R10 |
Specifications subject to change without notice.
