C2-3026 LED Vehicle light combination
The C2-3026 series lamp comes equipped with two beam patterns to suit different working requirements. Option A offers a flood beam with a 41m down to 1 Lux range for wide area illumination while option B offers a narrow / high beam with 484m down to 1 Lux range for long distance visibility. The C2-3026 models feature an integrated position light to enhance vehicle safety and visibility in low light conditions. Both models are built using advanced LED technology to offer a reliable and efficient lighting performance and a rugged construction that meets ingress protection to IP68 & IP69K ensuring durability in the harshest working conditions. The lights function in temperatures from -30°C to +65°C and are approved under ECE R148 (ECE R149), Ideal for off-road, agricultural and construction vehicles.
10 – 33V
Flood Beam / High Beam
10450 lm
22W ~ 55W
IP68 / IP69
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Function
|
Lamp Power Consumption
|
Front Position Light Power Consumption
|
Nominal Current
|
Raw Lumen Output
|
Effective Lumen Outpt
|
Ingress Protection
|
Beam Pattern
|
Vibration
|
Termination
|
EMC
|
Approvals
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

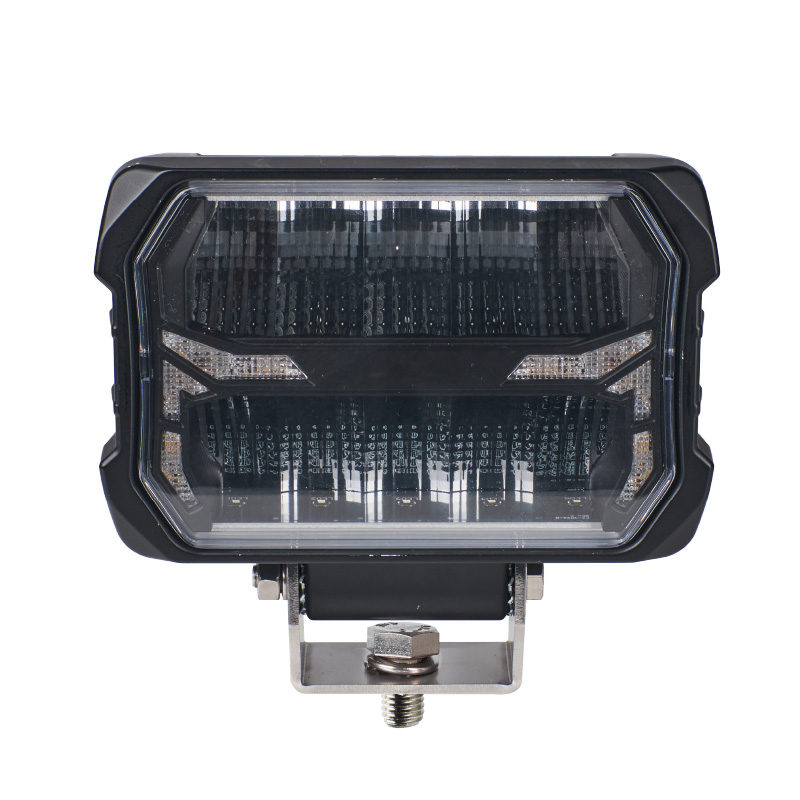

| C2-3026A | 10-30VDC | Work Lamp | 55W | 1W | 4.6A @ 12V / 2.3A @ 24V | 10,450lm | 2,500lm | IP68 / IP69 | Flood | 10G | 300mm triple wire | ECE R10, ISO13766, CISPR 25 class3 | ECE E4, R148, R149 |

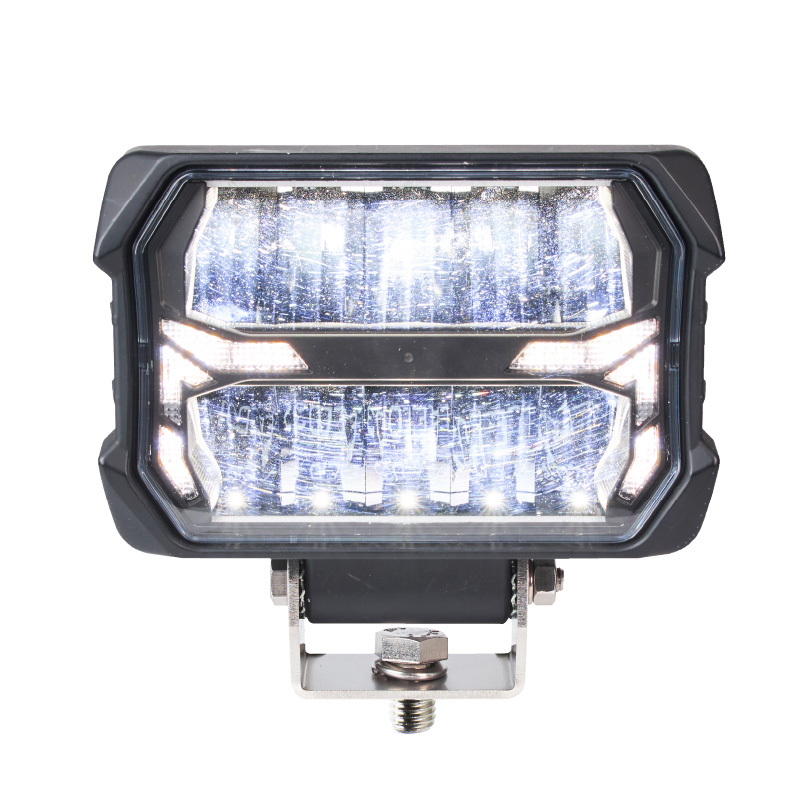

| C2-3026B | 10-30VDC | Driving Lamp | 22W | 1W | 1.8A @ 12V / 0.9A @ 24V | 10,450lm | 1,300lm | IP68 / IP69 | High | 10G | 300mm triple wire | ECE R10, ISO13766, CISPR 25 class3 | ECE E4, R148, R149 |
| Housing Shape | Rectangular |
| Beam Pattern | Flood / High beam |
| Raw Lumen Output | 10,450lm |
| Effective Lumen Output | 2500lm |
| Voltage | 10-33 VDC |
| Power Consumption | 22 ~ 55W |
| Front position lamp nominal Current | 12V @ 0.07A / 24V @ 0.04A |
| Operating Temp Range | -30°C...+65°C |
| Ingress Protection Rating | IP68 / IP69 |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 162x149x66mm |
| Mounting Style | Single Bolt M12x1.75 (x30mm) |
| EMC | ECE R10, ISO13766, CISPR 25 class 3 |
| Approvals | ECE R148 (ECE R149), ECE E4 |
| Vibration rating | 10G |
Specifications subject to change without notice.
