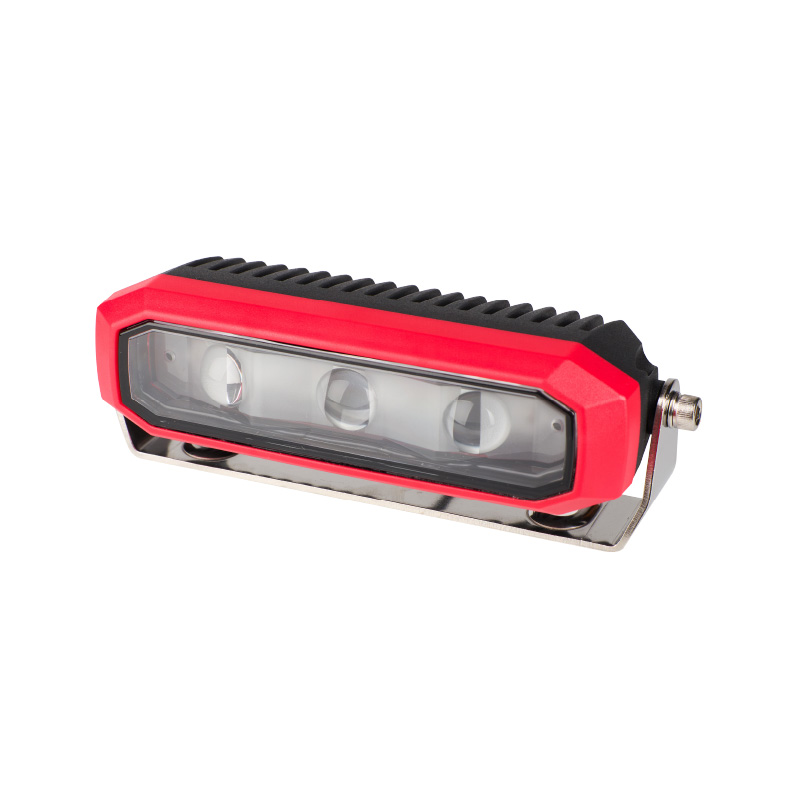

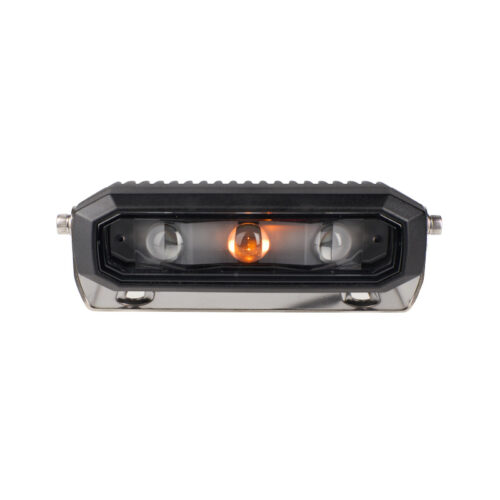

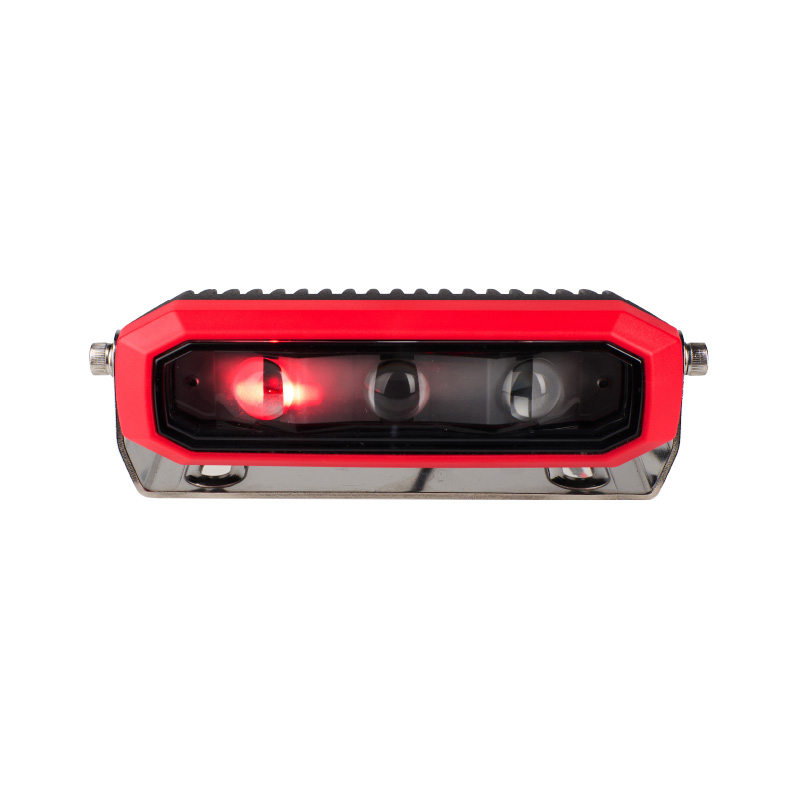

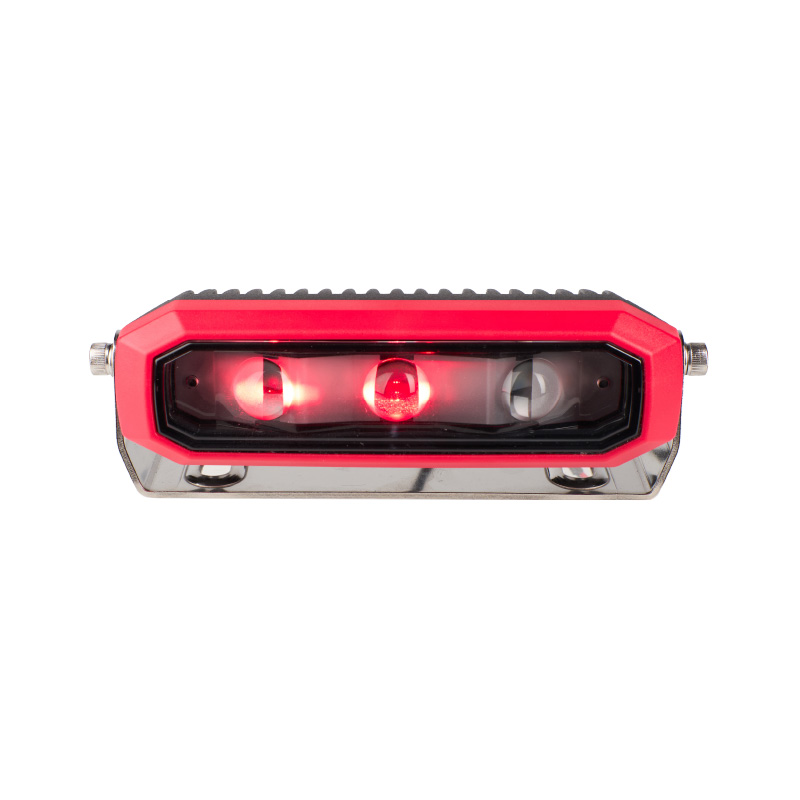

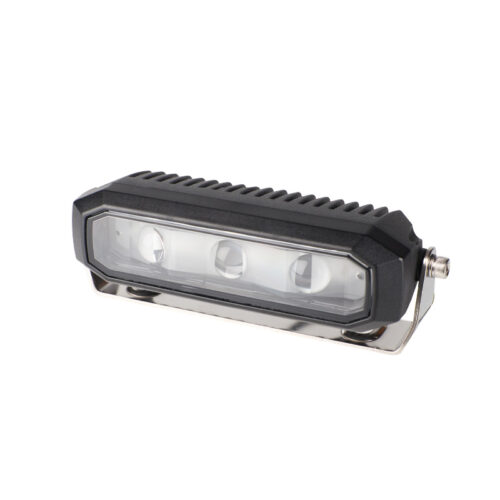

C2-3024 LED Safety Lamp
Safety Waring light
The C2-3024 series forklift safety lamp offers red arrow illumination to give a clear safety warning of its presence for pedestrians and other forklifts working in the vicinity. It is affixed to the vehicle using a two bolt trunnion and is adjustable to suit the needs of the working environment.
9 – 33VDC
Keep Out Zone
1030lm
24W
IP67 / IP69K
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
Lumen Output
|
Ingress Protection
|
Vibration rating
|
Housing Material
|
Lens material
|
EMC
|
Operating Temperature
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2-3024A | 9-33VDC | 24W | 1030lm | IP67 / IP69K | 10G | Aluminium | Polycarbonate | ECE R10, ISO13766 | -30°C~+65°C | |
| C2-3024B | 9-33VDC | 20W | 673lm | IP67 / IP69K | 10G | Aluminium | Polycarbonate | ECE R10, ISO13766 | -30°C~+65°C |
| Housing Shape | Rectangular |
| Beam Type | Red Arrow design |
| Lumen Output | 1030lm |
| Colour Temperature | 625 nm |
| Beam Distance | see datasheet |
| Voltage | 9-33 VDC |
| Power Consumption | 24W |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 182 x 60 x 61 mm |
| Mounting Style | Double bolt trunnion |
| Termination | 300mm wire |
| Ingress Protection Rating | IP67 / IP69K |
| EMC | EN50498, ECE R10 |
| Shock Resistance | 10G |
| Approvals | - |
Specifications subject to change without notice.
